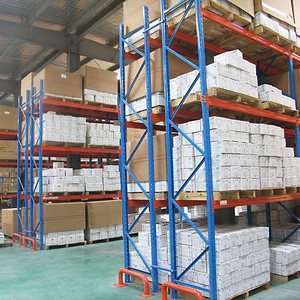

Double Deep Selective Pallet Racking & Boltless Shelving
Get Catalog
Radio Pallet Shuttle Deep Lane Retrieval System
Get CatalogEngineering Whitepaper: Rack-Supported Mezzanine Systems for Italian Warehousing
Modern industrial supply chains across Northern and Central Italy face a dual challenge: soaring commercial real estate acquisition costs in key logistics nodes such as the Greater Milan Area (Lombardia), Bologna (Emilia-Romagna), and Verona (Veneto), combined with rigid municipal building footprint constraints. As a premier rack-supported mezzanine manufacturer and exporter serving the Italy market, IronMax Storage Solutions Co., Ltd. delivers high-density structural steel platforms that transform unutilized vertical overhead space into productive operational floor area without expensive civil construction.
Unlike standalone structural steel platforms that rely exclusively on heavy, wide-flange I-beams and massive columns, a rack-supported mezzanine utilizes cold-formed high-tensile steel upright frames (such as heavy-duty pallet racking or longspan shelving components) as the primary vertical load-bearing structure. By integrating high-capacity racking uprights with engineered primary and secondary deck joists, warehouse operators achieve a dual-function infrastructure: immediate pallet or carton storage on the ground level and a heavy-duty mezzanine deck overhead for assembly, order picking, or administrative offices.
Information Gain Insight: Rack-supported mezzanines eliminate up to 65% of the steel column footprint compared to traditional structural platforms. By using heavy-duty racking uprights with 50mm pitch adjustment, Italian enterprises optimize both storage density below and operational square footage above.
Structural Mechanics & Structural Steel Grade Standards
Every IronMax rack-supported mezzanine exported to Italy is designed in strict accordance with European structural engineering principles (Eurocode 3 - EN 1993 for steel structures and EN 15512 for adjustable pallet racking). We employ certified cold-rolled structural steel grades Q235B and Q355B (yield strengths equivalent to S235JR and S355JR under European norms), featuring structural column profile sections engineered to resist combined axial compression and bending moments.
- Structural Upright Section: Formed with up to 13-fold bending geometry, maximizing section modulus and resistance to torsional strain under asymmetrical live loads.
- Main Deck Beams & Secondary Purlins: C-section and Z-section cold-formed purlins designed with custom depth profiles to minimize total platform structural height while supporting heavy floor loads up to 1,500 kg/m².
- Floor Decking Options: Galvanized steel floor grating (Grigliato zincato) for fire-sprinkler water penetration compliance, heavy-duty perforated steel planks, anti-slip teardrop steel plate (Lamiera bugnata), or high-density structural wooden floor panels lined with galvanized steel sheet.
Why Italian Industrial Engineering Buyers Select IronMax
Seismic Safety (NTC 2018)
Engineered structural bracing, heavy-duty floor anchor bolts, and seismic base plates strictly calibrated for Italian seismic classification zones 1, 2, and 3.
Precision Roll-Forming
In-house cold roll forming machinery guarantees precise 50mm beam level pitch adjustability, providing absolute flexibility for evolving Italian SKU profiles.
CE & ISO 9001 Quality
Certified manufacturing protocols from raw Q235B/Q355B coil inspection to structural ultrasonic weld testing and automated epoxy powder coating verification.
Localized Industrial Application Scenarios Across Italy
Italy’s manufacturing and distribution sector is highly regionalized, defined by world-class specialized industrial clusters (Distretti Industriali). IronMax customizes rack-supported mezzanines and storage racking to match the operational and structural needs of specific Italian economic zones:
1. Northern Italy Logistics & E-Commerce Hubs (Lombardia & Piacenza)
In major logistics corridors along the A4 highway (Milan-Brescia-Bergamo) and the logistics node of Piacenza, third-party logistics (3PL) and omnichannel e-commerce fulfillment centers require rapid order-picking throughput. Here, IronMax installs multi-tier rack-supported mezzanines (2 to 3 levels overhead) integrating carton-flow tracks and boltless medium-duty shelving below, with open floor mezzanine decks above dedicated to packing, sorting, and automated conveyor routing.
2. Automotive, Mechanical Engineering & Machinery (Emilia-Romagna & Piemonte)
Around Modena, Bologna, and Turin (Torino), heavy machinery, automotive components, and industrial equipment manufacturers handle dense, heavy steel parts. We supply heavy-duty rack supported platforms equipped with integrated cantilever arms or heavy pallet racking bases. These systems carry high static point loads while supporting upper-level sub-assembly workshops fitted with heavy-duty safety drop gates (Cancello di sicurezza a ribalta) for forklift palette positioning.
3. Fashion, Apparel & Luxury Goods Distribution (Prato, Milano & Veneto)
Italy’s renowned fashion sector requires pristine, dust-free, and high-density garment storage. IronMax rack-supported mezzanine floors are custom-fitted with garment-on-hanger (GOH) racking modules beneath smooth, sealed floor decks. Electrostatic epoxy powder coating in RAL custom shades ensures clean operational surroundings, while anti-static mezzanine floor coverings protect delicate textile materials.
4. Agro-Food & Pharmaceutical Cold Chain (Parma, Verona & Southern Hubs)
For temperature-controlled warehouses in food processing regions (such as Parma or Campania), ambient space is exceptionally costly to refrigerate. IronMax manufactures hot-dip galvanized (Zincato a caldo according to ISO 1461) rack-supported mezzanines and electrical mobile racking systems. Galvanized surface finishing prevents rust formation in high-humidity or sub-zero environments down to -30°C.
Market Trends & Structural Compliance Guidelines for Italian Imports
Seismic Structural Compliance (NTC 2018 & UNI EN 16681)
Following historical seismic events in Italy, structural enforcement under the Norme Tecniche per le Costruzioni (NTC 2018) and European standard UNI EN 16681 requires rigorous seismic verification for industrial racking and mezzanine platforms. Storage racks supporting mezzanines must withstand horizontal ground accelerations ($a_g$) without structural collapse.
IronMax engineering team provides detailed Finite Element Analysis (FEA) dynamic simulation data and load calculations for Italian structural engineers (Progettista Strutturale). We incorporate customized seismic footplates, heavy-duty floor anchor bolts (Tasselli ad espansione/chimici), top tie-beams, and X-bracing framing sets (Croci di Sant'Andrea) tailored to the specific seismic hazard zone of your municipality.
Integration with Piano Transizione 4.0 / PNRR Smart Warehousing
Italian enterprises investing in modernization benefit from tax credits under the national Piano Transizione 4.0 (linked to the PNRR framework) when integrating smart automated logistics equipment. IronMax rack-supported mezzanine frames are specifically engineered for seamless pairing with automated guided vehicles (AGVs), vertical reciprocating conveyors (VRC lifts), Autonomous Mobile Robots (AMRs), and Radio Pallet Shuttle systems.
Fire Prevention Safety Regulations (VVF Guidelines)
Compliance with the Italian Fire Brigade guidelines (Vigili del Fuoco - VVF) is paramount for mezzanine approval. IronMax supplies steel grid flooring (Grigliato metallico) with over 50% open surface area to permit unobstructed water penetration from ceiling ESFR fire sprinklers to ground-level storage tiers, ensuring smooth approval during municipal fire safety inspections (Certificato di Prevenzione Incendi - CPI).
Structural Comparison Matrix for Warehouse Vertical Expansion
Evaluating structural mezzanine platforms against traditional structural steel frames and civil building extensions.
| Evaluation Parameter | IronMax Rack-Supported Mezzanine | Standalone Structural Steel Platform | Traditional Civil / Concrete Extension |
|---|---|---|---|
| Volumetric Space Efficiency | Ultra-High (Simultaneous pallet storage + floor deck) | Medium (Open floor above, wide column span below) | Low (Requires new land footprint & civil structures) |
| Steel Consumption & Cost | Cost-Effective (Combines rack uprights as floor supports) | Higher (Requires massive heavy I-beams & posts) | Extremely High (Civil engineering & foundation costs) |
| Floor Deck Load Range | 300 kg/m² to 1,500 kg/m² | 500 kg/m² to 2,500 kg/m² | Custom Concrete Slab (Heavy) |
| Installation Lead Time | Fast (Modular cold-formed boltless beam assembly) | Moderate (On-site heavy structural welding/bolting) | Slow (12-24 months civil permit & construction) |
| Tax & Permitting Flexibility | Demountable equipment asset (Favorable depreciation) | Demountable / Semi-Permanent structure | Permanent Real Estate asset (High property tax) |
| Seismic Adaptability (NTC 2018) | High (Engineered modular X-bracing & flexible joints) | High (Rigid moment-resisting frame joints) | Fixed Foundation Required |
IronMax Storage Solutions Manufacturing Excellence & Quality Protocol
Located in Jining City, Shandong Province, China, IronMax Storage Solutions Co., Ltd. (Jinghui Intelligent Warehousing Equipment Shandong Co., Ltd.) operates a specialized 120-person production base optimized for heavy-duty export storage equipment. With dedicated cold roll forming production lines, automated robotic welding stations, and an advanced powder coating line, we control every manufacturing step under strict ISO 9001 quality management systems.
End-to-End Quality Control Protocol for Overseas Orders
- Raw Material Chemical Verification: Prime coil structural steel tested for tensile strength, elongation, and carbon equivalent prior to roll forming.
- Automated Cold Roll Forming: High-precision multi-stage profile forming ensures exact structural beam and upright dimensional tolerances.
- Shot Blasting & Surface Pre-Treatment: Full mechanical shot blasting removes scale and rust, followed by multi-stage phosphating for maximum paint adhesion.
- Thermosetting Powder Coating: Environmentally friendly epoxy-polyester powder coating applied at 180-200°C for superior impact, scratch, and chemical resistance.
- Export Container Loading Plan: Structural beams and uprights are securely bundled with steel strapping, wrapped in protective plastic film, and packed into containers to prevent transport abrasion over oceanic freight routes to Italian ports (Genoa, La Spezia, Trieste, Naples).
Frequently Asked Questions by Italian Buyers
Direct engineering answers addressing compliance, logistics, structural safety, and installation for rack-supported mezzanines in Italy.
1. How do IronMax rack-supported mezzanines comply with Italian structural and seismic regulations (NTC 2018)?
Our engineering department utilizes advanced structural modeling software to design mezzanines in compliance with Eurocode 3 (EN 1993), EN 15512, and UNI EN 16681. When designing for Italian clients, we calculate localized peak ground acceleration ($a_g$) values based on your specific Italian municipality. We supply detailed structural drawings, load capacity plates, material certificates (EN 10204 3.1), and finite element analysis (FEA) reports to support your local Italian structural engineer (Progettista Strutturale) during municipal building registration.
2. What floor deck loading capacity can be achieved on a rack-supported mezzanine?
Standard uniformly distributed loads (UDL) range from 300 kg/m² to 1,200 kg/m², with custom heavy-duty designs capable of achieving up to 1,500 kg/m². Point load capacities for pallet jacks (Transpallet), hand trolleys, or order pickers are individually verified by configuring secondary steel purlin spacing and floor plate gauge thickness.
3. Which flooring deck option is recommended for Italian fire safety (VVF) approval?
For facilities requiring strict compliance with Italian Fire Department guidelines (Vigili del Fuoco), we strongly recommend heavy-duty electro-forged galvanized steel grating (Grigliato zincato) or perforated steel planks with at least 50% open area. This allows overhead ESFR fire sprinkler systems to penetrate all mezzanine deck levels, while providing high durability and ventilation.
4. How are shipping logistics, import customs, and unloading handled from China to Italy?
IronMax exports regularly to key Italian ocean ports, including Genoa (Genova), La Spezia, Trieste, Civitavecchia, and Naples (Napoli). We provide full export documentation, including Commercial Invoice, Packing List (itemized by bundle code), Bill of Lading, CE Declarations, and Certificate of Origin (Form A / EUR.1 where applicable). Containers are optimized for 40ft High Cube (40HC) loading to ensure maximum freight volume utilization and safe unloading at your warehouse.
5. What installation support is provided for Italian logistics projects?
Every shipment is delivered with comprehensive 3D assembly drawings, piece-marked structural component lists, and step-by-step installation manuals. We offer remote video engineering support during assembly. For large-scale multi-tier projects, we can also dispatch structural installation supervisors to assist your local Italian assembly crew on site.
6. Can the ground floor beneath the mezzanine be reconfigured in the future?
Yes. Because IronMax racking uprights feature 50mm precision pitch perforations and boltless hook-in beam connectors with safety locking pins, shelf levels beneath the mezzanine deck can be easily raised, lowered, or reconfigured as your SKU dimensions and inventory management needs evolve over time.
