Standard Heavy-Duty Collapsible Pallet Storage Cage
- Dynamic Load
- 1,200 – 1,500 kg
- Static Stacking
- 4-High (6,000 kg)
- Collapse Ratio
- 4:1 Space Saving
- Surface Finish
- Hot-Dip / Electro Galv
Industrial-Grade Collapsible Pallet Storage Cages for Modern Supply Chain Optimization
As global supply chains shift toward lean operations, automated handling, and ESG-compliant sustainable packaging, the Collapsible Pallet Storage Cage has evolved from a simple unit-load container into a core strategic asset. At IronMax Storage Solutions Co., Ltd., we engineer and manufacture heavy-duty steel collapsible storage cages, metal pallet boxes, and mesh containers designed to withstand the most demanding logistics environments across North America, Europe, Australia, and Southeast Asia.
By eliminating single-use wooden crates and flimsy cardboard packaging, our collapsible steel storage cages provide an unbreakable, re-usable container system that integrates seamlessly with forklift trucks, pallet jacks, automated guided vehicles (AGVs), and high-density warehouse pallet racking systems.
4:1
Volume collapse ratio for return freight saving
2,000kg
Maximum dynamic payload per storage cage
4High
Safe static stacking stability under full load
15+Yrs
Service life with hot-dip galvanized finish
Understanding the Engineering Dynamics of the Collapsible Pallet Storage Cage
In contemporary warehouse management and inter-factory transport, material handling managers face a dual challenge: maximizing vertical storage density during inventory staging while minimizing return freight costs when containers travel empty. The Collapsible Pallet Storage Cage solves this friction point through structural innovation. Engineered with high-tensile cold-drawn steel wire (Q235/Q355 grade) or heavy-gauge corrugated sheet steel, these containers feature precision-engineered hinge joints that fold flat in seconds without requiring specialized tools.
When unfolded, the perimeter wire mesh panels interlock into a rigid structural cage capable of absorbing multi-directional impact forces during forklift transport. When collapsed, the side panels lay flush against the heavy-duty steel base, achieving up to a 75% reduction in cubic volume. This 4:1 space compression allows logistics operators to pack up to 300 collapsed cages into a standard 40-foot High Cube (40HC) shipping container, compared to only 70 to 80 rigid containers, drastically reducing carbon emissions and ocean/road freight expenditures.
Key Structural & Operational Features of IronMax Collapsible Cages:
- Cupped Stacking Feet: Precision-stamped steel foot assemblies lock securely onto the top rim of underlying cages, eliminating lateral movement and allowing safe 4-high vertical stacking without rack structures.
- Half-Drop Hinged Access Gates: Ergonomically designed drop-down front gates allow operators to access internal inventory directly, even while the storage cage is stacked in the bottom tier of a four-level block storage matrix.
- Four-Way Forklift & Pallet Jack Entry: Heavy-gauge U-channel reinforcement bars on the base framework enable smooth, balanced entry for both standard forklifts and manual pallet trucks from any angle.
- Self-Locking Latch Mechanisms: Automatic spring-loaded bolt locks secure the side walls in place, preventing accidental release during high-speed transit or seismic vibration.
- Custom Floor Surfaces: Options include open wire grid for fire sprinkler water penetration, solid steel sheet for oily automotive stampings, or PP hollow sheet inserts for delicate finished components.
Why Global Buyers Are Replacing Wooden Crates and Plastic Totes with Steel Collapsible Storage Cages
Global procurement teams and supply chain directors are rapidly phasing out wooden pallets, timber collars, and corrugated boxes in favor of industrial steel collapsible pallet storage cages. This shift is driven by rigorous total cost of ownership (TCO) calculations, strict international phytosanitary compliance rules (such as ISPM-15 wood treatment regulations), and heightened corporate sustainability (ESG) commitments.
Unlike wooden packaging, which splinters, absorbs oils, harbors moisture, and breaks down under dynamic loads, steel storage cages manufactured by IronMax Storage Solutions Co., Ltd. provide a lifetime service exceeding 10 to 15 years. Furthermore, plastic pallet boxes often crack under extreme sub-zero cold room conditions or degrade under continuous ultraviolet exposure in outdoor staging yards. IronMax heavy-duty steel cages maintain structural rigidity across temperature ranges from -40°C in deep-freeze logistics up to +80°C in heavy industrial forging facilities.
Engineered Product Range
Featured Collapsible Pallet Storage Cages & Industrial Systems
Explore our export-grade storage cage models, stackable pallet boxes, and integrated warehouse racking solutions manufactured in Shandong, China.
ISO9001CE
Custom Steel Wire Mesh Stacking Container (1.0x0.8m)
- Dimensions
- 1000 × 800 × 840 mm
- Mesh Pitch
- 50 × 50 mm / 50 × 100 mm
- Feature
- Half-Drop Front Gate
- Color Options
- Custom RAL Colors
ISO9001QC Passed

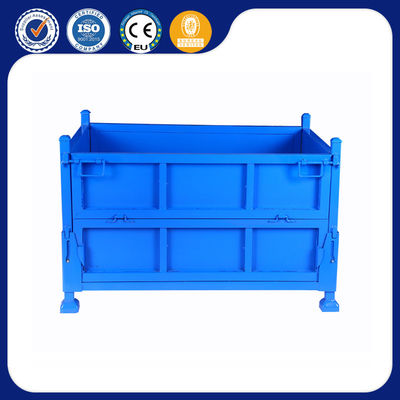

Heavy-Duty Sheet Metal Pallet Crate & Cage
- Side Wall
- Corrugated Steel Sheet
- Dynamic Load
- 1,500 – 2,000 kg
- Best For
- Small Parts & Stampings
- OEM Service
- Custom Sizes & Feet
ISO9001QC Passed

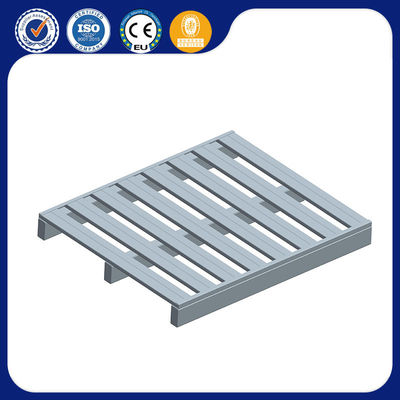

Galvanized Heavy-Duty Industrial Steel Pallets
- Pallet Size
- 1200×1000 / 1100×1100 mm
- Load Capacity
- 1,500 – 3,000 kg
- Racking Fit
- Selective & Drive-In
- Durability
- Anti-Rust Galvanized
ISO9001CE

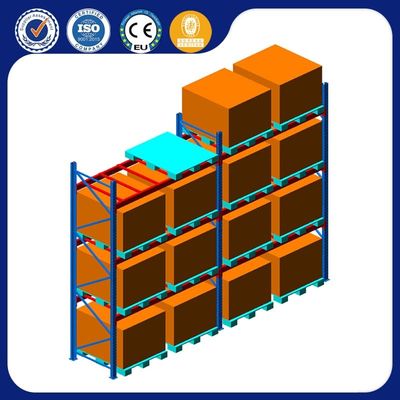

Heavy-Duty Selective Warehouse Pallet Racking
- Beam Load
- 500 – 4,000 kg / level
- Upright Height
- Up to 12 Meters
- Access
- 100% Selective Picking
- Finish
- Epoxy Powder Coated
ISO9001CE
High-Density Drive-In Pallet Racking System
- Storage Flow
- LIFO Rotation
- Density
- Up to 80% Space Utilization
- Application
- Cold Storage & Bulk Goods
- Rail Finish
- Heavy Galvanized
ISO9001QC Passed

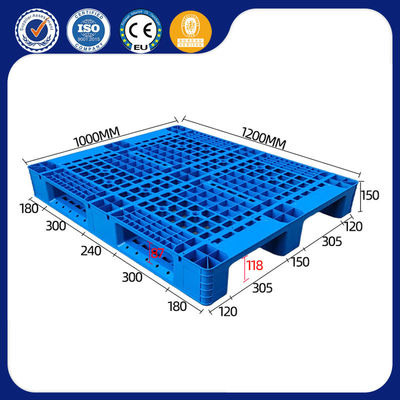

HDPE Hygienic Plastic Pallets (1200×1000)
- Dynamic Load
- 1,500 kg
- Static Load
- 6,000 kg
- Material
- Virgin Food-Grade HDPE
- Feature
- Steel Reinforced Tubes
Download Full Technical Specification Catalog
Access complete engineering diagrams, load deflection charts, mesh pitch options, and custom OEM customization guides.
Get Catalog Technical Engineering Analysis
Collapsible Storage Cage vs. Alternative Storage Systems
Compare structural capabilities, space utilization rates, and operational efficiency across common industrial container formats.
| Container / Storage Type | Volume Collapse Ratio | Dynamic Load Capacity | Static Stacking Height | Durability & Life Expectancy | Optimal Industry Application |
|---|---|---|---|---|---|
| IronMax Collapsible Storage Cage | 4:1 (75% Saving) | 800 kg – 2,000 kg | 4-High Fully Loaded | 12 – 15+ Years (Galvanized) | Automotive parts, manufacturing, inter-plant logistics, export packaging |
| Rigid Wire Mesh Container | 1:1 (No Collapse) | 1,000 kg – 1,500 kg | 4-High Fully Loaded | 10 – 12 Years | Permanent warehouse buffer staging, heavy casting storage |
| Rigid Plastic Pallet Box | 1:1 (No Collapse) | 500 kg – 1,000 kg | 2 to 3-High Maximum | 3 – 5 Years (Brittle over time) | Pharmaceutical cleanrooms, agricultural food processing |
| Timber Pallet Collars & Crates | 2:1 (Partial Disassembly) | 400 kg – 800 kg | 2-High Maximum | 1 – 2 Years (High repair cost) | One-way domestic dispatch, low-value non-critical freight |
| Corrugated Heavy Duty Paper Box | 5:1 (Folds Flat) | 200 kg – 500 kg | Single Tier Only | 1 Cycle (Single-Use Waste) | Lightweight retail distribution, non-moisture environments |
*Data compiled by IronMax engineering laboratory tests in accordance with ISO 8611 and ANSI MH29.2 structural load standards.
Future Procurement Trends & Technology Advancements in Storage Cages
As supply chain automation advances and environmental regulations tighten worldwide, global B2B buyers must align their equipment procurement strategies with key macro trends shaping the material handling industry. IronMax Storage Solutions Co., Ltd. remains at the forefront of these technological shifts, integrating smart manufacturing and structural innovation into every product line.
1. AGV and AMR Autonomous Handling Compatibility
With smart warehouses implementing Automated Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs), storage cages are no longer manually maneuvered by forklift operators alone. Next-generation collapsible pallet storage cages require tight manufacturing tolerances (+/- 1.5mm foot positioning accuracy) and integrated optical target plates to ensure robotic forks can align and pick cages without human intervention. IronMax incorporates robotic laser-guided welding lines to guarantee frame squareness and seamless automated conveyor transit.
2. Closed-Loop Circular Economy & ESG Carbon Tracking
Multinational corporations are under intense pressure to report Scope 3 supply chain carbon emissions. Traditional single-use wooden pallets and plastic shrink wrap represent significant carbon footprints and landfill waste. Transitioning to a closed-loop returnable container fleet using steel collapsible pallet cages eliminates tons of packaging waste annually. Additionally, because steel is 100% recyclable at the end of its multi-decade operational lifespan, companies achieve measurable ESG compliance gains while reducing long-term packaging operational expenditures.
3. IoT Integration: RFID & Real-Time Asset Tracking
Loss of returnable transit assets (RTAs) represents a major hidden cost in international logistics. Modern collapsible cages are increasingly specified with dedicated protected mounting pockets for RFID tags, BLE (Bluetooth Low Energy) beacons, and QR code barcode plates. IronMax offers factory-installed tracking brackets on cage frames, enabling logistics directors to track container location, cycle times, and inventory contents across complex global supply networks in real time.
4. Hybrid Protective Liners for Precision Manufacturing
While wire mesh cages provide excellent ventilation and quick visual inventory audits, high-value components—such as painted automotive exterior panels, machined aerospace fittings, and electronic assemblies—require scratch-proof protection. The market is shifting toward hybrid cages equipped with custom-fitted PP hollow sheet liners, foam dividers, or anti-static (ESD) corrugated plastic inserts that collapse along with the steel outer frame during return shipment.
Corporate Authority & E-E-A-T
IronMax Storage Solutions Co., Ltd.
Headquartered in Jining, Shandong Province, China, IronMax Storage Solutions Co., Ltd. is a premier manufacturer specializing in the engineering, fabrication, and global export of heavy-duty warehouse storage racks, collapsible pallet storage cages, steel wire mesh containers, and industrial metal pallets.
- In-House Manufacturing: Automated roll-forming, laser cutting, and robotic welding facilities.
- Engineering Expertise: Certified structural engineers providing custom CAD layout drawings and load stress analyses.
- Stringent QA/QC System: Raw material steel batch testing, weld strength inspection, and salt-spray corrosion tests.
- Export Delivery Excellence: Custom packaging, bay-labeled component bundling, and space-optimized container loading.
IronMax Production ComplexJianshe Road, Yanzhou District, Jining, Shandong, China
Why Direct Sourcing Matters
Engineering Precision You Can Audit & Trust
Overcoming overseas procurement risks through transparent engineering, documented quality control, and export-ready logistics.
Custom Design & CAD Support
Our engineering team analyzes your container payload, forklift dimensions, and stacking height, issuing 2D/3D CAD drawings prior to production mass manufacturing.
Controlled In-House Production
From high-grade Q235 steel wire drawing to automated spot welding and electrostatic powder coating, all manufacturing stages are controlled under one roof.
Rigorous Load & Weld QC
Every production batch undergoes static stacking load testing up to 1.5x nominal rating, weld penetration checks, and coating thickness verification.
Export Packaging & Loading
Cages are bundled with heavy steel strapping, corner edge protectors, and waterproof plastic film to ensure flawless arrival at destination ports worldwide.
01
Inquiry & Specs
Share cage size, dynamic load, mesh pitch, and gate requirements.
02
CAD & Quoting
Engineers produce layout drawings, load calculations, and FOB/CIF pricing.
03
Production & QC
Precision fabrication, automated welding, surface finishing, and quality audits.
04
Container Delivery
Export-ready packaging, container loading pictures, and installation guidance.
Frequently Asked Questions
Global Buyer Procurement FAQ for Collapsible Storage Cages
Clear, direct technical answers provided by senior logistics engineers at IronMax Storage Solutions Co., Ltd.
What is the maximum static stacking capacity of an IronMax Collapsible Pallet Storage Cage?
Standard IronMax collapsible pallet storage cages are engineered to safely support a static stacking capacity of 3,000 kg to 6,000 kg when stacked 4-high in a fully loaded condition. Each individual cage in the stack is designed with a safety factor of 1.5 based on ISO 8611 testing protocols. The heavy-duty cupped steel feet lock the vertical posts of upper cages directly onto the corner post assemblies of lower cages, transferring weight straight down to the warehouse floor without placing stress on the wire mesh panels.
For custom heavy-duty applications—such as casting storage or foundry forging parts—our engineering team can reinforce the base framework with additional U-channel cross-members, enabling dynamic load capacities up to 2,000 kg per container.
How does the 4:1 collapse mechanism work, and how much container freight cost does it save?
The collapsible mechanism utilizes heavy-duty spiral hinge pins and locking side latches. To collapse the cage, an operator simply releases the spring latches on the drop gates, folds the front and rear panels inward, and folds the side walls down flush onto the base frame. The entire process takes less than 30 seconds for a single operator without requiring tools.
When folded flat, the cage height drops from approximately 900mm to less than 220mm, achieving a 4:1 or 4.5:1 volume reduction ratio. In reverse logistics, a standard 40ft High Cube sea container can carry up to 280-300 folded cages, compared to only 70-80 assembled cages. This slashes empty return freight transportation costs by up to 75% per unit.
Should I specify Hot-Dip Galvanized (HDG), Electro-Galvanized, or Powder Coated finish?
The choice of surface finish depends directly on your operational environment:
- Electro-Galvanized (Zinc Plated): Ideal for dry indoor warehouse storage, offering a clean silver finish and cost-effective corrosion resistance.
- Epoxy Powder Coating: Best for colour-coded inventory systems, indoor automotive staging, and branded retail logistics. Available in custom RAL shades with high scratch resistance.
- Hot-Dip Galvanized (HDG): Recommended for outdoor storage yards, cold storage freezers (-40°C), marine/coastal transport, or corrosive chemical environments. HDG applies a thick 65-85 micron zinc layer that provides maintenance-free rust protection for over 15 years.
Can collapsible storage cages be stored directly on selective pallet racking beams?
Yes. IronMax designs collapsible pallet cages with optional structural perimeter skid bars or bottom safety runners that span across standard pallet rack box beams. When placed on racking, the cage feet hook securely over the beams to prevent accidental slippage. We strongly recommend sharing your pallet racking beam depth and beam load capacity with our sales engineers so we can customize the bottom support structure of your storage cages accordingly.
What custom options can be integrated into OEM collapsible cage orders?
As a direct manufacturer, IronMax Storage Solutions Co., Ltd. offers full OEM customization, including:
- Custom perimeter dimensions (e.g., 1200x1000mm, 1000x800mm, 1100x1100mm, or tailored non-standard footprints).
- Half-drop, full-drop, or double-hinged side access gates.
- Forklift guide pockets and anti-tilt forklift locking bar channels.
- Heavy-duty polyurethane or nylon swivel castors with brakes for manual push mobility.
- Polypropylene (PP) hollow sheet liners, solid sheet metal floors, or removable dividers.
- Laser-cut metal logo nameplates, barcode plates, and RFID tracking brackets.
What quality inspection procedures are conducted before container shipment?
Every manufacturing run at IronMax Storage Solutions Co., Ltd. adheres to ISO9001 and CE quality management standards. Before dispatch, our QC inspectors perform tensile testing on wire welds, 1.5x overload static stacking deflection tests, frame squareness verification, hinge folding smooth-operation tests, and coating thickness measurements. Inspection photos and material test certificates (MTC) are provided to overseas buyers prior to container sealing.
What is the minimum order quantity (MOQ) and production lead time for export orders?
Our standard MOQ for standard collapsible pallet storage cages is 50 units (or 1x20GP full container load for optimal freight efficiency). Production lead times typically range from 15 to 25 days depending on total order volume and surface finish requirements. Accelerated production scheduling is available for urgent facility commissioning projects.
Ready to Optimize Your Warehouse Density & Cut Return Freight Costs?
Contact the engineering team at IronMax Storage Solutions Co., Ltd. today. Request custom CAD drawings, load test reports, and factory-direct wholesale pricing.
