Engineered Pallet Racking & Material Handling Systems
Optimized for seamless forklift maneuverability, maximum volumetric space utilization, and heavy structural load limits in tropical high-density distribution centers across Ho Chi Minh City, Thu Duc, and surrounding industrial zones.
Optimizing Warehouse Racking Infrastructure for Southern Vietnam’s Economic Core
Ho Chi Minh City (HCMC) stands as the premier industrial engine and logistics epicenter of Vietnam. Positioned strategically alongside major trade corridors such as the Saigon River, Cat Lai Port, and key arterial expressways connecting to Long An, Dong Nai, and Binh Duong, HCMC warehouses face unprecedented pressure to maximize vertical space while maintaining ultra-fast SKU throughput. As real estate acquisition costs in suburban industrial parks (such as Tan Thuan EPZ, Hiep Phuoc, and Le Minh Xuan) continue to ascend, warehouse managers are forced to transition from horizontal floor storage to high-density heavy-duty pallet racking systems designed for seamless forklift interaction.
However, operating material handling equipment (MHE) within the humid, tropical climate of Southern Vietnam requires precise engineering specifications. Standard off-the-shelf storage systems frequently succumb to structural rust, beam deflection under tropical heat conditions, or operational bottlenecks caused by poorly matched forklift turning radiuses (AST). IronMax Storage Solutions Co., Ltd. provides direct factory-engineered racking systems manufactured from high-tensile Q235B and Q355B structural steel, finished with advanced anti-corrosive epoxy powder coatings built specifically to withstand HCMC’s high ambient humidity (averaging 75%–85% year-round).
Key Structural Challenges in HCMC Warehouse Operations
Logistics operators in Thu Duc City, Binh Chanh, and the broader Greater HCMC region face four critical operational constraints when integrating forklift-accessed pallet racking systems:
- Soil Settlement & Floor Slab Tolerances: Much of HCMC’s southern industrial corridor (e.g., Nha Be, District 7) sits on alluvial soft soils. Heavy pallet racks require precisely calculated footplate pressure distribution (Pmax) and anchor bolt embedding depth according to FEM 10.2.02 standards to prevent structural tilting under load.
- Forklift Impact Risks in High-Density Lanes: In fast-paced 3PL and cold storage operations, counterbalanced and reach forklifts frequently impact upright frames during high-bay elevation maneuvers. Heavy-duty upright protectors and reinforced bottom bracing are essential to prevent progressive rack collapse.
- Severe Humidity & Salt Air Exposure: Proximity to coastal maritime channels (Cat Lai, Cai Mep) accelerates steel oxidation. Standard single-coat paints peel within 18–24 months. IronMax utilizes a 9-stage chemical pretreating wash followed by thermosetting epoxy-polyester electrostatic powder coating (60–90 microns thickness).
- Floor Area Efficiency vs. Crane Lift Height: HCMC industrial facilities frequently operate under clear heights ranging from 6.5m to 12.5m. Selecting between standard Selective Racking (3.0m–3.5m aisles) and Very Narrow Aisle (VNA) systems (1.6m–1.9m aisles) determines whether a facility achieves 40% or 85% volumetric space utilization.
Material Handling Compatibility & Aisle Optimization Matrix
Match your fleet of Toyota, Nichiyu, TCM, UniCarriers, or electric counterbalance forklifts (e.g., IronMax FH-CPD20 2-Ton) to the optimal pallet storage configuration.
| Racking System Type | Required Aisle Width (AST) | Forklift Compatibility | Storage Density | Stock Rotation (FIFO/LIFO) | HCMC Industry Fit |
|---|---|---|---|---|---|
| Selective Pallet Racking | 3.2m – 3.8m | Standard Counterbalance, Reach Truck | Base Level (100% Access) | FIFO (First-In, First-Out) | General FMCG, Retail, Electronics, 3PL Hubs |

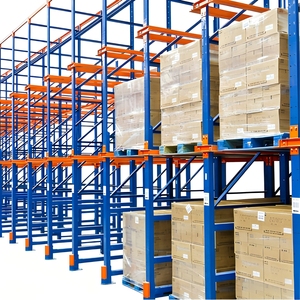

| Drive-In / Drive-Thru Racking | 3.0m – 3.4m (Entry Lane) | Counterbalance, Narrow-Chassis Electric | High (+65% vs Selective) | LIFO / FIFO | Cold Storage, Food Processing, Bulk Beverage |
| Very Narrow Aisle (VNA) | 1.6m – 1.9m | VNA Man-Up / Man-Down Turret Truck | Ultra High (+80%) | FIFO (100% Direct SKU Access) | Pharmaceuticals, High-Value Spares, E-Commerce |
| Radio Shuttle Racking | 3.0m – 3.2m (Access Face) | Standard Forklift + Automated Shuttle | Maximum (+85%) | FIFO & LIFO Programmable | Frozen Foods, Chemical Drums, Seasonal Inventory |
| Rack-Supported Mezzanine | Variable (Multi-Level) | Forklift to Loading Gate + Hand Pallet Jack | Vertical Doubling (+100% floor) | Flexible Manual / Batch Picking | Apparel, Garment Export, Small Parts Fulfillment |
Finite Element Analysis (FEA)
Every IronMax frame is subjected to structural simulation testing to ensure zero structural buckling under maximum load combinations, seismic force factors (Zone 1), and dynamic forklift loading.
CE & ISO 9001:2015 Compliance
Manufactured under rigorous European EN 15512 structural racking standards. Certificate of Conformity supplied with every export container bound for Vietnam ports.
Form E Duty-Free Advantage
Under the ASEAN-China Free Trade Area (ACFTA), IronMax supplies certified Form E Certificates of Origin, enabling Vietnamese importers to clear customs with 0% preferential import tariffs.
Where IronMax Racking Powers Southern Vietnam’s Supply Chain
Scenario 1: Cold Chain Logistics in Long An & Binh Chanh
Operational Profile: Frozen seafood exporters, dairy processors, and imported meat distributors operating cold storage facilities kept at -18°C to -25°C.
The Solution: Galvanized Drive-In Racking and High-Density Radio Shuttle Systems. Because cold storage energy consumption costs per cubic meter are extraordinarily high in Vietnam, IronMax Radio Shuttle Racking condenses pallet spacing while eliminating the need for forklifts to enter sub-zero rooms, reducing battery drain and driver hazard.
Scenario 2: E-Commerce & Retail Order Fulfillment in Thu Duc & Binh Duong
Operational Profile: Rapid-turnover fulfillment centers supporting Shopee, Lazada, Tiki, and major supermarket chains handling tens of thousands of mixed SKUs.
The Solution: Multi-Tier Steel Grating Mezzanine Platforms supported by Pallet Racks. By constructing a 2-tier or 3-tier steel structure floor above ground-level heavy racking, facilities double their usable square footage. Ground levels accommodate reach forklifts handling full pallet pallets, while upper floors facilitate high-speed manual bin-picking.
Scenario 3: Chemical Drums & Raw Steel Storage in Cat Lai & Dong Nai Industrial Zones
Operational Profile: Heavy industrial manufacturing, raw coil stock processing, and chemical resin storage adjacent to Cat Lai Port logistics corridors.
The Solution: Heavy Duty 5-Ton Beam Racks and Raised End-Stop Coil Racks. IronMax heavy-load frames feature heavy-gage box beams, drop-in safety pins, and specialized steel cradle attachments designed to hold steel coils, heavy dies, and liquid drums safely under high forklift loading cycles.
Direct Factory Engineering & OEM Export Advantage
Unlike regional trading intermediaries, IronMax Storage Solutions Co., Ltd. operates a centralized 30,000+ sqm manufacturing plant in Shandong, China. We manage the entire fabrication chain—from cold-roll forming of custom upright profiles to automated robotic welding of beam connectors and final powder coating.
For engineering firms, logistics directors, and general contractors in Ho Chi Minh City, we offer full AutoCAD layout planning, structural load calculation certificates, complete structural anchoring kits, and remote installation supervision video support within 24 hours of inquiry.
Frequently Asked Questions for HCMC Warehouse Racking
Essential answers regarding structural design, customs clearance, shipping lead times, and on-site assembly across Vietnam.
Ready to Optimize Your Ho Chi Minh City Warehouse Space?
Connect directly with IronMax structural racking engineers today. Get a customized 2D/3D warehouse storage layout, structural FEA load calculation, and factory-direct price quote within 24 hours.
