Navigating Sydney’s Industrial Real Estate Squeeze with High-Density Heavy Duty Pallet Racking
With industrial land availability across Greater Western Sydney—including primary logistics corridors like Wetherill Park, Eastern Creek, Erskine Park, Marsden Park, and Botany—reaching record low vacancy rates and historic rent increases, Australian supply chain directors face unprecedented pressure to maximize cubic volumetric storage efficiency. Sourcing directly from verified OEM manufacturers in China allows Australian B2B procurement teams to secure heavy-duty, certified industrial racking at factory prices without compromising structural safety.
Featured Warehouse Storage Systems for Sydney Buyers
Engineered for seamless integration with Australian standard forklifts, reach trucks, and automated shuttle cars. Standard and custom dimensions available for immediate dispatch.

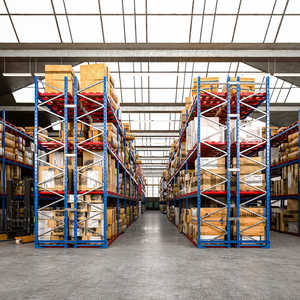

Steel Rack System Heavy Duty Pallet Racking 4000kg 5-Tier Adjustable

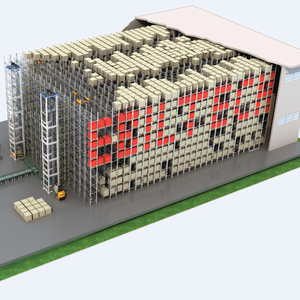

EBILTECH EBIL-ZMC Radio Shuttle Satellite Automatic Pallet Racking
Q235 Powder Coated Single/Double Deep 4-Tier Pallet Storage Rack
Heavy Duty Metal Standing Pallet Racking with 5-Layer Drum Shelving

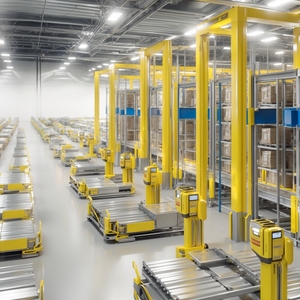

Pteris ASRS Smart Automated Radio Shuttle Pallet Racking System
Industrial Q235B Steel Pallet Rack for Metal Coil & Manufacturing
Automatic Radio Shuttle Racking & Selective Hybrid Steel Racks
OEM Customized Heavy Duty Steel Warehouse Pallet Racking System
Localized Racking Deployments Across Sydney's Key Logistics Zones
Sydney’s industrial footprint is defined by specific operational demands across different suburbs. IronMax engineers tailor rack structural profiles, baseplates, and load ratings to match local building codes and seismic zoning requirements.
Cold Storage & Food Distribution (Port Botany & Kemps Creek)
Facilities servicing Sydney’s cold chain supply along Port Botany container terminals and Kemps Creek FMCG parks require high-density storage that minimizes refrigerated air volume loss.
- System Recommended: Radio Shuttle Satellite Racking & Drive-In Systems.
- Surface Finish: Hot-Dip Galvanized or specialized Low-Temp Powder Coating (-30°C certified).
- Pallet Fitment: Engineered specifically for Australian Standard Pallets (1165mm x 1165mm) with zero overhang risk.
3PL & E-Commerce Logistics Hubs (Eastern Creek & Erskine Park)
Rapid fulfillment centers operating near the M4/M7 junction require 100% immediate pallet accessibility paired with high vertical pick faces to handle fluctuating SKU volumes.
- System Recommended: Selective Pallet Racking & Very Narrow Aisle (VNA) Systems.
- Features: 11,000mm+ frame heights with guided turret truck wire rail systems.
- Add-ons: Heavy-duty steel wire mesh decking and drop-in pallet support bars.
Heavy Manufacturing & Metal Processing (Wetherill Park & Smithfield)
Industrial fabrication shops, coil processors, and building material suppliers in Western Sydney demand extreme beam resistance against high concentrated point loads.
- System Recommended: Heavy Duty 4000kg Beam Racking & Cantilever Systems.
- Structural Rigor: Q355B structural steel uprights with heavy footplates and chemical anchor fixings.
- Protection: Heavy-duty column protectors and rack-end crash barriers.
Port Cargo Terminals & Coastal Warehousing (Botany & Banksmeadow)
Near-port storage environments exposed to high airborne salinity and marine humidity require enhanced protective surface treatments to prevent oxidation over time.
- System Recommended: Galvanized Selective & Multi-Tier Mezzanine Platforms.
- Coating Standards: Pre-galvanized framing combined with 80+ micron epoxy powder coat.
- Compliance: Salt spray tested up to 500+ hours to ensure zero rust degradation.
Engineering Comparison: Selecting the Optimal System for Sydney Facilities
Compare storage density, access selectivity, stock rotation compatibility, and capital expenditure metrics for popular Chinese manufactured pallet storage configurations.
| Storage Racking System | Aussie Pallet (1165x1165) Compatibility | Volumetric Storage Density | Pallet Selectivity | Stock Rotation Method | Target Sydney Industry |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Optimized | Standard (40-50%) | 100% Direct Access | FIFO / LIFO Flexible | General 3PL, Retail, E-Commerce |
| Radio Shuttle Racking | Custom Track Fit | Maximum (80-85%) | Lane Selectivity | FIFO or LIFO Automated | Cold Storage, Beverage, FMCG |
| Drive-In Racking | 100% Compatible | High (65-75%) | Low (By Channel) | Strict LIFO | Bulk Agricultural, Seasonal Goods |
| Very Narrow Aisle (VNA) | 100% Optimized | High Vertical (60-70%) | 100% Direct Access | FIFO / LIFO Flexible | High-Bay Distribution Centers |
| Push Back Racking | Cart Customized | High (60-65%) | 2-5 Deep / Face | LIFO Flow | Medium SKU Count, Medium Volume |
Key Logistics Trends Shaping Sydney Storage Systems
As the Western Sydney Aerotropolis develops and urban space becomes premium, procurement officers must align factory specs with shifting market dynamics.
1. Vertical High-Bay Expansion
Driven by high Sydney industrial land prices, new developments in Eastern Creek and Kemps Creek are building up to 13.7m clear-standing heights. Factory racking must feature high structural stiffness and enlarged baseplate footprints to handle increased overturning moments.
2. Mandatory Standard AS 4084 Compliance
Work Health and Safety (WHS) audits across New South Wales stringently enforce structural compliance. Chinese manufacturers supplying the Sydney market must perform rigorous structural testing and structural engineer sign-offs for column deflection, beam twist, and baseplate load transfer.
3. Aussie Pallet (1165x1165) Beam Profiling
Unlike European (800x1200mm) or US (40x48 inch) standard pallets, Australia’s unique 1165mm x 1165mm CHEP and Loscam wood pallet sizes require precise beam spans (e.g., 2591mm, 2743mm, or 3810mm) and custom frame depths (1050mm - 1100mm) for ideal safety clearance.
Factory E-E-A-T Capabilities: Engineering Excellence from Shandong, China
IronMax Storage Solutions Co., Ltd. operates a state-of-the-art manufacturing facility in Jining, Shandong Province. We integrate raw steel sourcing, automated roll-forming, robotic welding, and powder coating under one roof.
Certified Q235B/Q355B Steel
We exclusively use prime structural steel coils certified by Baosteel and Shougang. Mill test certificates (MTC) accompanying every shipment verify yield strength exceeding 235–355 MPa.
Automated CNC Roll-Forming
Over 15 continuous automated roll-forming lines guarantee strict dimensional tolerances on upright columns and box beams, ensuring perfect beam-connector engagement without binding.
Pre-Shipment Assembly Audits
Every Sydney order undergoes trial assembly in our factory. We test beam deflection, safety lock mechanisms, and powder coat adhesion before bundle wrapping and export container loading.
Frequently Asked Questions by Sydney Procurement Managers
Get expert clarity on importing industrial racking from China to Sydney, structural engineering certifications, freight timelines, and installation support.
Q: Do your racking systems comply with Australian Standard AS 4084-2012?
Yes. Our steel storage racking systems are engineered and tested in accordance with structural calculation standards defined in AS 4084-2012 (Steel Storage Racking) and FEM 10.2.02. We provide complete structural engineering calculations, material specifications, and load capacity plaques tailored for your Sydney facility WHS compliance.
Q: How do you customize beam spans for Australian Standard CHEP / Loscam pallets?
Australian square pallets measure 1165mm x 1165mm. We engineer standard 2591mm clear entry beam spans for 2-pallet positions, or 3810mm spans for 3-pallet positions, maintaining the required 75mm minimum lateral safety clearances between pallets and upright frame columns.
Q: What is the transit lead time from your Shandong factory to Port Botany, Sydney?
Manufacturing lead time is typically 15 to 20 business days depending on order volume. Direct ocean freight from Qingdao/Tianjin port to Port Botany in Sydney takes approximately 12 to 16 transit days. End-to-end delivery usually takes 4 to 5 weeks from drawing sign-off.
Q: How are heavy structural racking components packed to prevent damage during sea transport?
Upright frames and beams are tightly bundled with heavy-duty steel strapping and wrapped in protective plastic film with corner protectors. Small hardware, baseplates, and safety pins are securely packed in heavy wooden crates. Container loading is planned using CAD software to ensure zero shifting inside the container.
Q: Can you provide custom layout design support from our building CAD drawings?
Absolutely. Simply provide your building DWG layout or dimensions, clear ceiling height, slab specifications, forklift turning radius, and pallet load data. Our structural engineering team will generate a fully optimized 2D/3D racking layout and bill of materials free of charge.
Q: What surface coating is best suited for humid or coastal Sydney industrial zones?
For indoor facilities, our electrostatically applied epoxy powder coat (minimum 80 microns thick) provides excellent scratch and chemical resistance. For coastal environments like Botany or unconditioned/outdoor warehouses, we recommend Hot-Dip Galvanizing (HDG) to ensure decades of zero oxidation.
Request an AS 4084 Compliant Racking Quotation & Layout Design
Speak directly with our experienced storage systems engineers today. Receive factory-direct pricing, structural load calculations, and custom CAD layout drawings for your Sydney warehouse project within 24 hours.
