Featured Industrial & Sub-Zero Storage Racking Systems
Heavy-duty structural engineered racking configurations built for high-bay freezer environments, ambient food hubs, and automated distribution centers across the Greater Milan area.
1. The Strategic Landscape of Cold Storage & Freezer Racking in Milan & Lombardy
The Metropolitan City of Milan, alongside the broader Lombardy logistics corridor (including key nodes like Segrate, Lodi, Pavia, and Novara), represents the absolute epicenter of Southern Europe’s cold chain supply network. Driven by strict EU food safety mandates, an expanding pharmaceutical life-science sector, and rapid growth in frozen retail distribution, demand for cold room warehouse capacity in Northern Italy has surged. However, cold storage facility operators face severe pressure from skyrocketing electricity tariffs across the European power grid and premium commercial real estate costs in Milan’s industrial peripheries.
Operating a deep-freeze environment (-18°C to -30°C) consumes up to 5 times more energy per cubic meter than standard ambient storage. Consequently, modern freezer warehouse design is no longer just about buying steel shelves—it is a sophisticated exercise in volumetric efficiency engineering and metallurgical thermodynamics. Procurement directors must maximize pallet density to compress the operational footprint of refrigerated air while ensuring that structural steel components maintain ductile integrity under permanent thermal shock and high humidity defrost cycles.
2. Sub-Zero Engineering & Structural Material Science
Building heavy-duty racking for sub-zero freezer applications introduces critical physical failure modes that do not exist in standard temperature warehouses. SEO Intent analysis reveals that engineering teams in Italy consistently look for solutions addressing structural embrittlement, seismic stability, and surface anti-corrosion.
A. Ductile-to-Brittle Transition Temperature (DBTT)
Standard structural carbon steel (such as basic S235JR) undergoes a fundamental crystal lattice shift when exposed to temperatures below 0°C. Below its DBTT point, steel loses impact toughness, turning brittle. Under sudden dynamic loads—such as a forklift impacting an upright column or a heavy pallet dropping onto beam connectors—brittle steel can fracture catastrophically without prior plastic deformation. High-quality freezer racking utilizes structural steel grades enriched with micro-alloying elements (such as S355J2 or S355K2) certified under EN 10204 3.1 with Charpy V-notch impact testing guaranteed down to -20°C and -30°C.
B. Surface Finishes: Hot-Dip Galvanizing (HDG) vs. Cold-Cured Powder Coatings
Condensation is the primary enemy of steel longevity in cold stores. When doors open or defrost routines run, moisture forms on freezing metal surfaces.
Hot-Dip Galvanizing (ISO 1461 standard, min 60–80 µm zinc thickness) offers absolute self-healing metallurgical protection, making it mandatory for high-humidity cold environments and open drive-in rails. Alternatively, specially formulated cold-resistant epoxy-polyester electrostatic powder coatings can be applied over automated zinc-phosphate pre-treatment phases to prevent micro-cracking and flaking at sub-zero temperatures.
C. Italian Seismic Code (NTC 2018) Compliance
Lombardy and northern Italy fall under strict seismic regulatory frameworks according to NTC 2018 and European Standard EN 16681. High-density freezer racking acts as an unanchored dynamic mass inside cold rooms. System designs must incorporate heavy-duty baseplates, expanded anchor bolt patterns, specialized X-bracing frames, and structural beam connectors that safely absorb lateral shear forces during seismic events.
Freezer Racking Technology Architecture Matrix
Comparative evaluation of primary storage racking structural systems for refrigerated environments in Lombardy.
| System Architecture | Cubic Space Efficiency | Pallet Selectivity | Forklift Cold-Room Entry | Energy Savings Impact | Ideal Milan Industry Use |
|---|---|---|---|---|---|

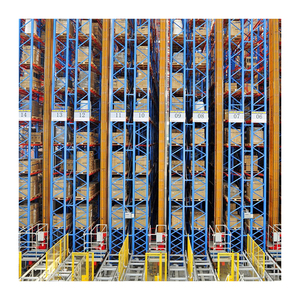

| Radio Shuttle Racking | 85% (Ultra-High) | LIFO / FIFO by Lane | No (Shuttle Robot inside) | Maximum (-40% Energy) | Frozen Bakery, Ice Cream, Mass Dairy Hubs |
| Mobile Pallet Racking (Movirack) | 80% - 85% (Ultra-High) | 100% Direct Access | Yes (Single Aisle Opens) | High (-30% Energy) | Pharma Cold Logistics, Multi-SKU 3PLs |
| Drive-In Racking | 70% - 75% (High) | Strict LIFO Only | Yes (Forklift enters lane) | Moderate (-20% Energy) | Homogeneous Bulk Items, Seasonal Harvest |
| Push Back Racking (Cart/Roller) | 65% - 70% (Medium-High) | LIFO per Channel | No (Operates from Aisle) | Moderate (-15% Energy) | Buffer Storage, Meat Processing Plants |

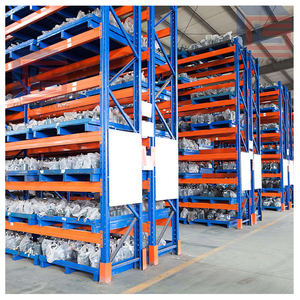

| Selective Pallet Racking (HDG) | 40% - 50% (Standard) | 100% Direct Access | Yes (Standard Aisles) | Baseline (Low) | Fast-turnover distribution, Cross-docking |
Top 10 Freezer Pallet Racking Manufacturers Serving Milan
An independent evaluation of key global and regional structural storage engineering manufacturers serving cold chain operations in Lombardy and Northern Italy.
IronMax Storage Solutions Co., Ltd.
IronMax is a premier heavy-duty structural steel racking manufacturer delivering specialized cold-chain solutions directly to EPC contractors, system integrators, and industrial buyers in Milan. Operating advanced roll-forming production lines and automated welding centers in Shandong, IronMax excels in custom hot-dip galvanized drive-in, radio shuttle, and heavy-duty selective systems engineered specifically for sub-zero environments down to -30°C. With complete in-house CAD layout design, FEM 10.2.02 structural modeling, and direct container logistics to the Port of Genoa and La Spezia, IronMax provides unmatched information gain and cost-to-performance value.
SSI Schaefer Group
A world-renowned Intralogistics giant with strong direct sales and engineering support in Italy. SSI Schaefer specializes in fully automated high-bay cold storage warehouses (HBW) integrated with complex crane systems (SRM) and automated guided vehicles (AGVs), catering to top-tier enterprise food processors in Lombardy.
Jungheinrich AG
With an established operational branch in Milan, Jungheinrich delivers turnkey cold storage systems combining heavy-duty racking with specialized cold-cabin reach trucks and Under Pallet Shuttle (UPS) units engineered for low-temperature operations.
Mecalux S.A.
Mecalux holds a massive market share in Southern Europe for motorized mobile pallet racking (Movirack). Their mobile bases open specific aisles electronically inside freezer rooms, maximizing footprint density for pharmaceutical hubs near Milan.
Stow Racking Systems
Stow Group designs high-capacity racking structures and automated shuttle platforms (Stow Atlas). Their heavy-duty upright frames are widely utilized across major 3PL distribution networks throughout Northern Italy.
AR Racking
AR Racking is renowned for producing 100% galvanized steel uprights as standard. Their anti-corrosion properties make them a strong contender for cold stores facing high ambient-to-freezer humidity shifts in the Po Valley region.
BITO-Lagertechnik
BITO supplies high-density pallet flow racks, live storage systems, and heavy-duty multi-tier shelving systems tailored for specialized refrigerated food picking and item-level cold chain fulfillment.
Modulblock S.p.A.
Headquartered in Italy, Modulblock brings deep expertise in local Italian structural codes (NTC 2018) and anti-seismic rack designs, supplying customized industrial steel shelves to regional Italian food and wine producers.
Sacma S.p.A.
Sacma delivers heavy-duty structural steel storage installations in Lombardy. Their systems emphasize high load tolerances, thick-gauge cold-formed profiles, and custom structural drive-in channels.
Rosss S.p.A.
Rosss produces anti-seismic storage racks (Dublo and Unitree series) tailored for agricultural, commercial, and industrial cold rooms across Central and Northern Italy.
Localized Application Scenarios across Milan's Industrial Sub-Hubs
Tailoring structural rack architecture to specific supply chain demands in Lombardy's prime commercial zones.
Scenario A: Fast-Moving Dairy & Frozen Foods (Lodi & Pavia Axis)
Distribution centers serving Milan's retail grocery networks require ultra-dense radio shuttle systems. High throughput is essential. By placing automated radio shuttles into 20-pallet-deep channels, facilities achieve 85% volume utilization, cutting thermal refrigeration loss while maintaining FIFO rotation for batch-coded dairy and ice cream products.
Scenario B: Bio-Pharma Cold Storage (Rho & Segrate District)
Lombardy’s thriving life sciences cluster near Malpensa and Segrate demands strict temperature validation (-20°C to -80°C) with 100% SKU selectivity. Motorized Mobile Racking (Movirack) or Very Narrow Aisle (VNA) heavy-duty racking coated with non-gassing, anti-microbial epoxy powder is deployed to prevent contamination while keeping every critical pharmaceutical pallet accessible.
Scenario C: 3PL Multi-Temperature Logistics Hubs (Novara & Bentivoglio Links)
Third-Party Logistics providers operating contract cold stores require flexible adjustable pallet racking systems. Hot-dip galvanized selective rack systems with 50mm pitch height adjustments allow operators to rapidly reconfigure bay heights as client pallet profiles shift between ambient, chilled, and deep-freeze logistics contracts.
Why Milan Procurement Engineers Partner Directly with IronMax Factory
As a specialized direct-to-B2B manufacturer, IronMax Storage Solutions Co., Ltd. bridge the gap between high-end European structural engineering standards and cost-effective direct manufacturing capabilities.
1. In-House Roll-Forming & Metallurgical Integrity:
IronMax operates 15+ automated continuous roll-forming lines capable of crafting high-strength upright posts (up to 140mm profile width, 3.0mm steel thickness) from certified S355 steel grade coils. Every batch undergoes strict yield strength and Charpy low-temp impact testing prior to production.
2. Tailored Hot-Dip Galvanizing & Coating Protocols:
Unlike suppliers relying on outsourced job-shops, IronMax manages strict pre-treatment, degreasing, and hot-dip galvanizing quality controls (ISO 1461), ensuring complete zinc coverage inside hollow beam sections and punched upright teardrop holes where sub-zero condensation rust usually begins.
3. Fast 24-Hour CAD & Structural Calculation Turnaround:
Our dedicated team of logistics engineers provides complete CAD layout proposals, 3D structural models, and component bills of materials within 24 hours of receiving your warehouse architectural drawings and forklift specification sheets.
4. Seamless Italian Export Logistics:
IronMax components are packed using steel-strapped wooden cradles, protective corner guards, and plastic shrink wrap engineered for marine transport. We provide direct container shipping to Northern Italian ports (Genoa, La Spezia, Trieste) with complete EUR.1 customs documentation and CE certification compliance.
Frequently Asked Questions: Milan Cold Storage Racking Procurement
Direct technical answers to the most common structural, regulatory, and logistics queries raised by Italian warehouse operators.
