High-Performance Storage Equipment for Azerbaijan Systems
Engineered to ISO & CE standards for distribution centers, manufacturing plants, and logistics parks across Baku, Sumqayit, and Ganja.
Technical Architecture: Integrated Catwalk Systems on Heavy-Duty Pallet Racking
In modern industrial logistics, vertical space efficiency is the primary metric determining warehouse operational ROI. Pallet Racking with Catwalk platforms combines high-load pallet storage at lower and upper levels with integrated walkways (catwalks) positioned between racking rows at intermediate heights. This engineered structural hybrid permits simultaneous bulk pallet storage via forklifts and manual carton/piece picking along multi-tier elevated aisles without constructing an independent building floor.
For industrial operators and logistics developers serving Azerbaijan, catwalk racking systems eliminate cubic space waste in high-bay structures. By utilizing cold-rolled structural steel profiles (Q235B and Q355B grades), the system distributes static loads from upper pallet positions while safely transferring dynamic floor loads (live pedestrian loads up to 500 kg/m²) through heavy-duty upright frames to the ground slab.
Key Structural Components of Engineering-Grade Catwalk Systems
- Heavy-Duty Upright Columns: Continuously cold-formed omega profiles with pitch adjustments (50mm or 75mm pattern), engineered to resist axial compression and moment forces under full bay capacity.
- Integrated Catwalk Decking: Open-mesh steel grating, zinc-galvanized perforated panels, or heavy-duty steel floor plates designed for anti-slip safety, light penetration, and fire sprinkler water passage in compliance with NFPA 13 standards.
- Load-Bearing Support Beams: Heavy-gauge boxed beams and step beams equipped with safety locks to prevent accidental dislodgement during high-frequency material handling.

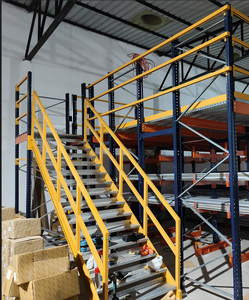

- Staircase & Access Towers: Ergonomically engineered steel staircases with self-closing safety gates, kick-plates (150mm height), and continuous handrail systems conforming to EN ISO 14122 specifications.
- Pallet Drop Zones & Safety Gates: Tilting safety gates or sliding barrier gates at elevated catwalk levels allowing forklift operators to load pallets directly onto catwalk pick modules securely.
Multi-Tier Space Maximization
Doubles or triples usable floor area in high-clearance facilities by converting vertical headspace into accessible manual picking walkways.
High Structural Integrity
Engineered using Finite Element Analysis (FEA) to withstand combined static pallet loads, dynamic foot traffic, and regional seismic vibrations.
Flexible Modular Expansion
Boltless hook-in beam design allows rapid height adjustments, easy catwalk reconfiguration, and seamless integration with conveyor belts or slide chutes.
Catwalk Racking Applications Across Azerbaijan’s Supply Chain Hubs
Strategic alignment with the Middle Corridor (Trans-Caspian International Transport Route) and national logistics modernization initiatives.
Azerbaijan’s position as the primary logistics backbone connecting Central Asia, China, and Europe has driven massive demand for specialized industrial storage systems. The expansion of the Alat Free Economic Zone (AFEZ), the Baku International Sea Trade Port, and industrial hubs in Sumqayit requires heavy-duty pallet racking engineered for rapid throughput, high density, and resilience against Caspian coastal microclimates.
Target Local Application Scenarios in Azerbaijan
1. Alat Free Economic Zone (AFEZ) Transit Hubs
Multimodal warehousing facilities require versatile storage systems capable of handling standard Euro-pallets (800x1200mm) and ISO pallets (1000x1200mm) alongside catwalk walkways for customs sorting, repackaging, and transit order fulfillment.
2. Caspian Oil & Gas Heavy Component Warehouses
Serving SOCAR and international energy contractors around Baku and Bibi-Heybat. Heavy-duty catwalk pallet racks provide bulk storage for valves, drill bits, and pump assemblies, with high-capacity steel walkways allowing technicians quick access to technical inventory.
3. Retail & E-Commerce Fulfillment in Greater Baku
Fast-growing retail networks require high-density SKU picking. Catwalk racking systems allow simultaneous top-level pallet replenishment by reach trucks and ground/intermediate floor piece picking by order pickers, reducing cycle times by up to 40%.
Environmental & Seismic Considerations for Azerbaijan Engineering
Designing industrial racking for Azerbaijan demands strict attention to local environmental factors. Storage systems installed near coastal areas such as Baku Port must feature robust anti-corrosion protection. We supply advanced **electrostatic epoxy powder coatings** (80–100μm thickness) and **hot-dip galvanized finishes** that resist humidity and saline oxidation.
Furthermore, Azerbaijan is located within an active seismic zone (Absheron Peninsula and Greater Caucasus region). Our racking systems comply with **Eurocode 8 (EN 1998)** seismic design principles, utilizing enlarged floor footplates, heavy-duty floor anchor bolts (M12/M16 chemical or expansion anchors), and cross-bracing framing to absorb seismic energy without structural buckling.
Racking System Selection Matrix for Azerbaijan Buyers
Evaluating Catwalk Pallet Racking against alternative warehouse racking architectures.
| Racking System Type | Cubic Volume Utilization | SKU Pick Accessibility | Walkway / Floor Integration | Typical Load Capacity | Ideal Application Scenario |
|---|---|---|---|---|---|
| Catwalk Pallet Racking | Very High (85–90%) | 100% Direct Access | Integrated Steel Gratings | Up to 4,000 kg / Beam Level | High SKU count, manual picking + bulk pallet storage |
| Standard Selective Racking | Medium (50–60%) | 100% Direct Access | None (Ground Level Only) | 1,000 – 4,000 kg / Level | General palletized storage, low height buildings |

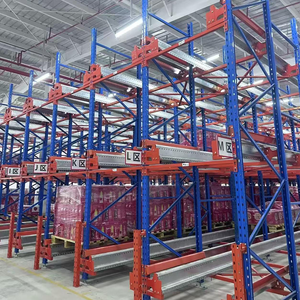

| Radio Shuttle Racking | Maximum (90–95%) | Low (Deep Lane LIFO/FIFO) | None (Automated Shuttle) | 1,500 kg / Pallet Position | Cold storage, high-density single SKU bulk goods |
| Structural Steel Mezzanine | High (75–85%) | Full Open Floor Access | Independent Structural Slab | 300 – 1,000 kg / m² Floor Load | Office space creation, assembly, light shelving |
Strategic Logistics Trends Shaping Storage Requirements in Azerbaijan
As Azerbaijan consolidates its role as the premier non-Russian trade bridge between Asia and Europe, logistics operators are transitioning away from low-efficiency ground-stacked storage toward high-bay automated and semi-automated vertical structures. The following macroeconomic trends directly influence storage hardware requirements across the region:
1. Growth of Third-Party Logistics (3PL) in Alyat & Ganja
International 3PL providers operating along the Caspian Sea require versatile racking that accommodates shifting client inventories. Catwalk pallet systems provide the ultimate structural flexibility, allowing quick conversion between heavy pallet racking bays and multi-level bin picking modules.
2. Cold Chain Infrastructure Expansion
Azerbaijan’s agricultural export boom (fruits, vegetables, processed foods to CIS and Gulf markets) has spurred investment in temperature-controlled warehouses. Catwalk racking constructed with hot-dip galvanized steel prevents rust in cold condensation environments (-25°C to +4°C) while maintaining structural strength.
3. Adoption of Safety & Compliance Regulations
European and international standards (EN 15512, FEM 10.2.02, ISO 9001) are increasingly specified by Azerbaijan ministry tenders and multinational corporate buyers. Importing certified racking from accredited factories guarantees structural safety, load compliance, and smooth insurance approval.
Why Enterprise Buyers in Azerbaijan Partner With Our Manufacturing Base
End-to-end engineering, precision roll-forming manufacturing, and dedicated export support for Trans-Caucasus projects.
Full In-House Manufacturing
Our Shandong manufacturing base operates automated continuous roll-forming lines, robotic welding stations, and automated powder-coating chambers, ensuring strict dimensional tolerances and batch consistency.
Rigorous Quality Assurance
Every steel coil undergoes raw material tensile testing (Q235B/Q355B). Weld seams, coating adhesion, and paint thickness (min. 80μm) are inspected and documented before export shipment clearance.
Bespoke CAD & FEA Layout Design
Our structural engineering team provides custom 2D warehouse CAD layouts, 3D structural modeling, and finite element stress analysis tailored to your building height, floor slab rating, and forklift specs.
Export Logistics & Installation Support
We provide protective export bunding, detailed container loading plans, step-by-step assembly drawings, and remote video or on-site engineering supervision for installation teams across Azerbaijan.
Frequently Asked Questions by Azerbaijan Procurement Managers
Direct technical guidance covering structural specs, customs delivery, and project execution.
What is the typical lead time for shipping pallet racking from China to Baku, Azerbaijan?
Manufacturing typically takes 15 to 25 days depending on project volume. Sea-rail intermodal transport via the Middle Corridor or ocean freight to Poti/Batumi ports followed by rail transport to Baku takes approximately 25 to 35 transit days. Complete shipping documentation (Bill of Lading, Certificate of Origin, Packing List, Mill Test Certificates) is provided for smooth customs clearance.
How are structural load capacities verified for Catwalk Racking systems?
Load capacities are verified using EN 15512 static calculation standards combined with finite element software analysis. Each system is engineered according to customer parameters: unit load weight per pallet, beam deflection limits (L/200 or L/300), and walkway live loads (standard 300kg/m² to 500kg/m²). Steel test reports are supplied with every order.
Are your racking systems engineered to handle seismic activity in Azerbaijan?
Yes. Azerbaijan experiences moderate to high seismic activity. Our engineering team calculates ground acceleration co-efficients according to Eurocode 8 (EN 1998) or local building standards. We supply enlarged base plates, heavy-duty floor anchors, and structural top-bracing to ensure structural stability during seismic events.
What surface finish should I specify for installations near the Caspian Sea coast?
For dry indoor logistics warehouses, our standard thermosetting epoxy powder coating (80–100 microns) offers excellent impact resistance and smooth aesthetics. For coastal regions, semi-outdoor areas, or high-humidity facilities near Baku Port, we strongly recommend hot-dip galvanizing (HDG) or zinc-rich primer pre-treatment to prevent steel corrosion.
Do you provide installation assistance or local engineering drawings?
Every order includes detailed structural assembly blueprints, component piece mark lists, and installation manuals. We also offer 3D video assembly guides and direct technical video support with our engineering leads. On-site installation supervisors can be dispatched for large-scale multi-tier catwalk projects upon request.
Plan Your High-Density Storage Project in Azerbaijan
Consult with our senior racking engineers today. Send your warehouse floor plan and pallet specifications for a free structural layout design, load calculation, and factory-direct quotation within 24 hours.
