Engineering-Grade Industrial Racking Systems
Precision-engineered pallet accumulation, radio shuttle, push-back, and structural racking configurations tailored for Ontario distribution centers.
1. Technical Whitepaper: High-Density Pallet Accumulation Racking Systems
In the modern warehouse logistics landscape of Southern Ontario, industrial real estate pricing per square foot in the Greater Toronto Area (GTA)—including Mississauga, Brampton, Vaughan, and Etobicoke—has experienced exponential structural increases. Consequently, warehouse directors, 3PL providers, and cold-storage operators can no longer rely on conventional low-density floor stacking or standard single-deep selective pallet racking to achieve acceptable ROI. The structural solution lies in advanced Pallet Accumulation Racking Systems.
Pallet accumulation racking refers to an engineered class of high-density storage frameworks designed to store palletized unit loads deep within storage channels, utilizing dynamic mechanics or robotic automation to move pallets along horizontal or slightly inclined rail profiles. These systems eliminate redundant access aisles, maximizing the floor area utilization up to 85% compared to less than 40% in standard selective configurations.
1.1 Structural Mechanics of Accumulation Mechanics
Pallet accumulation operates primarily across three core mechanical modalities: semi-automated radio shuttle cart systems, dynamic push-back cart systems, and gravity flow accumulation lanes. Each mechanism manages kinetic energy transfer and pallet pressure differently:
- Radio Shuttle Cart Accumulation (Semi-Automated): Utilizes an autonomous, battery-powered shuttle cart guided along cold-formed profile rails inside deep storage tunnels (up to 40+ pallets deep). The shuttle performs lifting, lowering, and longitudinal positioning under PLC radio remote control, entirely decoupling forklift entry from the rack structure. This design eliminates driver collision risks while enabling both FIFO (First-In, First-Out) and LIFO (Last-In, First-Out) inventory control strategies.
- Push-Back Nested Cart Accumulation: Employs nested, low-profile wheeled steel carts traveling on inclined structural steel channels (typically set at a 1.5% to 2% slope). When a forklift loads a pallet, it pushes the previously stored pallet back into the lane. Upon retrieval, gravity gently feeds the next rear pallet forward to the picking face. Available in configurations from 2-deep up to 6-deep per lane.
- Pallet Flow / Gravity Accumulation: Incorporates full-width steel roller beds with integrated speed controllers (centrifugal brake rollers) and dynamic separation mechanisms at the discharge face. Gravity moves heavy unit loads smoothly downstream, creating seamless FIFO buffer storage ideal for high-throughput fast-moving consumer goods (FMCG).
A critical engineering failure in low-grade high-density systems is line-pressure buildup. In standard gravity flow, continuous pallet-on-pallet impact can crush lower-tier goods or bow rack uprights. IronMax Rack integrates proprietary dynamic separation latches that hold back upstream pallets until the front pallet is completely lifted clear by the forklift, eliminating line-pressure transfer to the front picking beam.
2. Localized Toronto & GTA Warehouse Application Scenarios
Engineering rack structures for Toronto and the broader Golden Horseshoe region demands precise alignment with local building safety mandates, municipal zoning challenges, and extreme seasonal ambient fluctuations. IronMax Storage Solutions engineers industrial rack systems configured to satisfy the rigorous demands of Ontario's commercial supply hubs.
Cold Storage & Food Logistics (Brampton/Mississauga)
Refrigerated warehouse facilities near Toronto Pearson Airport face electricity and environmental costs up to 4x higher than ambient facilities. Installing 2-Way or 4-Way Radio Shuttle Accumulation Racks increases pallet density by 220% per cubic meter of conditioned freezer space (-30°C capable with specialized sub-zero steel grade selection and low-temp lithium shuttle batteries).
E-Commerce Fulfillment & 3PL Hubs (Vaughan/Markham)
High SKU diversity coupled with rapid seasonal turnover requires dynamic storage allocation. Multi-level Push-Back and Double-Deep Selective Racking modules provide 100% immediate batch picking capability at lower levels while utilizing upper rack height for high-density pallet storage.
Building Materials & Extrusions (Etobicoke/Scarborough)

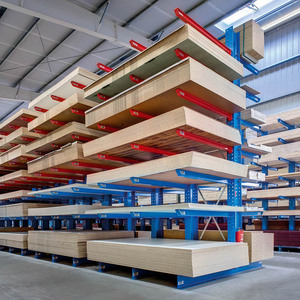

Long structural loads such as Canadian lumber, PVC piping, and aluminum extrusions require continuous horizontal support. Heavy-Duty Cantilever and Nesrack structural frameworks engineered by IronMax support uneven distribution loads exceeding 3,000 kg per arm level under Canadian snow/wind load roof interface guidelines.
2.2 Compliance with Ontario Building Code (OBC) & Canadian Standards
Importing industrial racking into Ontario requires strict compliance with local safety laws. The Ministry of Labour, Training and Skills Development enforces Section 7 of Regulation 851 (Industrial Establishments), requiring a Pre-Start Health and Safety Review (PSR) conducted by a licensed Professional Engineer (P.Eng.) prior to rack operation.
IronMax Storage Solutions manufactures all steel components to meet or exceed international standards including CSA S16 (Design of Steel Structures) and ANSI/RMI MH16.1 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks). Our engineering deliverables for Toronto clients include full structural calculation packages, seismic spectral response analysis for Southern Ontario seismic zone classification (NBCC), certified weld details, and stamped anchor bolt reaction sheets to ensure effortless PSR engineering approval.
3. Accumulation Engineering Specification Matrix
The comparative matrix below outlines key engineering performance indicators across primary pallet accumulation and structural storage systems designed for industrial facilities in Toronto.
| Racking System Type | Cubic Density Rating | Handling Efficiency | Operational Flow | Max Load per Level | Forklift Risk Profile |
|---|---|---|---|---|---|
| Radio Shuttle Accumulation | Extreme (up to 85%) | Very High (Automated) | FIFO or LIFO | 2,000 kg / pallet | Minimal (Zero tunnel entry) |
| Push-Back Cart System | High (60% – 75%) | High (Fast pick face) | Strict LIFO | 1,500 kg / cart | Low (Aisle edge picking) |
| Drive-In Pallet Racking | High (65% – 75%) | Moderate (Drive-in time) | Strict LIFO | 1,500 kg / level | Moderate-High (Forklift enters rack) |
| Selective Pallet Racking | Standard (35% – 45%) | Maximum Selectivity | 100% Selective | 4,000 kg / level | Low (Standard operation) |
| Heavy Duty Cantilever | Custom Linear | High (Long goods) | Direct Access | 3,500 kg / arm | Low (Open arm design) |
4. Toronto Industrial Real Estate Trends & Logistics Evolution
The Greater Toronto Area remains one of the tightest industrial real estate markets in North America. With vacancy rates historically hovering around low single digits and land development constrained by the Ontario Greenbelt legislation, supply chain operators must build upwards rather than outwards. Key trends driving pallet accumulation technology adoption in Toronto include:
- Clear-Height Maximization (36ft to 40ft+ Facilities): New industrial builds across Milton, Caldeon, and Brampton feature soaring clear heights. Standard selective racking leaves massive vertical volume unutilized due to stability limits. High-density shuttle accumulation systems stabilize tall vertical columns using structural cold-formed frames, capturing overhead airspace safely.
- Electrification & Automation Integration: Ontario's clean energy grid supports warehouse electrification. Transitioning from LPG forklifts to automated shuttle carts reduces internal carbon emissions, aligns with ESG mandates, and dramatically cuts building ventilation requirements in enclosed facilities.
- Resilient Supply Chain Buffering: Supply chain disruptions have shifted Toronto logistics strategy from "Just-in-Time" (JIT) to "Just-in-Case" (JIC). Accumulation racking enables warehouses to hold larger buffer stock of essential raw materials and finished goods within their existing floor footprint.
5. Why Toronto & Canadian Importers Choose IronMax Storage Solutions
IronMax Storage Solutions Co., Ltd. is a recognized high-capacity steel storage equipment manufacturer. We deliver complete engineering support, mill-certified steel fabrication, export packaging, and freight logistics directly to Canadian job sites.
Automated Roll-Forming Lines
Our manufacturing base operates high-precision automated roll-forming equipment capable of shaping Q235B and Q355B structural cold-rolled steel into tear-drop, omega, and box-beam profiles with tight dimensional tolerances (+/- 0.5mm).
Advanced Surface Finishing
Components undergo a 9-stage chemical pretreatment followed by electrostatic epoxy-polyester powder coating (60-80 microns thickness) baked at 200°C. For harsh environments, hot-dip galvanizing to ISO 1461 ensures decades of rust protection.
Export-Optimized Containerization
Every frame, beam, and rail bundle is bound with steel strapping, padded with protective corner guards, and loaded using customized container loading ramps to eliminate transit damage across the Pacific to Canadian ports (Vancouver, Montreal, Halifax).
6. Frequently Asked Questions (FAQ) for Canadian Procurement Managers
Our engineering team provides comprehensive structural engineering documentation, steel grade certification (MTRs), weld inspections compliant with AWS/CSA standards, and detailed CAD elevation drawings. This documentation allows your local Ontario P.Eng. to review, stamp, and certify the installation for PSR compliance without structural retrofits.
Manufacturing lead time is typically 20–30 days depending on project size. Ocean freight from our plant to West Coast ports (Vancouver) with CN/CP rail intermodal transfer to Toronto intermodal hubs (Brampton/Vaughan) takes approximately 22–28 days. Total door-to-door project turnaround is generally 7 to 9 weeks.
Yes. IronMax produces specialized cold-chain Radio Shuttle units fitted with internal heating elements for electronic logic boards, IP65-rated sensor housings, low-temperature lubricants, and specialized Lithium Iron Phosphate (LiFePO4) battery packs designed to operate continuously down to -30°C without loss of voltage or cycle degradation.
Absolutely. We match any RAL color code for upright frames, beams, and safety accessories (such as safety orange, international blue, and warning yellow). Hot-dip galvanizing is fully supported for outdoor storage, high-humidity processing rooms, or corrosive industrial environments.
Simply click the "Get a Quote" button on this page to open a direct live inquiry. Provide your building length, width, clear height, pallet dimensions (W x D x H), unit weight, and preferred handling equipment type. Our engineering team will deliver a 2D/3D CAD layout proposal within 24 hours.
Optimize Your Toronto Warehouse Space Today
Partner with a trusted manufacturer of heavy-duty pallet accumulation racking. Engineering precision, Canadian standard compliance, and factory-direct pricing delivered directly to your job site.
