HEAVY DUTY
Anti-Leakage Steel 5-Layer Metal Deck Board Pallet Racking System
- Capacity: 2,000 kg / level
- Feature: Spill-containment deck
Export Portfolio
Engineered Pallet Racking & Automated Storage Solutions
Heavy-duty structural storage configurations certified for cold-chain, high-bay automated distribution, and intensive warehousing across Norway.
HIGH DENSITY

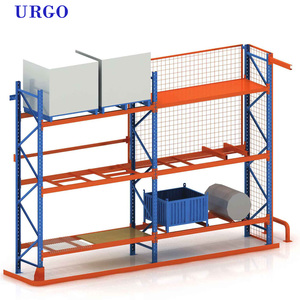

Very Narrow Aisle (VNA) Heavy Duty Pallet Racking System
- Capacity: Up to 4,000 kg / level
- Access: 100% Selective / Guided
MODULAR
Industrial 5-Layer Easy Mobile Steel Pallet Shelving System
- Dimensions: 900x450x1830 mm
- Application: Parts turnover / Hand-pick
AUTOMATION READY

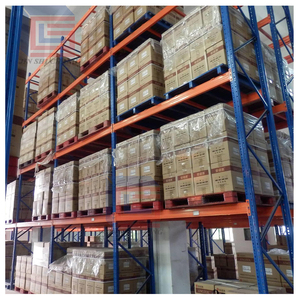

Industrial Heavy Duty Steel Pallet Rack for Distribution Hubs
- Height: Up to 15 Meters
- Compliance: FEM 10.2.02 / CE
Q355B STEEL

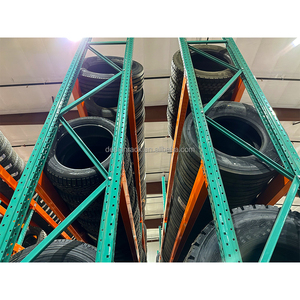

Beam Pallet Rack Q355B Adjustable Heavy Duty Storage System
- Pitch: 50mm / 75mm adjustable
- Warranty: 3-Year Structural
SAFETY PROTECTED

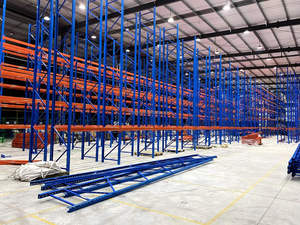

Heavy-Duty Warehouse Shelves with Integrated Safety Railguards
- Protection: Heavy upright guards
- Finish: Epoxy Powder Coated
COLD ROOM -30°C
Heavy-Duty Electrical Mobile Pallet Racking for Cold Storage
- Density: +85% Space utilization
- Environment: Down to -30°C Freezer
CUSTOM DESIGN
Customized Industrial Selective Pallet Racking for High-Bay Storage
- Load Range: 500 – 4,500 kg / level
- Steel Grade: Baosteel High Strength
1. Executive Summary: The Structural Shift Toward Automated Storage in Norway
The logistics and supply chain landscape in Norway is experiencing an unprecedented structural transformation. Driven by high regional labor costs (where warehouse operating expenses often exceed NOK 450 to 650 per hour per operator), geographical dispersion across rugged fjord topographies, and stringent national sustainability mandates under the Norwegian TEK17 building standards, commercial enterprises are aggressively transitioning from conventional static manual storage to Automated Storage & Retrieval Systems (ASRS) and high-density racking infrastructures.
As a leading Chinese manufacturer and global exporter of industrial storage equipment, IronMax Storage Solutions Co., Ltd. supplies high-precision, heavy-duty racking systems, stacker-crane structural frameworks, and radio shuttle solutions specifically designed for the Nordic climate and operational environment. Norwegian buyers—spanning third-party logistics (3PL) providers in Oslo and Viken, seafood exporters in Tromsø and Ålesund, to industrial retail distributors in Bergen—require racking solutions that combine metallurgical toughness under sub-zero freezer conditions with micrometer-level mechanical precision required for high-speed automated cranes.
High-Bay Volume Optimization
Maximizes vertical clearance up to 40 meters, reducing required land footprint by up to 75% in high-value Norwegian commercial zones.
Sub-Zero Ductility Strength
Engineered with Q355B low-alloy high-strength cold-rolled steel, retaining impact strength down to -30°C in seafood cold stores.
Nordic Standard Engineering
Full design compliance with FEM 10.2.09, EN 15512, and NS-EN 15635 structural safety factor guidelines for rack integrity.
2. Technical Architecture of ASRS & Heavy-Duty Pallet Racking
Automated Storage and Retrieval Systems (ASRS) represent the pinnacle of modern intralogistics engineering. Unlike static racking where human-driven forklifts operate within wide aisles, an ASRS relies on automated stacker cranes, shuttle cars, or vertical transfer units operating within aisle tolerances as narrow as 1,400mm and reaching heights exceeding 35 meters. Achieving total system reliability requires strict structural tolerances during steel roll-forming, welding, and erection.
2.1 Metallurgical Specifications and Structural Steel Profiles
The structural backbone of IronMax ASRS racking consists of continuous cold-rolled upright columns and specialized box beams or structural channel profiles manufactured from certified Chinese steel mills (Baosteel/Shougang Group). For Norwegian export projects, steel grades are carefully specified based on thermal operational profiles:
Q235B Carbon Steel: Employed primarily in ambient-temperature distribution centers (10°C to 25°C). Yield strength $R_e \ge 235 \text{ MPa}$, tensile strength $R_m$ between 370–500 MPa. Excellent formability and weldability for standard beam-to-column connections.
Q355B / Q355D Low-Alloy Steel: Mandatory for ASRS high-bay structures and sub-zero cold rooms (-30°C). Yield strength $R_e \ge 355 \text{ MPa}$, providing a 51% increase in load capacity per steel section compared to basic carbon grades. Grade D guarantees impact absorption energy of $\ge 27 \text{ Joules}$ at -20°C, eliminating catastrophic low-temperature brittlement risks in deep-freeze seafood storage units.
| Racking Component | Profile Design / Dimensions | Material Grade | Surface Treatment | Deflection Limit ($\Delta$) |
|---|---|---|---|---|
| ASRS Upright Column | 90x70, 100x75, 120x95, 140x95 mm (Omega Profile) | Q355B / Q355D Steel | Electrostatic Epoxy Powder (60-80µm) | $H / 500$ Structural Height |
| Heavy-Duty Box Beam | 80x50, 100x50, 120x50, 140x50, 160x50 mm | Q235B / Q355B Steel | Epoxy Powder / Hot-Dip Galv (80µm) | $L / 200$ Beam Span Limit |
| Guide Rail Subsystem | Heavy-Duty Cold-Drawn Profile & Floor Anchor Rails | Q355B High Tensile | Hot-Dip Galvanized / Machined Bright | $\pm 1.5 \text{ mm}$ Total Alignment |
| Radio Shuttle Rails | Custom Formed Z/C Galvanized Track (2.5mm - 3.0mm) | Pre-Galvanized / Q355B | Zinc Layer $\ge 275 \text{ g/m}^2$ | $L / 300$ Smooth Shuttle Travel |
| Steel Deck Panels | 5-Layer Box-Ribbed & Anti-Leakage Sump Decks | Q235 Cold-Rolled Sheet | Powder Coating / Zinc Plated | $L / 200$ Concentrated Load |
2.2 Precision Manufacturing and Tolerance Controls
In high-bay ASRS installations, a cumulative vertical deviation of just 0.1% at the base can result in a 35mm sway at a top height of 35 meters. This sway can cause mechanical jamming between stacker crane sensors and pallet loads. To mitigate this risk, IronMax enforces strict manufacturing tolerances in accordance with FEM 10.2.09 (ASRS Design Code):
- Upright Pitch Perforation Tolerance: Non-cumulative hole pitch variance held under $\pm 0.1\text{mm}$ across continuous 12-meter single-section upright lengths via multi-stage CNC punching units.
- Beam Length & Connector Squareness: Overall beam length tolerance within $\pm 0.5\text{mm}$, with robotically welded 3-claw or 4-claw connectors ensuring vertical perpendicularity under load.
- Structural Alignment: Integrated top-tie structural bracing systems and adjustable heavy baseplates engineered to absorb ground micro-settlement.
3. Localization Application Scenarios in Norway
The deployment of industrial racking systems in Norway requires deep understanding of localized supply chain demands, environmental regulations, and specific sector dynamics. From coastal fishing hubs in northern latitudes to urban e-commerce centers surrounding Oslo, IronMax configures tailored systems to match regional requirements.
A. Cold Storage & Seafood Exporters (Tromsø, Ålesund, Hammerfest)
Operational Challenges: Extreme sub-zero operation (-20°C to -30°C), corrosive sea-air moisture exposure, high electricity expenses for freezer maintenance.
IronMax Solution: Fully automated Radio Shuttle Racking and Electrical Mobile Pallet Racking (MOVO) featuring hot-dip galvanized structural profiles ($80\text{--}100\mu m$ zinc coating) and sub-zero low-alloy Q355D steel. Reduces freezer room spatial footprint by up to 50%, generating direct energy savings of up to 40% per pallet slot.
B. High-Bay Retail & FMCG Distribution Hubs (Oslo, Drammen, Viken)
Operational Challenges: Elevated commercial land costs, dense SKU counts, requirement for rapid order turnover, extreme labor costs.
IronMax Solution: Turnkey Single/Double-Deep Crane ASRS Racking integrated with automated conveyor loops. Reaching structural heights of 28 to 36 meters, these systems operate seamlessly with Warehouse Management Systems (WMS/WCS) via laser-guided position positioning, achieving throughput speeds up to 120 pallet moves per hour per crane aisle.
C. E-Commerce & 3PL Spare Parts Storage (Bergen, Stavanger)
Operational Challenges: Mixed order picking profiles, rapid fluctuation in inventory velocity, space optimization for small-to-medium box items.
IronMax Solution: Integrated Very Narrow Aisle (VNA) Racking paired with multi-tier Structural Steel Mezzanines. Incorporates 5-layer heavy metal deck boards, spill-containment safety mesh, and top floor walk-ways, doubling operational picking surfaces without building expansion.
4. Quantitative System Comparison: Evaluating Storage Options
Selecting the ideal industrial racking system involves balancing volumetric efficiency, direct pallet access, operational throughput speed, and upfront capital investment (CAPEX). Below is an engineering comparison matrix prepared by IronMax technical specialists for supply chain decision-makers evaluating warehouse investments in Norway.
| Storage System Type | Cubic Volumetric Utilization | Pallet Selectivity | Forklift / Automation Requirement | Cold-Room Energy Efficiency | Estimated ROI Period (Norway Market) |
|---|---|---|---|---|---|
| Automated ASRS (Crane Based) | Maximum (85% – 90%) | 100% Direct (Single-Deep) | Fully Automated Stacker Crane / WMS | Optimal | 2.5 – 4.0 Years |
| Radio Shuttle Racking | Very High (75% – 85%) | LIFO or FIFO per Lane | Standard Forklift + Automated Shuttle Car | High | 2.0 – 3.0 Years |
| Electrical Mobile Racking | Very High (80% – 85%) | 100% Direct Selective | Standard Reach Truck / VNA Truck | High | 3.0 – 4.5 Years |
| VNA (Very Narrow Aisle) Racks | High (55% – 65%) | 100% Direct Selective | Guided VNA Turret Truck | Moderate | 1.5 – 2.5 Years |
| Selective Pallet Racking | Standard (35% – 45%) | 100% Direct Selective | Standard Counterbalance / Reach Truck | Low | 1.0 – 1.5 Years |
5. Enterprise Superiority: IronMax Manufacturing Competence
As a leading Chinese manufacturer and global supplier based in Shandong Province, IronMax Storage Solutions Co., Ltd. operates a modern production facility spanning over 80,000 square meters. We maintain end-to-end quality control across every production stage—from raw steel coil slitting to automated powder coating and export packing.
Rigorously Tested Manufacturing Standards
We combine advanced automation with strict engineering oversight to deliver structural components built for decades of reliable operation:
- Automated Roll-Forming: 26 continuous cold-roll forming lines equipped with real-time laser profiling sensors to maintain structural beam geometry.
- Robotic Welding Infrastructure: ABB robotic welding cells delivering continuous fillet welds on beam connectors for fatigue-resistant joints.
- Pre-Treatment & Coating: 12-stage wash pre-treatment with zirconium phosphating, followed by Swiss Gema electrostatic epoxy powder coating for superior abrasion and corrosion protection.
- Traceable Quality System: Every batch is backed by Mill Test Certificates (EN 10204 3.1), ultrasonic weld inspection reports, and coating thickness test logs.
6. Frequently Asked Questions (FAQ) for Norwegian Buyers
Key technical, regulatory, and logistics answers for procurement directors, structural engineers, and facility managers importing industrial racking into Norway.
How do IronMax racking systems comply with Norwegian building & safety standards (NS-EN 15635 / EN 15512)?
Our structural designs follow the structural engineering frameworks of EN 15512:2020 (Steel static storage systems - Adjustable pallet racking systems - Principles for structural design) and European FEM 10.2.02 / 10.2.09 codes. When delivering to Norway, load structural calculations account for local seismic coefficients, building deflection limits, and safety factors aligned with NS-EN 15635 inspection standards. Full structural calculation books stamped by qualified structural engineers can be provided for local municipal authority approvals (Kommunal byggetillatelse).
How does sub-zero cold storage (-30°C) affect steel choice and warranty in Norway?
Standard carbon steels (like Q235A) can undergo ductile-to-brittle transition when exposed to sub-zero freezer temperatures, increasing susceptibility to impact fracture under forklift loading. For cold storage projects in regions such as Tromsø or Ålesund, IronMax utilizes low-alloy Q355D steel paired with high-durability epoxy coatings or hot-dip galvanizing ($80\text{--}100\mu m$ zinc depth). This guarantees impact toughness ($\ge 27\text{J}$ at -20°C) and prevents surface oxidation, backed by our 10-year cold-room structural warranty.
What are the typical logistics, customs, and delivery timelines to Norwegian ports?
We offer turnkey shipping solutions (FOB, CIF, or DDP) directly to primary Norwegian ports including Oslo Harbor, Drammen, Brevik, Bergen, and Ålesund. Manufacturing turnaround averages 20 to 30 days depending on system complexity, followed by ocean transit of approximately 35 to 42 days. All shipments include detailed export packaging, labeled component bundles corresponding to 3D installation drawings, and complete customs documentation (EUR.1 / Certificate of Origin, Commercial Invoice, Packing List with HS Codes 7308.90).
Can IronMax provide integration support for automated stacker cranes and WMS systems?
Yes. Our engineering team routinely collaborates with European and global automated system integrators (WMS/WCS providers, PLC electrical control teams, and stacker crane manufacturers). We provide precise 3D CAD/BIM models, structural anchor hole layouts, sensor mounting brackets, and strict dimensional tolerances ($\pm 1.5\text{mm}$ aisle straightness) required for reliable automated system commissioning.
How is on-site installation managed across Norwegian municipalities?
IronMax provides comprehensive 3D step-by-step assembly drawings, component installation manuals, and video installation support. For larger ASRS high-bay or radio shuttle installations, we can dispatch senior erection supervisors to work directly alongside local Norwegian mechanical installation contractors, ensuring strict alignment, torque compliance, and safety sign-off.
Ready to Optimize Your Norwegian Warehouse Footprint?
Contact our senior engineering team today for a complimentary CAD warehouse design, structural load analysis, and competitive direct-from-factory pricing quotation.
