High-Performance Storage Equipment for Automotive Logistics
Engineered to FEM 10.2.02 and EN 15512 safety codes. Modular, high-capacity racking configurations designed for Tier-1/Tier-2 automotive manufacturing environments in Portugal.
Optimizing Automotive Supply Chains Across Portugal
Engineering customized high-density storage solutions tailored for OEM assembly facilities, Tier-1 component hubs, and aftermarket distribution networks in Palmela, Mangualde, Aveiro, Porto, and Setúbal.
Portugal’s automotive manufacturing ecosystem—anchored by major OEM assembly operations such as Volkswagen Autoeuropa in Palmela, Stellantis in Mangualde, Renault in Cacia, along with an extensive network of over 200 Tier-1 and Tier-2 component manufacturers—requires exceptionally robust material handling infrastructure. Storing automotive components presents unique structural engineering challenges: inventory ranges from dense, ultra-heavy engine blocks, transmission cases, and stamping dies to delicate, high-volume body panels, windshield glass, and EV battery modules.
As a specialized manufacturer and global supplier of heavy-duty industrial storage systems, IronMax Storage Solutions Co., Ltd. delivers customized pallet racking and automated warehousing frameworks specifically engineered to meet the operational pressures of Just-In-Time (JIT) and Just-In-Sequence (JIS) automotive supply chains across Portugal.
Localized Application Scenarios in Portuguese Automotive Logistics
Targeted racking architectures configured for specific automotive SKUs, load footprints, and handling equipment across Portugal’s industrial corridors.

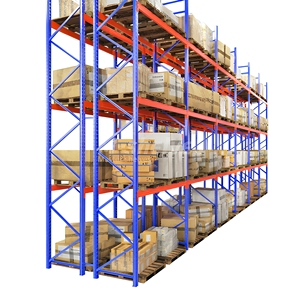

Heavy Stamping Die & Engine Block Racking
Utilizing high-tensile Q355B hot-rolled structural steel, our heavy-duty beam racks offer load capacities exceeding 4,000 kg per level. Specially engineered for metal stamping facilities and engine casting plants in Aveiro and Porto, these units incorporate heavy-duty drop-in wire mesh decking and integrated fork channels to guarantee structural safety under massive point-loads.
Body Panel & Exhaust System Cantilever Racking
Automotive body panels, bumper assemblies, exhaust pipes, and aluminum extruded side-rails require arm-based storage without front-column obstruction. Our custom single- and double-sided cantilever systems feature adjustable pivot arms with anti-scratch rubberized sleeves, protecting pristine finished surfaces during intensive overhead crane or forklift picking.
Tire & Wheel Assembly High-Density Rack Towers
Optimized for tier-1 tire integrators and regional vehicle distribution centers near Setúbal and Leixões ports. Custom-spaced tubular step beams support tires directly without pallets, maximizing vertical space utilization while preventing tire tread deformation through ergonomic weight-distribution profiles.

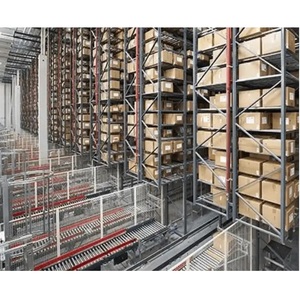

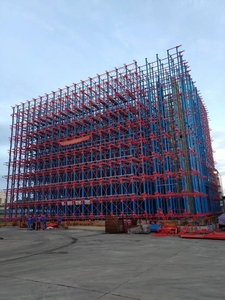

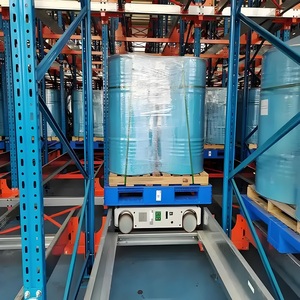

Automated 4-Way Radio Shuttle High-Density Blocks
Designed for high-throughput spare parts hubs and 3PL fulfillment centers serving the Iberian peninsula. Radio shuttle carts travel on internal rails within deep racking channels, providing dynamic FIFO/LIFO inventory management that cuts forklift drive-in requirements by up to 70% and minimizes rack impact risks.

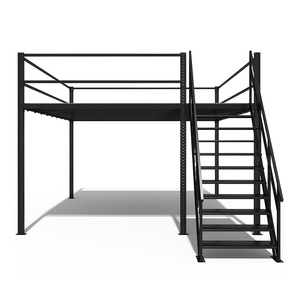

Multi-Tier Mezzanine Platforms for Small Parts
Transforming clear ceiling heights into multi-level picking floors for fasteners, electrical harnesses, sensors, and interior trim components. Structural steel columns support integrated grating decks, staircases, and handrails, effectively multiplying storage footprint without costly physical facility expansions.
EV Battery Module Safe Storage Racks
With Portugal’s shift toward electric vehicle assembly (such as Stellantis Mangualde EV line), our hazardous component racking features hot-dip galvanized finishes, integrated fire-sprinkler mounting brackets, thermal barrier trays, and impact-resistant heavy-duty upright guards to comply with strict environmental safety standards.
Macro Trends & Structural Engineering Compliance in Portugal
Navigating environmental, seismic, and automation benchmarks mandated by European Union regulations and local Portuguese logistics standards.
Critical Compliance Standard: European Norm EN 15512 & FEM 10.2.02
All industrial pallet racking systems installed within the European Union must strictly comply with EN 15512 structural design codes. IronMax engineered systems incorporate rigorous finite element analysis (FEA), verified steel yield point tolerances, dynamic frame deflection limits, and safety factors to guarantee structural integrity under continuous heavy industrial handling.
1. Electrification & Hazardous Material Isolation
Portugal’s national commitment to green energy and lithium-value-chain investment is accelerating the electrification of its automotive assembly lines. Storing EV traction batteries requires strict thermal monitoring, non-combustible racking components, and isolated pallet slots. IronMax supplies specialized epoxy-coated and galvanized racking configurations equipped with integrated sensor brackets and anti-spill containment trays designed specifically for lithium battery storage risk mitigation.
2. Coastal Anti-Corrosion Requirements
Major Portuguese logistics corridors—including the Port of Leixões (Matosinhos), Port of Sines, and the Setúbal peninsula—are exposed to highly corrosive marine air environments. Standard powder coating often suffers from early micro-fissuring and rust under maritime conditions. IronMax offers specialized C4-H grade electro-galvanized and hot-dip galvanized surface treatments (ISO 12944 compliant) ensuring over 20 years of rust-free service life in coastal automotive warehouses.
3. Seismic Risk Engineering (NP EN 1998-1 / Eurocode 8)
Southern Portugal and the Greater Lisbon region reside in active seismic zones (Seismic Zone 1 & Zone 2 under Portuguese national annexes). Racking structures installed in these areas must withstand seismic ground accelerations. IronMax designs custom baseplates, heavy-duty floor anchoring bolts, and structural cross-bracing frameworks engineered to absorb dynamic seismic loads without catastrophic rack collapse.
4. Transition to Smart ASRS & High-Density Automation
Soaring warehouse rental costs in prime industrial parks (such as Azambuja, Lisboa-Norte, and Maia) are forcing logistics managers to transition from standard selective racking to narrow-aisle (VNA) and 4-way Radio Shuttle ASRS systems. By elevating storage heights up to 24 meters and narrowing aisle widths to 1.6 meters, storage density increases by up to 200% on identical floor footprints.
Manufacturer Engineering Advantages & Quality Guarantees
Direct factory engineering strength, traceable raw materials, and comprehensive export logistics designed for seamless European delivery.
High-Tensile Certified Steel
We source prime cold-rolled steel coils (Q235B and Q355B grade) directly from top-tier mills. High yield strength ensures exceptional resistance to frame buckling and beam sagging under full design load ratings.
Dual-Lock Safety Connector Pins
Our heavy-duty upright beam connectors feature precision-stamped 5-hook claw connectors secured by automatic spring-loaded safety locks, preventing accidental beam dislodgement from aggressive forklift strikes.
Advanced Automated Production
Utilizing automated continuous roll-forming lines, robotic welding stations, and automated Swiss Gema powder coating lines to guarantee millimeter-accurate hole pitch, clean weld beads, and uniform coating thickness.
Custom 3D CAD & BIM Layout Support
Our structural engineering team provides complete 2D layout drawings, 3D render models, and structural load calculation reports within 24 hours of receiving your warehouse CAD files and component specifications.
Export Packaging & Container Optimization
Components are tightly bundled with steel strapping, wrapped in protective plastic film, and fitted with heavy wooden dunnage to eliminate shipping friction, maximizing container volume and protecting surface finishes during ocean transport to Portugal.
Turn-Key Installation Technical Support
Every shipment is accompanied by detailed assembly manuals, piece-by-piece packing lists, and step-by-step installation videos. Remote video supervision and engineering oversight are provided for complex automated racking projects.
Automotive Racking System Comparison Matrix
Select the optimal storage infrastructure based on load profile, inventory rotation rules, and spatial efficiency targets.
| Racking System Type | Storage Density | Selectivity Rate | Stock Rotation | Max Load per Level | Ideal Automotive Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | Standard (40-50%) | 100% Direct Access | FIFO / LIFO | 4,000 kg | High SKU variety, fast-moving spare parts, general distribution |
| Radio Shuttle System | Ultra-High (80-85%) | Lane Selective | FIFO / LIFO | 2,000 kg / shuttle | High-volume homogeneous parts, tires, JIT buffer inventory |
| Very Narrow Aisle (VNA) | High (65-75%) | 100% Direct Access | FIFO / LIFO | 3,500 kg | High-bay warehouses, high SKU density, guided turret trucks |
| Cantilever Racking | Medium (50-60%) | 100% Linear Access | N/A | 1,500 kg / arm | Pipes, body panels, side-frames, long raw metal profiles |
| Heavy Die Storage Racks | High Structural Load | 100% Direct Access | N/A | 5,000+ kg | Stamping dies, engine blocks, heavy casting molds |
| Multi-Tier Mezzanine | Maximum Floor Area | 100% Manual Access | Flexible | 1,000 kg / sq.m | Small components, wire harnesses, electrical hardware, picking lines |
Frequently Asked Questions for Portuguese Buyers
Addressing import tariffs, regulatory compliance, ocean shipping logistics, and structural safety specifications for procurement teams in Portugal.
Manufacturing lead time for standard racking systems typically ranges between 15 to 20 calendar days depending on project order volume. Ocean transit time from our main export port (Qingdao / Shanghai) to Port of Leixões or Port of Sines is approximately 28 to 35 days. In total, clients in Portugal should plan for a total door-to-door lead time of roughly 45 to 55 days from final CAD drawing approval.
Yes. All IronMax industrial racking systems are designed, calculated, and tested according to European design standard EN 15512 (Steel static storage systems - Adjustable pallet racking systems - Principles for structural design) and FEM 10.2.02 guidelines. We provide CE certification documentation, mill test certificates for steel raw materials, and official load capacity plates for display on installed rack structures.
Racking orders can be shipped under FOB, CIF, or DDP (Delivered Duty Paid) terms. Under DDP terms, IronMax manages all customs declarations, maritime freight, European import tariffs, and local trucking directly to your warehouse facility in Portugal. You simply receive the goods at your dock without dealing with customs brokers or unexpected port fees.
Absolutely. Automotive supply chains rely heavily on specialized returnable steel stillages, wire mesh containers, non-standard plastic containers, and heavy wooden Euro-pallets (1200x800mm and 1200x1000mm). Our engineers customize frame depths, beam spans, upright profiles, and fork clearance levels to match your exact container footprints and forklift specs.
For standard dry indoor climate-controlled logistics hubs, our thermosetting electrostatic epoxy powder coating provides exceptional impact resistance and clean visual aesthetics (custom RAL colors available). For warehouses near coastal areas (such as Setúbal, Porto, or Sines) or unconditioned facilities with elevated humidity, we strongly recommend pre-galvanized uprights or hot-dip galvanized steel components conforming to ISO 1461 standards to guarantee long-term corrosion prevention.
IronMax provides complete structural engineering load calculations detailing point-load distributions under every rack footplate. Your structural engineer or warehouse facilities team can verify these values against your concrete slab specs (e.g., C25/30 reinforced concrete). We supply heavy-duty mechanical wedge anchors or chemical anchor bolts compliant with ETA (European Technical Assessment) standards.
Optimize Your Automotive Storage Infrastructure Today
Consult with our senior structural engineers to receive a complimentary 2D/3D warehouse layout proposal, FEM structural load analysis, and competitive direct-manufacturer quotation for your operations in Portugal.
