Featured Industrial Racking & High-Density Shuttle Portfolio
Engineered to maximize volumetric utilization, reduce forklift cycle times, and optimize high-density warehouse storage across global supply chains.

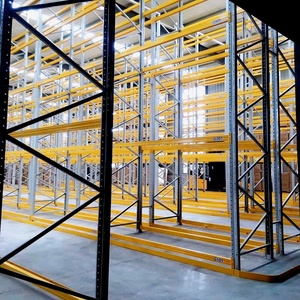

Pallet Racking Warehouse Storage Heavy Duty Industrial Pallet Shelf Selective System
Heavy-duty structural steel selective racking offering 100% immediate pallet accessibility, engineered for high-turnover logistics centers.

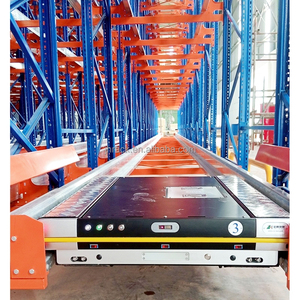

Customized High Density Storage LIFO Pallet Radio-Shuttle Rack System
Semi-automated radio shuttle pallet system utilizing self-powered shuttle carts inside deep channels for maximum warehouse cubic density.

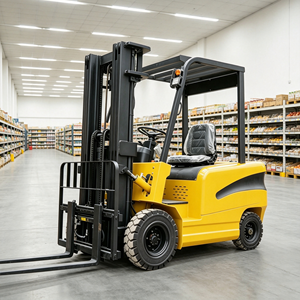

3-4 Ton Sit-On Electric Counterbalance Forklift (Li-Ion Battery, 5000mm Mast)
High-performance electric counterbalance forklift integrated with Li-ion technology, designed to service deep shuttle loading bays efficiently.

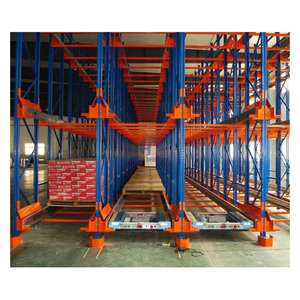

Heavy Duty Automatic Storage System Shuttle Pallet Rack Solution
Precision-engineered high-strength steel shuttle matrix capable of dynamic load handling up to 1,500 kg per pallet position.

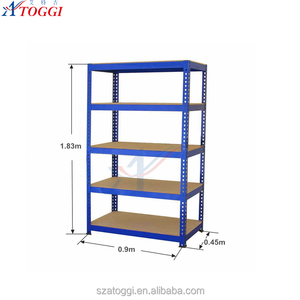

900x450x1830mm Modular 5-Layer Industrial Steel Storage Shelving Rack
Boltless, easily reconfigurable steel shelving units designed for manual order fulfillment, parts turnover, and high-density side stores.

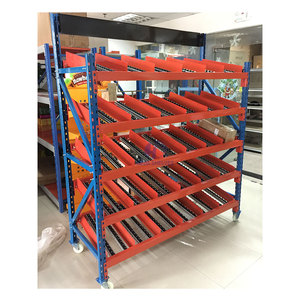

Customized Gravity Roller Pallet Flow & Lineside Carton Flow Racking System
First-In, First-Out (FIFO) gravity-driven storage lanes equipped with precision speed controllers and heavy-duty roller tracks.
Fully Automated Corrosion-Resistant Two-Way Radio Shuttle Cart System
Galvanized sub-zero cold room shuttle system operated via RF remote or WMS software, rated down to -30°C operational environment.

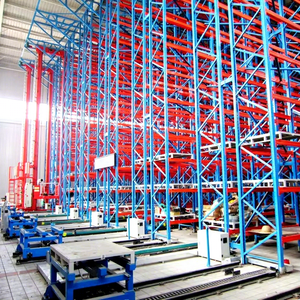

Customized Stacker Crane AS/RS Vertical Automated Pallet Shuttle Racking System
Fully integrated Automated Storage and Retrieval System (AS/RS) combining high-speed stacker cranes with multi-depth pallet shuttle carts.
Whitepaper: Engineering Architecture of Two-Way Shuttle Racking Systems
A Comprehensive B2B Technical Blueprint for Supply Chain Directors, Logistics Engineers, and Warehouse Operations Executives.
In modern industrial warehousing, spatial economics dictate that maximizing storage density per square meter is directly linked to operational profitability. Traditional selective racking provides total pallet accessibility but sacrifices up to 60% of floor space to forklift aisles. Drive-In racking improves density but introduces severe risks of rack structure collisions, operational slow-downs, and material handling bottlenecks. The Two-Way Radio Shuttle Racking System represents a critical technological leap—combining structural physics, automation, and high-density channel storage into a unified platform.
1. Structural Physics & Mechanical Engineering Standards
The core structural matrix of an IronMax Two-Way Shuttle Racking system utilizes high-tensile Q355B cold-rolled structural steel profiles. Unlike standard racking uprights, shuttle rack channels feature continuous multi-stage cold-formed guide rails that serve a dual mechanical purpose: carrying the heavy structural load of stacked pallets while acting as the high-precision driving track for the autonomous shuttle vehicle.
Every profile is calculated under rigorous FEM 10.2.02 (European Federation of Materials Handling) and EN 15512 structural safety norms. Deflection ratios are strictly controlled within $L/200$ under maximum dynamic load conditions. The self-centering geometry of the guide rail ensures smooth vehicle traverse even under minor structural vibration or thermal expansion in sub-zero freezer operations.
Our two-way shuttle rails are manufactured with a positioning tolerance of less than ±1.0mm per 10-meter rail span. This extreme accuracy prevents shuttle wheel wear, eliminates motor stall torque events, and guarantees precise optical sensor feedback during high-speed pallet elevation.
2. Shuttle Automation, Sensors & Power Architecture
The two-way shuttle vehicle is an electro-mechanical robot engineered with a low-profile chassis (typically under 180mm height). Driven by dual high-torque Brushless DC (BLDC) servo motors and powered by industrial-grade Lithium Iron Phosphate (LiFePO4) battery packs, the shuttle provides fast acceleration and precise decelerations.
- Optical & Laser Sensor Suite: Includes photoelectric rangefinders, ultrasonic anti-collision sensors, pallet edge detectors, and mechanical safety bumpers.
- Hydraulic Lifting Platform: Powerful internal hydraulic or electric servo lifts raise the pallet 40mm off the rail face in under 2.5 seconds before travel.
- RF Remote & WMS Integration: Controlled via long-range 433MHz industrial radio remotes or linked directly to warehouse WMS/WCS software via 2.4GHz Wi-Fi mesh networks.
System Technical Specifications & Operational Matrix
Standardized parameters engineered for global logistics environments and heavy industrial storage demands.
| Performance Parameter | Standard Heavy-Duty Shuttle | Cold-Room Spec Shuttle (-30°C) | Custom High-Capacity Shuttle |
|---|---|---|---|
| Nominal Payload Capacity | 1,000 kg – 1,500 kg | 1,200 kg – 1,500 kg | Up to 2,000 kg |
| Travel Speed (Unloaded / Loaded) | 1.2 m/s / 0.8 m/s | 1.0 m/s / 0.7 m/s | 0.9 m/s / 0.6 m/s |
| Battery Chemistry & Voltage | LiFePO4 24V / 60Ah | Low-Temp LiFePO4 24V / 80Ah with heating | LiFePO4 48V / 100Ah |
| Continuous Operating Time | 8 – 10 hours | 6 – 8 hours (Continuous sub-zero) | 10 – 12 hours |
| Charging Time (Fast Charge) | 3 hours (80% in 1.5h) | 3.5 hours (External charge dock) | 3 hours |
| Structural Frame Steel Grade | Q235B / Q355B Cold Rolled | Q355E Structural Steel (Impact Tested) | Q355B Heavy Section Steel |
| Corrosion Protection Finish | Epoxy Powder Coating (80-120μ) | Hot-Dip Galvanized (ISO 1461) | Duplex Powder Coating Over Galvanized |
Enterprise Manufacturing Capabilities: Why IronMax is your Trusted Partner
As a premiere Warehouse Pallet Racking Manufacturer in China, IronMax Storage Solutions Co., Ltd. operates state-of-the-art production facilities in Jining, Shandong Province. Our commitment to structural integrity, engineering transparency, and strict B2B compliance makes us the trusted OEM/ODM supplier for EPC contractors, logistics integrators, and global enterprise brands.
3. Quality Control & Testing Framework
At IronMax Storage Solutions, quality is guaranteed through a rigorous four-stage verification protocol:
- Raw Material Verification: Every mill certificate for steel coils (Q235B, Q355B) is tested for chemical composition and yield tensile strength.
- Roll Forming Precision: Upright profiles and shuttle guide rails undergo optical laser dimensional profiling to prevent twist and camber errors.
- Surface Pre-treatment & Coating: High-pressure shot-blasting removes all mill scale, followed by automated electrostatic epoxy-polyester powder application baked at 200°C.
- Full System Mock-up Assembly: Prototype shuttle tracks are assembled in-house, and shuttle cart movement, braking distance, and elevator integration are verified under 150% rated load.
Future Procurement Trends in High-Density Warehouse Automation (2025–2030)
Key technological shifts driving global warehouse modernization, sustainability, and automated material handling investments.
1. Convergence of 2D Two-Way Systems into 4D Multi-Directional Networks
While two-way shuttles remain the most cost-effective automated storage option for single-SKU lanes, global logistics is witnessing a gradual convergence toward 4D (Four-Way) shuttle systems. Four-way shuttles can change channels transversely without relying on human forklift operators or secondary transfer cars. Forward-thinking procurement strategies now specify "4D-Ready" racking footprints—allowing companies to install two-way shuttle systems today and seamlessly upgrade to full 4-way autonomous fleets tomorrow without replacing structural rack steel.
2. Deep WMS/WCS Integration & AI-Driven Predictive Maintenance
Modern shuttle fleets are no longer isolated islands of mechanical automation. Cloud-connected Warehouse Management Systems (WMS) and Warehouse Control Systems (WCS) manage real-time shuttle traffic using machine learning algorithms. Intelligent task batching reduces idle travel times, balances battery state-of-charge across shuttle units, and triggers automated maintenance alerts before mechanical wear leads to operational downtime.
3. Low-Carbon Steel & Sustainable Green Warehousing
Scope 3 carbon emissions are becoming a critical evaluation metric for multinational corporate procurement. The manufacturing of storage racks is transitioning toward green-certified steel produced via Electric Arc Furnaces (EAF), alongside zero-VOC, heavy-metal-free powder coatings. IronMax lead the market by providing certified low-carbon storage matrix products that align with international ESG framework requirements.
4. Sub-Zero Cold-Chain Optimization for Food & Pharma
The global boom in online grocery and pharmaceutical distribution has dramatically increased demand for high-density cold storage systems. Because powering sub-zero storage spaces is extremely expensive, optimizing volumetric space is vital. Two-way shuttle racking increases freezer volume utilization by up to 85% compared to standard rack setups. Advanced thermal-managed LiFePO4 batteries ensure reliable sub-zero operation without rapid voltage drop.
Total Cost of Ownership (TCO) & Financial ROI Matrix
Investing in warehouse racking requires evaluating long-term operational costs (OPEX) alongside initial capital expenditure (CAPEX). Below is a comparative financial analysis comparing four leading industrial rack configurations across a 10,000-pallet facility over a 5-year operating period.
| Racking Architecture | Storage Density Efficiency | Forklift Operator Headcount | Rack Damage Risk Factor | Est. CAPEX (Relative) | Payback Period (ROI) |
|---|---|---|---|---|---|
| Selective Pallet Racking | 40% – 50% | 100% (High labor requirement) | Moderate / High | 1.0x (Baseline low CAPEX) | N/A (Base level) |
| Drive-In Racking System | 65% – 75% | 70% (Forklifts enter racks) | Severe (High impact risk) | 1.4x | 2.5 Years |
| IronMax Two-Way Shuttle Racking | 80% – 90% | 30% (Automated shuttle flow) | Extremely Low | 2.2x | 1.4 Years |
| Full Crane-Based AS/RS | 90% – 95% | 10% (Fully automated) | Zero (Fully enclosed) | 5.5x – 7.0x | 3.8 Years |
Conclusion: The Two-Way Shuttle Racking System strikes the optimal financial balance—delivering near-AS/RS storage density and massive labor savings at a fraction of the capital investment of full stacker-crane automation.
Frequently Asked Procurement & Technical Questions
Expert technical answers addressing layout planning, mechanical integration, safety standards, and global shipping logistics.
