What load capacity can IronMax pallet racking carry?

Standard selective pallet racking is supplied from 500 kg to 4,000 kg per beam level, and push back systems up to 5,000 kg per level. Final capacity is confirmed by our engineers based on upright height, beam span, pallet size and local seismic or safety requirements.

Should I choose powder coating or galvanized racking?

Epoxy powder coating suits dry indoor warehouses and allows custom colors. Galvanized finishes are recommended for cold storage, high-humidity, coastal or semi-outdoor environments where corrosion resistance is critical.

Can you design a racking layout from my warehouse drawing?

Yes. Send your CAD drawing or building dimensions, clear height, pallet size and weight, forklift type and lift height to sales@ironmaxrack.com. Our engineering team returns a layout proposal with load calculations and a component list.

Do you provide installation support for overseas projects?

Every order ships with installation drawings and manuals. Remote video guidance is available, and on-site installation supervision can be arranged for larger projects.

Which racking system is best for cold storage?

Cold rooms are expensive per cubic meter, so high-density systems such as drive-in racking or radio shuttle racking are usually preferred. Radio shuttle racking also reduces forklift travel inside the freezer and supports FIFO or LIFO flow.

How are racking components packed for export?

Uprights and beams are bundled with steel strapping and protective wrapping, small parts are packed in cartons, and container loading is planned to protect coatings and maximize container space.

Top Trusted Smart Warehouse Pallet Racking Manufacturers & Exporter

Engineering High-Density Storage Architecture, Automated Shuttle Racking & Certified Industrial Structural Heavy-Duty Racks for Global Supply Chains.

Engineering-Grade Industrial Racking Solutions

Explore top-performing heavy-duty, radio shuttle, VNA, and structural mezzanine racking systems engineered for high-density warehouse operations.

Industrial Heavy Duty Galvanized Cantilever Rack

Industrial Heavy Duty OEM ODM Storage Racks Wall Mounting Tube Racking Galvanized Cantilever Rack For Warehouse

Inquire Now

Double Sided Drive Through Pallet Rack Mezzanine

Rack Rollers Heavy Duty Steel Polished Stackable Double-Sided Drive-Through Pallet Rack Blue Mezzanine Floor System High Load

Inquire Now

Engineering Design High Density Pallet Rack System

Engineering Design Pallet Rack System with High Density Structural Layout & FEM Safety Certified Components

Inquire Now

Counterbalance Forklift FH-CPD20 2 Ton Storage Equipment

Custom Lifting Height Counterbalance Forklift FH-CPD20 2 Ton High Rack Warehouse Storage Equipment

Inquire Now

Industrial Steel Q235 Drive-In Pallet Rack with Corrosion Protection and Secure Design for Oil Drum Storage

Inquire Now

Victory Light Duty Cantilever Rack For Storage Long Product Use Q235B Steel Customized Stacking Rack

Inquire Now

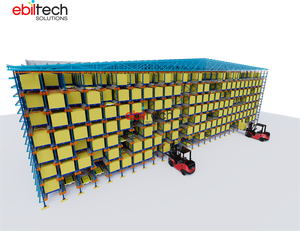

EBILTECH CE Certified Two Way Shuttle Clad Racking Warehouse Integrated Rack for Deep Lane Storage

Inquire Now

Pallet Shuttle Satellite Car Automatic Racking System

EBILTECH EBIL-ZMC Pallet Shuttle Rack System by Shuttle Satellite Cars High-Capacity 160m/min 380V Automatic Racking

Inquire Now

4,500 KG

Max Capacity / Beam Level

160 m/min

Shuttle Transit Speed

Q355B

High-Tensile Cold Steel

ISO/CE/FEM

Global Structural Safety

Executive Summary: Navigating Modern High-Density Warehouse Racking Engineering

In contemporary global supply chain management, the warehouse footprint is no longer merely a physical shell for inventory storage; it is a dynamic, high-density asset where structural safety, space utilization efficiency, and operational speed dictate total profitability. As premier smart warehouse pallet racking manufacturers and global exporters, our engineering framework integrates finite element analysis (FEA), metallurgical precision, and automated material handling system (AMHS) integration.

Industrial logistics operators face rising real estate overheads and tighter order fulfillment windows. Transitioning from basic selective storage to engineered radio shuttle satellite systems, Very Narrow Aisle (VNA) racking, and rack-clad self-supporting buildings increases cubic storage density by up to 85% while reducing structural footprint costs. Utilizing premium Q235B and high-tensile Q355B cold-rolled structural steel, our manufacturing infrastructure produces cold-formed upright profiles and interlocking box beams built to resist seismic forces and high dynamic forklift impacts.

Structural & Operational Racking Selection Matrix

Racking System Type	Volumetric Density	SKU Selectivity	Load Capacity (per level)	Handling Equipment Compatibility	Optimal Industry Application
Selective Pallet Racking	Baseline (40% - 50%)	100% Direct Access	500 kg - 4,000 kg	Standard Counterbalance, Reach Trucks	FMCG, 3PL Distribution, E-Commerce Hubs
Drive-In / Drive-Through	High (65% - 75%)	Low (LIFO / FIFO Lanes)	1,000 kg - 2,500 kg	Counterbalance, Narrow Reach Trucks	Cold Storage, Batch Food & Beverage, Bulk SKUs
Radio Shuttle Satellite Racking	Ultra-High (80% - 90%)	Automated Lane Control	1,000 kg - 2,000 kg	Automated Shuttle Cars, Lift Trucks	Freezer Warehouses, Chemical Drums, Pharmaceutical
Very Narrow Aisle (VNA)	High-Vertical (70% - 80%)	100% Direct Access	1,000 kg - 3,000 kg	VNA Man-Up Turret Trucks, Wire Guided	High-Ceiling Logistics, Reserve Stock Archiving
Structural Cantilever Racks	Variable (Long Goods)	100% Open Access	500 kg - 6,000 kg/arm	Side Loaders, Heavy Counterbalance	Steel Pipe, Aluminum Extrusions, Timber, Panels
Multi-Tier Mezzanine Platforms	Maximum Floor Multiplication	Manual / Conveyor Pick	300 kg - 1,200 kg/m²	Stairways, Cargo Lifts, AGV Sorting	Small-Parts Bin Picking, Garment & Retail Fulfillment

Industry Development Trends: The Smart Warehousing Revolution

The industrial racking sector is undergoing a technology-driven paradigm shift. Static steel structures are giving way to intelligent, sensor-monitored, semi-automated and fully automated storage systems (AS/RS). Key macro trends shaping the structural racking landscape include:

1. AS/RS & Satellite Shuttle Fusion

Integration of two-way and four-way radio pallet shuttles directly into heavy-duty racking channels. Operating at speeds up to 160m/min, satellite cars automate deep-lane storage, controlled via Wi-Fi and Warehouse Management Software (WMS).

2. Structural Health Monitoring (IoT)

Next-generation racking installations incorporate piezoelectric deflection sensors and wireless impact detectors. Real-time telemetry alerts facility engineers to forklift damage, upright deformation, and overload conditions before structural failures occur.

3. Rack-Clad Building Construction

Rack-clad automated warehouses treat the high-density racking system as the primary load-bearing skeleton supporting the building roof and side cladding, eliminating the need for independent structural building columns.

Future Procurement Trends: Strategic Buying for B2B Importers & EPCs

Procurement directors and general contractors are moving beyond initial CapEx cost-per-pallet metrics, adopting Total Cost of Ownership (TCO) evaluation models. Modern procurement criteria emphasize engineering compliance, carbon footprint reduction, and modular adaptability:

Seismic & FEM Engineering Rigor

Global buyers mandate structural calculations adhering strictly to EN 15512, RMI ANSI MH16.1, and AS4084 standards. Custom engineering accounts for local ground acceleration, soil classifications, and dynamic load factors.

Advanced Surface Treatment Standards

Environmental durability demands thermosetting epoxy-polyester powder coatings (minimum 60-80 microns thickness) or continuous hot-dip galvanizing (Z275/Z600 grade) to eliminate corrosion in cold storage (-30°C) and high-humidity marine environments.

Modular Expansion & Bolt-Free Design

Systems featuring 50mm, 75mm, or 76.2mm (3-inch) pitch adjustment allow effortless beam reconfiguration as pallet heights change, ensuring long-term operational longevity without custom structural rework.

Enterprise Advantage: Manufacturing Excellence & OEM/ODM Rigor

IronMax Storage Solutions Co., Ltd. operates state-of-the-art cold-roll forming lines, automated robotic welding cells, and continuous electrostatic powder coating lines in Shandong, China. As a validated exporter of heavy-duty storage racks and automated warehouse systems, our capabilities ensure technical superiority and project compliance:

100% In-House Structural Fabrication

From raw Q235B/Q355B steel strip slit rolling to beam end connector stamping and robotic beam welding, every component is manufactured under strict ISO9001 quality control protocols.

CAD/BIM Engineering Layout Design

Our dedicated engineering department provides complimentary 2D layout drafting, 3D structural BIM models, structural load calculation reports, and seismic safety simulation drawings within 24 hours.

Global Export & Container Packaging

Uprights and beams are bundled with protective steel strapping, corner guards, and plastic wrapping. Steel accessories are packed in reinforced wooden crates to guarantee zero transit damage during sea freight.

Procurement Guide & Frequently Asked Questions (FAQ)

Q1: How do I select between Q235B and Q355B structural steel grades for heavy-duty racking?

Q235B (yield strength ~235 MPa) is the industry standard for general selective racking carrying up to 2,000 kg per beam level under ambient temperatures. Q355B high-tensile steel (yield strength ~355 MPa) is recommended for extreme upright loading, high-bay automated warehouses over 12 meters, drive-in racking channels, and seismic zone installations, allowing reduced steel weight while maintaining structural safety factors according to EN 15512.

Q2: What beam deflection ratio limit is safe for industrial pallet racking?

According to RMI and European FEM guidelines, maximum beam deflection under full nominal load should not exceed L/200 (where L is the beam clear span length). For a standard 2,700 mm (106 inch) beam span carrying 3,000 kg, the maximum allowable mid-span deflection is 13.5 mm. Our structural engineering designs guarantee deflection ratios well within this limit to prevent beam fatigue and forklift load catching.

Q3: How does a Radio Shuttle Racking System compare to traditional Drive-In Racking?

While Drive-In racking requires forklifts to drive inside the racking channels (increasing structural risk and cycle times), a Radio Shuttle system utilizes an automated battery-powered satellite car controlled via RF remote or WMS software. Shuttles navigate inside deep lanes up to 40+ pallets deep at speeds up to 160m/min, boosting pallet throughput by 200%, minimizing rack damage, and supporting both FIFO and LIFO operational modes.

Q4: What surface finish is required for cold storage sub-zero environments (-30°C)?

For cold rooms and deep-freeze logistics, hot-dip galvanizing (HDG) or specialized low-temperature epoxy powder coatings are essential. Hot-dip galvanizing creates a metallurgically bonded zinc layer (typically 65-85 microns thick) that protects steel from condensation rust during defrost cycles. Standard powder coatings must undergo impact and adhesion testing at sub-zero temperatures to ensure paint skin elasticity.

Q5: What technical details are required to receive a complete layout design and quotation?

To provide an accurate CAD layout design and structural quote, our engineers require: (1) Warehouse building dimensions and clear ceiling height under sprinklers/beams; (2) Pallet dimensions (W x D x H) including goods overhang; (3) Maximum load weight per pallet; (4) Forklift specifications (minimum aisle width requirement and maximum lifting height); (5) Operating environment temperature range and seismic parameters.

Q6: Do you provide installation guidance and certification for overseas project delivery?

Yes. Every export shipment includes detailed structural assembly drawings, 3D installation diagrams, component marking lists, and anchor bolt torque specifications. For large-scale projects, we provide remote video installation engineering support or dispatch qualified installation supervisors to oversee site assembly and safety commissioning.

Optimize Your Warehouse Capacity & Structural Safety

Partner directly with China's leading smart warehouse pallet racking manufacturer. Get free CAD layout drawings, structural calculations, and factory-direct pricing within 24 hours.
