Engineered Accumulation & Storage Systems
High-performance pallet racking configurations optimized for volumetric efficiency, structural load integrity, and seamless warehouse throughput.
1. Technical Overview: Engineering Principles of Pallet Accumulation Racking
In contemporary intralogistics, pallet accumulation racking systems represent the pinnacle of high-density storage engineering. Designed to eliminate dead aisle space while providing high-volume buffering, accumulation racking leverages specific physics mechanisms—such as inclined gravity flow channels, dynamic push-back cart cascades, or semi-automated radio shuttle tracks—to store pallets multiple positions deep.
Unlike traditional selective racking where each pallet position requires dedicated aisle access, accumulation storage maximizes volumetric cube utilization by consolidating SKUs into deep lanes. As a premier pallet accumulation racking factory and exporter, IronMax Storage Solutions engineers systems engineered precisely for load distribution, structural stability, and structural steel elasticity.
Accumulation systems are categorized into three primary mechanics:
- Dynamic Push-Back Accumulation: Utilizes nested rolling carts operating on inclined structural channels. When a forklift inserts a new pallet, it gently pushes back the existing inventory. Up to 6-pallet deep LIFO (Last-In, First-Out) storage is achieved per beam level.
- Gravity Flow Accumulation: Relies on precision full-width or twin-track brake rollers set at a 3–5% incline. Pallets move smoothly under controlled velocity from the loading face to the picking face, guaranteeing strict FIFO (First-In, First-Out) inventory rotation.
- Radio Shuttle Accumulation: Integrates autonomous battery-powered shuttles inside deep racking channels (up to 40+ pallets deep). The shuttle lifts and transports pallets along internal rails via wireless RF commands, providing ultra-high-density storage with minimal operator intervention.
Core Structural Advantages
Precision cold-roll forming, robotic welding, and advanced electrostatic surface protection deliver structural longevity under heavy industrial duty cycles.
Optimized Structural Geometry
Multi-flange beam profiles and teardrop/omega upright slots engineered to absorb severe kinetic impact while maintaining rigid vertical plumbness.
Corrosion & Wear Resistance
Thermosetting epoxy powder coating (60-80 microns thickness) and optional hot-dip galvanizing for cold storage, humid, and coastal environments.
Seismic & Dynamic Certification
FEA finite element analysis calibrated for seismic zones, featuring heavy-duty anchor plates, footings, and structural sway bracing systems.
2. Storage Architecture Comparison Matrix
Selecting the optimal high-density pallet storage topology requires balancing floor footprint, SKU diversity, handling speed, and capital equipment expenditure. The matrix below contrasts primary industrial racking architectures engineered by IronMax:
| Racking Architecture | Storage Density | Selectivity | Flow Mechanism | Max Lane Depth | Optimal Application |
|---|---|---|---|---|---|

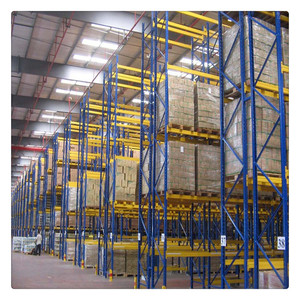

| Selective Pallet Racking | Standard (40-50%) | 100% Direct Access | FIFO / LIFO | 1 Pallet | High SKU variety, fast pick frequency |
| Double Deep Racking | Medium (60-65%) | 50% Immediate Access | LIFO | 2 Pallets | Medium SKU counts, paired pallet lots |
| Push-Back Accumulation | High (70-75%) | Per-Lane Selectivity | LIFO | 2 - 6 Pallets | Medium SKU volume, cold storage buffering |
| Radio Shuttle System | Ultra-High (85-90%) | Per-Channel Selectivity | FIFO or LIFO | 40+ Pallets | Massive volume per SKU, automated DC fulfillment |
| Drive-In / Drive-Thru | High (75-80%) | Low Selectivity | LIFO / FIFO | 10+ Pallets | Homogeneous bulk goods, long-term storage |
3. Future Procurement & Industry Development Trends (2025–2030)
As global logistics modernizes, B2B procurement directors and industrial enterprise planners must anticipate shifts in warehouse automation, sustainability mandates, and structural material advancements. IronMax research identifies four critical trends shaping the next decade of pallet accumulation storage:
Trend 1: Convergence of Accumulation Racking with Autonomous Mobile Robots (AMRs)
Traditional static racking is increasingly giving way to dynamic hybrid structures designed specifically for AMR and AGV interface. Pallet accumulation racks are being manufactured with optical guidance tracks, magnetic alignment strips, and standardized entry funnels. Shuttle channels now integrate sensors that communicate directly with warehouse management systems (WMS) to report real-time occupancy and weight distribution.
Trend 2: Cold Chain Energy Optimization via Volumetric Density
With electricity costs rising globally, cold storage operators are aggressively replacing standard selective racks with high-density push-back and radio shuttle accumulation systems. By achieving up to 85% cube utilization, cold storage facilities reduce thermal loss per pallet position by as much as 40%, directly lowering operating expenses and carbon footprint.
Trend 3: Material Decarbonization and Recyclability
European and North American buyers are increasingly demanding environmental product declarations (EPDs). The steel industry is shifting toward green steel manufactured using hydrogen direct reduction and electric arc furnaces (EAF). IronMax is committed to utilizing sustainably produced cold-rolled steel and zero-VOC powder coatings, giving importers a structural compliance edge in carbon reporting.
Trend 4: Modular Modularization & Rapid Site Assembly
Turnkey construction schedules are tighter than ever. Modern accumulation systems utilize boltless beam connectors, pre-assembled cart cassettes, and modular rail splices that cut field installation time by up to 35%. This modularity enables enterprises to reconfigure racking structures when SKU dynamics change.
4. Manufacturing Rigor & Enterprise Expertise: IronMax Storage Solutions
Headquartered in Jining, Shandong Province, China, IronMax Storage Solutions Co., Ltd. operates as a fully integrated manufacturer and global exporter of industrial storage equipment. With an engineering team exceeding 120 specialists, our production facility houses advanced automated cold-roll forming lines, multi-axis robotic welding cells, and fully automated electrostatic powder coating plants.
Our engineering methodology adheres strictly to international industrial standards including ISO 9001 quality management, CE certification, and ANSI MH16.1 specifications. Every project undergoes thorough finite element stress modeling before steel strip slitting and roll forming begin.
In-House Manufacturing
From raw steel coil inspection to final component bundling, all forming, punching, welding, and coating processes occur under one roof, guaranteeing strict dimensional tolerances.
Turnkey Layout Engineering
Our engineering team provides comprehensive CAD layout proposals, floor slab point-load calculations, and 3D space visualizations based on your warehouse architectural plans.
Export Packing & Logistics
Heavy upright frames and beams are strapped in protective steel bundles, while hardware components ship in export-grade cartons, ensuring zero damage during ocean transport.
Frequently Asked Questions (FAQ)
Detailed technical insights for procurement managers, logistics engineers, and facility directors.
Q1: What is the maximum load capacity per beam level for IronMax accumulation racking?
Standard heavy-duty selective pallet racking beams support loads ranging from 500 kg up to 4,000 kg per beam level. Push-back cart accumulation systems are engineered to handle up to 5,000 kg per level (1,000 kg to 1,500 kg per pallet position). Final beam cross-section profile, wall thickness, and upright frame depth are calculated by our structural engineers according to your operational specifications.
Q2: Should I select epoxy powder coating or a hot-dip galvanized finish?
Epoxy powder coating provides superior impact resistance, aesthetic customization, and excellent durability for standard ambient indoor warehouses. Hot-dip galvanizing (HDG) or pre-galvanized steel is recommended for sub-zero cold storage facilities (-30°C), high-humidity environments, outdoor agricultural sheds, or chemical processing plants requiring aggressive corrosion resistance.
Q3: How does push-back accumulation racking compare with drive-in racking?
Push-back racking allows forklift drivers to stay in the main aisle, loading and unloading pallets from nested rolling carts without driving into the rack structure. This eliminates driver hazard and structural collision damage common in drive-in racking. Furthermore, push-back racking offers independent lane access per level, dramatically improving SKU selectivity compared to deep drive-in bays.
Q4: Can IronMax design custom racking structures based on building CAD drawings?
Yes. Our engineering department specializes in custom site layout engineering. Simply provide your building CAD files or floor plan dimensions, clear ceiling heights, building column grids, forklift specifications (turning radius, maximum lift height), and pallet details (width, depth, height, weight). We will return a complete architectural CAD layout, load capacity calculation sheet, and commercial quotation.
Q5: What international safety standards and quality certifications do your racking systems meet?
IronMax storage systems are designed and tested in compliance with European FEM 10.2.02 and EN 15512 codes, American RMI (Rack Manufacturers Institute) / ANSI MH16.1 standards, and Australian AS4084-2012 specifications. Our manufacturing facilities are certified to ISO 9001:2015 Quality Management Systems and CE marking requirements.
Q6: How are pallet accumulation components packaged to prevent damage during sea transport?
Uprights and beams are bound in high-tensile steel-strapped bundles with heavy protective corrugated corner covers and plastic film wrap. Small hardware, footplates, safety lock pins, and floor anchors are packed in heavy-duty wooden crates or reinforced cardboard cartons. Container loading is computer-modeled to optimize volume while preventing shifting during transit.
