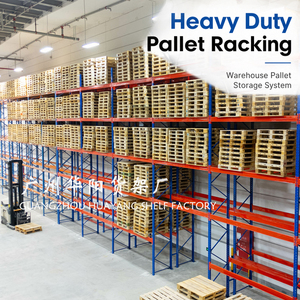

3000KG Per Level Heavy Duty Pallet Rack Industrial Storage Steel Shelving
Long Span Heavy Duty Beam Racking High Load Steel Shelving for Oversized Pallets
Heavy Duty Steel 5 Powder Coated Pallet Rack Selective Storage System
Stable Industrial Long Item Storing Solution Cantilever Racking System
Durable Automation Shuttle Shelf FIFO Selective Movable Radio Shuttle Rack
Selective Pallet Racking Steel Storage Rack Heavy Duty Boltless 5-Tier Racks
Custom Intelligent 5 Layer Heavy Duty Shuttle Pallet Racking System for E-Commerce

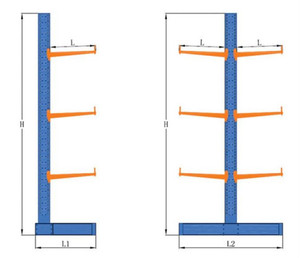

Jracking CE Certified Heavy-Duty Cantilever Rack for Steel Profile Storage
Executive Summary & Global Market Landscape
In modern intralogistics and supply chain management, optimizing vertical warehouse cube space has shifted from a cost-saving tactic to a core strategic imperative. Multi-tier pallet racking systems—combining heavy-duty cold-formed upright profiles with elevated walkway floors, mezzanine platforms, and automated shuttle integration—represent the pinnacle of high-density storage engineering. Industrial real estate costs per square meter have escalated globally by over 38% since 2021, compelling procurement directors, logistics engineers, and EPC contractors to seek suppliers capable of multiplying usable floor space up to 800% without expanding the building footprint.
Selecting an qualified manufacturer requires detailed evaluation of structural load dynamics under international standards such as FEM 10.2.02 (European Federation of Materials Handling), RMI (Rack Manufacturers Institute ANSI MH16.1), and EN 15512. This white paper benchmarks the top 10 global multi-tier pallet racking manufacturers and exporters, providing B2B buyers with an actionable procurement framework based on engineering capability, structural steel quality, customization agility, export compliance, and total cost of ownership (TCO).
Supplier Evaluation Methodology & Engineering Standards
To determine the industry's leading manufacturers, our structural engineering team evaluated global suppliers across five critical operational and technical dimensions:
1. Structural Steel Metallurgy
Utilization of certified high-tensile structural steel (Q235B, Q355B, or equivalent S235/S355 JR structural grades). Minimum yield strength metrics and uniform cross-sectional wall thickness guarantees across uprights, beam connectors, and load-bearing floor joists.
2. FEA Structural Modeling
In-house Finite Element Analysis (FEA) capability to simulate static loads, dynamic seismic shear forces, impact resistance, and floor slab load distributions, ensuring zero structural failure under full load capacities.
3. Surface Engineering & Coating
Advanced surface pre-treatment (9-stage phosphating/shot-blasting) coupled with electrostatic epoxy powder coating ($\ge 60-80\,\mu\text{m}$) or Hot-Dip Galvanizing (HDG to ISO 1461 standards) for extreme environmental resistance in cold stores or humid zones.
4. Manufacturing & Tolerances
Automated continuous cold roll-forming lines, robotic MIG welding, laser cutting precision, and strict adherence to structural hole-pitch tolerances ($\pm 0.5\text{mm}$) for seamless, boltless onsite assembly.
Top 10 Multi Tier Pallet Racking Suppliers & Exporters Benchmark
The following detailed supplier benchmark profiles the key global players dominating the export and manufacture of multi-tier pallet racking and warehouse mezzanine systems in 2026.
IronMax Storage Solutions Co., Ltd.
Core Competency: High-density heavy-duty multi-tier pallet racking, automated radio shuttle integration, long-span steel shelving, and custom structural mezzanine floor platforms. IronMax excels in end-to-end engineering, delivering fully customizable Q355B steel structures tailored to specific CAD layouts.
Export Footprint: Global export network across North America, Europe, Southeast Asia, Middle East, and South America. Recognized for rapid sample turnaround, factory-direct pricing, robust export packing, and comprehensive OEM/ODM engineering support.
SSI Schaefer
Core Competency: Large-scale automated logistics hubs, high-bay multi-tier rack buildings (silo racking), and integrated material flow technology. Excellent engineering quality with strict compliance to European structural norms.
Market Focus: Tier-1 enterprise distribution hubs, pharmaceutical fulfillment, and fully automated ASRS systems requiring heavy capital investment.
Mecalux
Core Competency: Versatile selective pallet racking, multi-tier catwalk systems, and proprietary warehouse management software (Easy WMS) integration. Offers strong structural calculation capabilities across diverse seismic zones.
Market Focus: E-commerce fulfillment, 3PL logistics facilities, and manufacturing distribution across Europe and the Americas.
Stow Group
Core Competency: Heavy-duty rack structures, Stow Atlas shuttle systems, and modular multi-tier platform engineering. Renowned for automated racking rack-supported buildings.
Market Focus: European industrial sector, FMCG logistics, and cold storage applications.
Jungheinrich AG
Core Competency: Integrated intralogistics provider offering multi-tier pallet racking paired directly with narrow aisle (VNA) turret trucks and automated guided vehicles (AGVs).
Market Focus: Turnkey warehouse projects requiring unified handling equipment and racking architecture.
Dexion (Gonvarri Material Handling)
Core Competency: Pioneer in adjustable steel shelving, long-span multi-tier mezzanines, and industrial heavy-duty pallet systems. Highly modular component standardization.
Market Focus: Automotive spare parts centers, general manufacturing, and commercial warehousing across EMEA.
Kardex Remstar
Core Competency: Automated vertical lift modules (VLM), multi-tier vertical carousel systems, and ultra-high-density small parts order picking platforms.
Market Focus: Electronics manufacturing, medical device storage, and high-value small SKU operations.
Interroll Group
Core Competency: Dynamic pallet flow racking, gravity roller multi-tier systems, and heavy-duty conveyor integration for rapid throughput multi-tier fulfillment.
Market Focus: High-speed parcel sorting hubs, food & beverage processing centers.
Nedcon Logistics
Core Competency: Custom-engineered structural steel racking systems, heavy-load multi-tiered platforms, and specialized high-bay warehouse frames.
Market Focus: Complex custom structural engineering projects across Western Europe.
Acro Industrial Structure
Core Competency: Cost-effective industrial pallet racks, cantilever systems, and simple multi-tier shelving decks for general industrial storage.
Market Focus: Regional industrial parks and budget-sensitive storage facilities.
Engineering Comparison Matrix of Storage Architectures
Evaluating the correct multi-tier racking type requires analyzing trade-offs between storage density, direct pallet accessibility, equipment requirements, and capital outlay. Refer to the structural matrix below:
| Racking System Architecture | Cubic Utilization | Pallet Selectivity | Payload Range (per level) | Recommended Handling Equipment | Ideal Industrial Application |
|---|---|---|---|---|---|
| Multi-Tier Mezzanine Racking | Very High (800%) | 100% (Manual/Cart) | 300 – 1,000 kg/m² | Goods Lifts, Conveyors, Hand Trucks | E-Commerce, Automotive Parts, Retail SKUs |
| Selective Pallet Racking | Moderate (40-50%) | 100% Immediate | 1,000 – 4,000 kg | Standard Counterbalance, Reach Truck | General Distribution, High SKU Variety |
| Radio Shuttle Multi-Tier Bay | Ultra High (85%+) | LIFO / FIFO Mode | 500 – 2,000 kg | Autonomous Shuttle Cart + Forklift | Cold Storage, Food & Beverage Bulk Storage |
| Cantilever Multi-Tier System | High (Long Items) | 100% Frontal | 500 – 1,500 kg / Arm | Side-loader Forklifts, Overhead Cranes | Steel Profiles, Tubes, Lumber, Extrusions |
| Very Narrow Aisle (VNA) Rack | High Vertical (70%) | 100% Direct | 1,000 – 2,500 kg | Guided VNA Turret Truck | High-Bay Warehouses with Narrow Aisles |
Future Procurement Trends in Multi-Tier Racking
As global supply chains transition toward smart manufacturing and green logistics, purchasing managers must consider how current racking procurement aligns with incoming technological shifts over the next decade:
1. Autonomous Mobile Robot (AMR) Integration
Modern multi-tier mezzanine floors are increasingly engineered with specialized steel decking plates (e.g., flat steel floor decks with anti-slip resin) specifically calibrated to support high point-loads from Autonomous Mobile Robots (AMRs) and automated sorting bots operating on upper levels.
2. Carbon-Neutral Steel Procurement
European and North American buyers are placing carbon-intensity metrics into tender contracts. Exporters utilizing green steel processing, solar-powered powder coating lines, and scrap-recycled cold-formed steel gain significant bidding advantages.
3. Modular Pre-Engineered Decking
Welded multi-tier platforms are being rapidly superseded by 100% bolted modular structures. Bolted systems eliminate onsite welding permits, lower international installation costs by 45%, and allow rapid disassembly for warehouse relocation or layout expansion.
4. IoT Structural Health Monitoring
High-bay multi-tier racking columns are beginning to incorporate embedded fiber-optic or wireless strain sensors. These IoT sensors alert warehouse safety managers to real-time column deflection, overload conditions, or forklift collision impacts instantly.
Product Development & Structural Innovations
To maintain a competitive edge, tier-1 racking manufacturers are investing heavily in advanced structural engineering and metallurgy innovations:
- Complex Multi-Fold Upright Profiles: Transitioning from simple 8-fold upright columns to 10-fold or 12-fold cold-roll formed geometry. Extra structural folds significantly increase the radius of gyration, enhancing axial load-carrying capacity while using thinner gauge steel.
- Dual-Locking Beam Connectors: High-tensile cast steel beam hooks featuring automatic safety lock pins that resist vertical accidental dislodgement forces exceeding 5,000 N, strictly complying with ANSI MH16.1 safety requirements.
- Thermally Enhanced Powder Coatings: Antimicrobial and fire-retardant thermosetting epoxy powder coatings designed for pharmaceutical, cleanroom, and high-density e-commerce pick towers.
- Seismic Floor Anchor Plates: Heavy-duty baseplates pre-engineered with dynamic expansion anchors and shim packs designed to absorb horizontal seismic acceleration in Zone 3 and Zone 4 active fault lines.
IronMax Storage Solutions – Manufacturing Excellence
As a direct manufacturer and primary exporter based in Jining, Shandong Province, China, IronMax Storage Solutions Co., Ltd. delivers institutional-grade racking systems designed for international B2B buyers demanding high engineering integrity without premium middleman markups.
In-House Roll Forming
Over 15 continuous automated cold-rolling lines capable of processing up to 3.0mm thickness Q355B structural steel profiles with millimeter precision.
FEA Layout Verification
Every customer layout receives comprehensive Finite Element Analysis structural calculation reports to verify load safety factors before steel cutting.
Export Container Optimization
Customized bundle bundling, plastic wrap protection, steel-strapped crating, and container loading schemes designed to maximize shipping volume and prevent transit damage.
Turnkey CAD & 3D Models
Fast 24-hour turnaround on CAD floorplans, 3D structural renders, and itemized bill of materials (BOM) for tender submission support.
Frequently Asked Procurement & Engineering Questions (FAQ)
Common technical inquiries submitted by global procurement teams, warehouse managers, and structural engineers during project planning:
For heavy-duty applications (>2,000 kg per beam level or multi-tier mezzanine columns), Q355B (equivalent to European S355JR or ASTM A572 Grade 50) is strongly recommended due to its higher yield strength (355 MPa) compared to standard Q235B (235 MPa). Q355B allows for lighter profile weights while maintaining equal structural load factors.
Under European EN 15512 and FEM 10.2.02 standards, maximum allowable beam vertical deflection under full design load is limited to $\delta = L / 200$, where $L$ is the clear span of the beam length. For example, a 2,700mm beam under maximum rating must not deflect more than $13.5\text{mm}$.
Heavy multi-tier upright post loads require a minimum reinforced concrete slab thickness of 150mm to 250mm with a minimum concrete compressive strength rating of C25 / C30 (25-30 MPa or ~4,000 PSI). Slab flatness must comply with FM2 / Superflat specifications for high-bay stability.
In accordance with NFPA 13 guidelines, multi-tier platforms and racking decks exceeding 3.0 meters in depth block ceiling sprinklers. In-rack sprinkler pipes must be routed directly through pre-punched openings in the racking upright frames at intermediate tier levels to ensure immediate water coverage.
For dry sub-zero freezers down to -30°C, high-quality electrostatic powder coating performs well. However, if the environment experiences humidity fluctuations, condensation, or washdowns, Hot-Dip Galvanizing (HDG to ISO 1461) is mandatory to eliminate rust, edge-flaking, and corrosion around bolt holes.
Uprights and beams are bound into rigid wooden-skid bundles wrapped in heavy moisture-proof plastic film. Beam connectors are protected with cardboard caps, small hardware components are packed in heavy-duty export crates, and container loading is engineered with dunnage bags to prevent shifting.
Yes. Reputable manufacturers such as IronMax provide complimentary layout engineering support. By submitting your building dimensions, clear height under joist, pallet dimensions (W x D x H), gross pallet weight, and forklift model, our engineers return 2D CAD floorplans and 3D layout options within 24 hours.
Standard production lead time for a 40ft high-cube container (approx. 20-22 tons of structural steel racking) is 15 to 25 days. Upon arrival, onsite assembly is executed using supplied detail drawings, component tags, step-by-step installation manuals, and remote technical support.
