Featured Industrial Pallet Racking Systems
High-performance selective, boltless, and multi-tier pallet racking systems custom-manufactured to precise load configurations and structural safety standards.
Customizable Boltless Shelving Steel Storage Stacking Racks Shelves Double Deep Selective Pallet Racking for Warehousing
Get a Quote

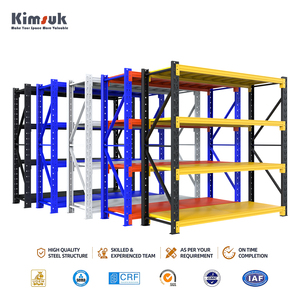

Boltless Adjustable Heavy Duty Load-Bearing 500kg/Layer Steel Racks Warehouse Industrial Stack Storage Racking Shelving System
Get a Quote

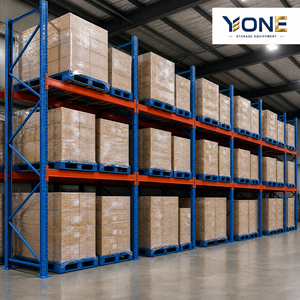

Selective Pallet Racking System Steel Storage Rack Heavy Duty Boltless Adjustable 5-Tier Industrial Racks
Get a Quote
Industrial Detachable Commercial Adjustable Pallet Vertical High Quality Stillage Pallet Storage Rack
Get a Quote
Steel Rack System Heavy Duty Pallet Racking 4000kg Warehouse Storage Rack System 5-Tier Adjustable Industrial Racks
Get a Quote
Heavy Duty Storage Rack Pallet Rack System Shelf For Industrial Storage Rack
Get a Quote
CE Certified 150㎡ Steel Platform Floor System High Density Industrial Manufacturers Warehouse Storage Mezzanine Platform
Get a Quote
Technical Authority
Engineering Leadership in Industrial Storage Systems
IronMax Storage Solutions Co., Ltd. delivers high-load structural steel pallet racking systems engineered for maximum safety, seamless scalability, and optimized cubic space utilization.
5,000kg
Max Beam Load Capacity
Q355B
High-Tensile Cold Steel
120+
Engineers & Specialists
EN 15512
Structural Compliance
Custom OEM/ODM Manufacturing Capabilities
As a direct manufacturer based in Jining, Shandong Province, IronMax operates advanced multi-pass continuous cold-roll forming production lines, robotic metal welding cells, and automated electrostatic powder coating systems. We provide custom length upright frames, tailored load-beam profiles (box beams, step beams, and interlocking structural beams), and versatile pitch adjustment options (50mm, 75mm, and 76.2mm imperial spacing).
Our OEM/ODM engineering team performs Finite Element Analysis (FEA) to simulate complex stress-strain behaviors under full static load, dynamic forklift impact, and seismic activity profiles compliant with FEM 10.2.02 and RMI standards.
Metallurgical Integrity & Safety Compliance
We source certified structural carbon steel coils (Q235B and Q355B equivalent to ASTM A1011 Grade 50) guaranteeing minimum yield strengths of up to 355 MPa. Each beam connector claw features an integrated automatic safety locking pin engineered to withstand accidental vertical upward impacts exceeding 1,800 kg per beam end.
Whether your project demands heavy-duty selective pallet racking, deep-reach push-back systems, or multi-tier steel structure mezzanine floors, our structural designs undergo strict structural load verification to maintain maximum safety deflection limits below L/200 under maximum rated payload.
White Paper Analysis
Adjustable Pallet Racking Technical Selection Matrix
Evaluate structural specifications, load dynamics, and material configurations across our enterprise adjustable pallet racking lines to optimize your warehouse architectural design.
| Racking Architecture | Payload Capacity (Per Level) | Upright Profile Options (mm) | Pitch Adjustability | Surface Treatment Finish | Optimal Handling Equipment |
|---|---|---|---|---|---|
| Heavy-Duty Selective Racking | 1,000 kg – 4,000 kg | 80×60, 90×70, 100×70, 120×95 | 50mm / 75mm / 76.2mm | Epoxy Powder Coating (60-90μm) | Counterbalance & Reach Trucks |
| Double Deep Pallet Racking | 1,500 kg – 3,200 kg | 90×70, 100×70, 120×95 | 50mm / 75mm | Powder Coating / Hot-Dip Galv. | Deep-Reach Pantograph Forklifts |
| Very Narrow Aisle (VNA) | 1,000 kg – 2,500 kg | 90×70, 100×70, 120×95 | 50mm Pitch | Pre-Galvanized / Epoxy Coat | VNA Man-Up Turret Trucks / Wire-Guided |
| Push-Back Cart Racking | 500 kg – 5,000 kg | 100×70, 120×95, Heavy Structural | 75mm Pitch | Heavy Duty Powder Coating | Standard Reach Forklifts (LIFO Flow) |
| Radio Shuttle High-Density | 1,000 kg – 2,000 kg | 90×70, 100×70, 120×95 | 50mm Pitch | Galvanized Rails + Powder Frame | Semi-Automated Pallet Shuttle Carts |
| Multi-Tier Mezzanine Platform | 300 kg – 1,200 kg/m² | Structural I-Beam & Box Columns | Custom Height Bays | Anti-Slip Galvanized Floor Decking | AGVs, Vertical Conveyors, Order Pickers |
Technology Trends
Future Trends in Industrial Pallet Racking Engineering
The rapid transformation of global warehousing demands next-generation structural rack designs that integrate seamlessly with automation, IoT monitoring, and sustainable manufacturing processes.
1. Integration with AMRs and AGVs
Traditional pallet racking is evolving to accommodate autonomous mobile robots (AMRs) and automated guided vehicles (AGVs). Modern OEM racking systems feature reinforced lower upright guards, recessed floor anchors, and high-precision structural tolerances (within ±1.5mm deflection) to enable optical guidance sensors and automated pickers to execute collision-free loading cycles.
2. Structural IoT Load & Strain Sensors
Smart racking infrastructure now incorporates strain-gauge sensors embedded directly into high-stress beam-column connectors. Real-time telemetry alerts logistics managers to accidental impact deformation, floor settlement displacement, or overload conditions before structural fatigue or localized buckle failure can occur.
3. Low-Carbon Green Steel Manufacturing
With global ESG compliance mandates taking effect, IronMax utilizes scrap-recycled electric arc furnace (EAF) steel coils coupled with zero-VOC thermoplastic thermosetting epoxy powder coatings. This reduces the embodied carbon footprint of our racking systems by up to 28% compared to blast-furnace processing while extending corrosion protection in cold-room freezers down to -30°C.
Procurement Strategy
B2B Purchasing & Total Cost of Ownership (TCO) Guide
Selecting an enterprise OEM/ODM racking supplier requires analyzing direct material costs, shipping volume efficiency, installation speed, and long-term structural durability.
Understanding Key Cost Drivers in Racking Sourcing
Initial unit price represents only a fraction of the total project expenditure. Major factors affecting lifetime performance include:
- Steel Grade vs. Wall Thickness: Engineered profiles using high-tensile Q355B steel achieve equal beam capacity with thinner walls, significantly lowering freight weight and landed cost.
- Container Loading Density: Custom knock-down (KD) upright frames and nested box beams maximize 40ft High-Cube container volume, lowering sea-freight cost per pallet position by up to 22%.
- Surface Coating Longevity: Powder coat adhesion tested to ISO 2409 Class 0 prevents flaking, rust propagation, and costly rack replacement cycles in humid environments.
OEM/ODM Customization Protocol
To ensure seamless project deployment, our engineering office executes a standardized 4-step technical clearance protocol before mass fabrication:
STEP 01
Data Intake & CAD Layout:
Assessment of floor slab capacity, building clear height, pallet dimensions ($W \times D \times H$), and forklift turning radius.
STEP 02
Structural Modeling & FEA:
Stress calculation under localized load, wind load, and seismic coefficient vectors.
STEP 03
Sample Component Qualification:
Destructive load testing of beam-claw connectors and upright column welds.
STEP 04
Full Batch Production & QA:
Traceable heat-number tagging, automated welding, and export bundle strapping.
Factory Capabilities
IronMax Manufacturing Excellence & Quality Control
Operating state-of-the-art production infrastructure, IronMax Storage Solutions delivers certified safety, rapid lead times, and global installation support.
In-House Production Base
Located in Jining, Shandong Province, our 50,000+ m² facility houses 16 automated cold-roll lines, multi-axis robotic welding stations, and specialized metal fabrication tooling, guaranteeing precision dimensional control across every batch.
Rigorous QA/QC Inspections
Every order undergoes 100% component testing: raw material ultrasonic flaw detection, weld seam penetration checks, coating thickness measurement (Elcometer standard), and full mock-up test assembly before export container loading.
Global Logistics & On-Site Support
We supply OEM racking systems to over 60 countries. Each shipment includes color-coded assembly blueprints, detailed 3D step-by-step installation manuals, and optional on-site engineering supervision for major projects.
Buyer Knowledge Base
Frequently Asked Procurement Questions
Technical details, load parameters, shipping terms, and installation guidelines for enterprise warehouse equipment buyers.
Q: What is the maximum load capacity per beam level in IronMax pallet racking?
Standard selective pallet racking carries from 500 kg up to 4,000 kg per beam level, while specialized push-back and heavy-duty structural beam systems can support up to 5,000 kg per level. Final load capacity is mathematically verified by our structural engineers based on upright column thickness, beam span length, pallet weight distribution, and localized seismic coefficient factors.
Q: How do I determine whether to specify epoxy powder coating or hot-dip galvanizing?
Thermoplastic epoxy powder coating (60–90 microns thickness) is ideal for standard indoor ambient distribution centers, offering high impact resistance and custom corporate color coding. Hot-dip galvanizing (HDG) compliant with ISO 1461 is required for cold-storage freezers (-30°C), outdoor staging areas, high-humidity chemical facilities, or coastal marine environments to prevent rust and oxidation.
Q: Can IronMax design custom layout drawings from my warehouse architectural plan?
Yes. Simply send your DWG/CAD architectural drawings or building dimensions (length, width, clear height under joists), pallet size ($W \times D \times H$), pallet load weight, forklift model, and lifting height. Our engineering team will return a complete 2D/3D layout proposal, beam elevation detail, and structural bill of materials within 24 hours.
Q: Which standard pallet racking systems comply with international safety regulations?
All IronMax pallet racking systems are designed, calculated, and manufactured in accordance with European structural code EN 15512 (FEM 10.2.02), American RMI (ANSI MH16.1) guidelines, and Australian standard AS4084-2012. Factory manufacturing processes are ISO 9001:2015 certified, and products carry CE conformity marking for European import compliance.
Q: How are heavy pallet racking components packaged to prevent damage during sea transport?
Upright frames and horizontal load beams are tightly bundled with high-tensile steel strapping, corner edge protectors, and waterproof plastic shrink wrap. Frame feet, beam safety pins, anchor bolts, and shims are packed in heavy-duty wooden crates or triple-wall cardboard export boxes. Container floor loading is mathematically optimized to prevent shifting during transit.
Q: What is the typical lead time for custom OEM/ODM pallet racking production?
Standard production lead time is 15 to 20 business days from technical drawing sign-off and deposit receipt for standard container volumes (1 to 5 x 40ft HQ). Large-scale projects requiring custom cold-roll tooling profiles or hot-dip galvanizing finishes are dispatched within 25 to 30 days.
Q: Does IronMax provide installation assistance for overseas projects?
Every project order includes numbered component tagging, detailed 2D elevation blueprints, step-by-step structural assembly guides, and video walk-throughs. For large distribution hub installations, we provide remote real-time video engineering support or dispatch qualified installation supervisors to oversee your local assembly crew.
Optimize Your Warehouse Layout & Storage Density Today
Consult with an experienced IronMax structural engineer to receive custom CAD layout drawings, load calculations, and a direct OEM factory quote within 24 hours.
