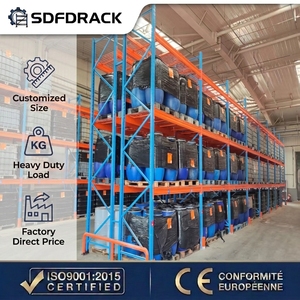

Chemical Raw Material Steel Storage Drum Racks High Load Solution

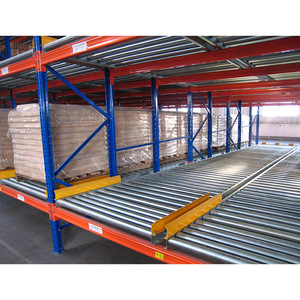

FIFO High Efficient Warehouse Gravity Pallet Flow Roller Racking
Q235/Q355 Powder Coated Single/Double Deep 4-Tier Pallet Storage Rack

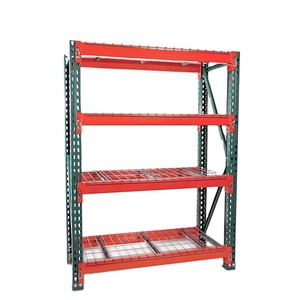

USA Standard Teardrop Pallet Rack System With Flare Wire Mesh Deck
Heavy Duty EU Blue & Orange Selective Pallet Racking CE Certified

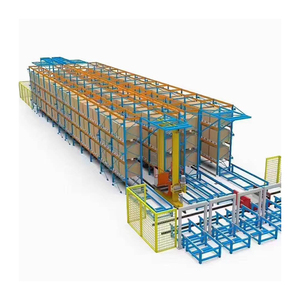

Anti-Leakage Steel 5-Layer Metal Deck Board Storage Rack (2000kg Load)
CE Certified Safety Guardrail High-Level Pallet Beam Racking System

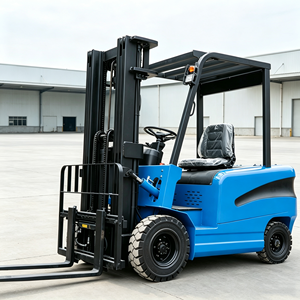

Heavy Duty Electric Forklift Counterbalance Li-Ion Truck 1.5T-5T
Structural C-Channel vs. Roll-Formed Pallet Racking: Mechanical Superiority Analysis
In high-density material handling environments, warehouse infrastructure managers face a critical decision during system specification: choosing between traditional cold-formed sheet metal teardrop racking and hot-rolled structural C-channel steel racking. As a leading custom OEM structural pallet racking supplier and exporter, IronMax Storage Solutions Co., Ltd. provides an engineering-grade evaluation of mechanical performance, yield stress tolerance, and long-term TCO (Total Cost of Ownership).
1. Structural Dynamics & Forklift Impact Resistance
Forklift impacts represent over 84% of structural damage incidents in distribution centers. Cold-formed steel uprights, manufactured by roll-forming thin sheets of coiled steel, rely entirely on geometry for strength. Once a forklift fork punctures or creases the outer lip of a cold-formed upright column, the structural integrity drops exponentially, leading to catastrophic frame collapse risks under rated load capacity.
Conversely, hot-rolled structural channel uprights feature thick solid flange walls (ranging from 5mm to 10mm structural thickness). In high-impact lower-level zones, structural columns absorb dynamic shear forces without structural buckling. OEM customization options allow for integrated heavy-gauge structural bullnose deflectors welded directly to the base column, removing the need for superficial plastic aftermarket guards.
| Structural Parameter | Hot-Rolled Structural C-Channel | Cold-Formed Teardrop Racking | OEM Custom Advantage |
|---|---|---|---|
| Steel Metallurgy | Structural Channel (ASTM A36 / Q355B) | Cold-Rolled Sheet (ASTM A1011) | Higher Tensile Strength & Ductility |
| Flange/Wall Thickness | 5.0mm – 12.0mm Heavy Duty | 1.5mm – 2.5mm Thin Wall | 400% Greater Impact Toughness |
| Beam Connection | Heavy Structural Bolts (Grade 8.8) | Snap-In Teardrop Pins | Zero Beam Dislodgement Risk |
| Freezer (-30°C) Performance | Immune to Cold-Temperature Embrittlement | Prone to Stress Cracking at Welds | Hot-Dip Galvanized Coating (ISO 1461) |
| Seismic Shear Capacity | High Moment Frame Rigidity | Requires Extensive Cross-Bracing | Engineered Baseplates & Heavy Anchors |
2. Structural Beam Connection Mechanics
The connection between the horizontal beam and the vertical upright column dictates the overall lateral stability of the rack structure. Structural pallet racking systems utilize heavy structural end-plates bolted securely with high-tensile Grade 8.8 or Grade 10.9 structural bolts. This rigid bolted connection creates a semi-rigid frame capable of resisting high seismic forces and asymmetrical loading conditions. Cold-formed snap-in connectors can shear under heavy dynamic impact, whereas structural bolted connections ensure zero beam dislodgement during intensive operational cycles.
Future Sourcing & Technology Trends in Heavy-Duty Racking (2025–2035)
How global supply chain evolution, warehouse automation, and green steel initiatives are reshaping enterprise racking specifications.
1. Hybrid Structural-ASRS Integration
As warehouses scale upwards to 20-30 meters clear height, procurement teams are migrating toward hybrid rack structures. These combine heavy hot-rolled structural steel lower levels (handling high-speed AGV traffic and high impact) with precision-machined cold-formed upper levels, maximizing structural stiffness while reducing total superstructure deadweight.
2. Smart Racking & IoT Strain Monitoring
Future OEM procurement standards demand real-time safety compliance. Advanced structural racking modules now embed fiber-optic strain gauges and piezoelectric shock sensors directly into critical upright columns. Facility managers receive instant alerts if structural deflection exceeds L/240 or if an unrecorded forklift impact occurs.
3. Low-Carbon Green Steel Sourcing
ESG regulations in Europe and North America (Scope 3 supply chain emissions reporting) mandate verified EPDs (Environmental Product Declarations). Modern structural racking manufacturing leverages Electric Arc Furnace (EAF) steel produced with recycled scrap metal, cutting carbon footprints by up to 60% compared to traditional blast-furnace processing.
IronMax Custom Manufacturing & Global OEM Integration
Delivering tailored structural warehouse storage solutions from our state-of-the-art production base in Shandong, China.
Custom Structural Profile Engineering
Every industrial project has unique structural boundaries. IronMax Storage Solutions offers bespoke OEM manufacturing services, allowing global distributors and EPC contractors to specify exact structural steel profiles:
- Column Sections: Structural C-Channels (C3, C4, C5 profiles) with customized wall thickness up to 12mm.
- Structural Beams: Structural I-Beams, Structural Channels, and Custom Step Beams with heavy-duty 4-bolt or 6-bolt end connection plates.
- Custom Pitch & Punching: Standard 50mm, 75mm, 76.2mm (3-inch), or fully customized structural hole patterns for specialized accessories.
- Surface Treatments: High-durability thermosetting epoxy powder coating (80-120 microns) or Hot-Dip Galvanizing per ISO 1461 for outdoor chemical storage and sub-zero cold rooms.
Quality Control & Structural Verification
Our engineering laboratory conducts rigorous mechanical and non-destructive testing on every batch of structural steel components before export clearance:
- Finite Element Analysis (FEA): Computer simulation of frame buckling, sway deflection, and seismic load distribution according to RMI ANSI MH16.1 & EN 15512 standards.
- Steel Metallurgy Verification: Spectrometric material analysis to ensure chemical composition matches mill test certificates (MTC Q235B / Q355B / ASTM A36).
- Weld Integrity Testing: Robotic MIG welding inspected via Ultrasonic and Dye Penetrant testing for zero defect rates across high-stress beam-to-frame connectors.
- Export Container Packaging: Bundled with steel strapping, edge protectors, and waterproof vapor barriers to guarantee zero transport damage.
Frequently Asked Technical Questions (FAQ)
Detailed answers prepared by senior structural engineers for logistics buyers, project engineers, and supply chain directors.
What is the primary difference between hot-rolled structural racking and cold-formed teardrop racking?
Hot-rolled structural racking is fabricated from solid structural steel C-channels and I-beams (ASTM A36 / Q355B steel), featuring thick structural flanges (5mm to 12mm thick). Cold-formed racking is made from thin sheets of gauge steel bent into shape. Structural racking offers substantially higher impact resistance against forklift damage, superior seismic performance, and higher weight capacities (up to 5,000kg+ per beam level), making it ideal for heavy manufacturing, chemical drum storage, and intense high-turnover warehouses.
How do you calculate frame loading capacities for high-seismic regions?
Our structural engineers execute Finite Element Analysis (FEA) simulations based on local building code parameters (such as IBC in North America or Eurocode 8 in Europe). We factor in vertical dead loads, live pallet loads, forklift impact forces, and ground acceleration values (PGA). We adjust baseplate surface areas, anchor bolt embedment depths, and column bracing patterns to satisfy RMI ANSI MH16.1 structural safety factors.
Which finish should I select: Powder Coating or Hot-Dip Galvanizing?
For standard temperature-controlled indoor distribution centers, electrostatic epoxy powder coating (80-120 microns) offers excellent abrasion resistance, custom color coding, and cost efficiency. For outdoor raw material yards, chemical processing plants, high-humidity coastal zones, or cold storage freezers (-30°C), Hot-Dip Galvanizing (HDG per ISO 1461) is required. HDG forms a metallurgical zinc-steel alloy bond that prevents sub-film rust corrosion even when scratched.
Can IronMax supply custom OEM structural dimensions to match existing warehouse systems?
Yes. As an OEM manufacturer, we design and produce structural columns, beam connectors, and baseplates matching your exact specifications. Send your CAD drawings, required hole pitch (e.g., 50mm, 75mm, or 3-inch centers), column depths, and beam profiles to our engineering team for seamless replacement or expansion of existing racking systems.
What safety accessories are recommended for heavy structural pallet racking systems?
We recommend integrating heavy-duty structural accessories into your racking blueprint: welded structural column bullnose guards, aisle-end heavy pipe barrier guards, heavy wire mesh safety decking, pallet backstops, overhead mesh fall-protection, and drop-in pallet support bars designed for non-standard load units.
How are structural racking components packed and loaded for ocean export shipping?
Structural steel components are exceptionally heavy. Uprights and structural beams are arranged into tight, steel-strapped bundles fitted with heavy wood dunnage and plastic corner protectors. Small parts (bolts, baseplates, shims) are packed in heavy-duty reinforced wooden crates or double-walled corrugated cartons on pallets. Container loading is planned using CAD software to optimize weight distribution and prevent shift damage inside 20GP or 40HQ containers.
