Engineered Multi-Level Storage Systems
Custom OEM Heavy-Duty Pallet Racks, Mezzanine Platforms & Specialized Industrial Racking

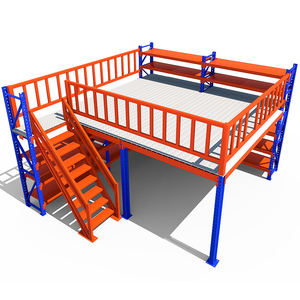

Steel Structure Mezzanine Floor Rack Platform

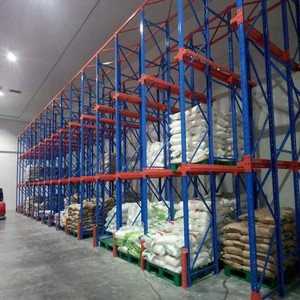

Forklift Drive-in Pallet Rack Heavy Duty Steel 5-Layer Durable Storage System for Reach Truck Counterbalance Forklift

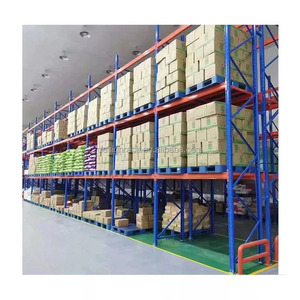

Customized OEM Warehouse Storage Solution Steel Pallet Racking System Factory Direct Pallet Rack

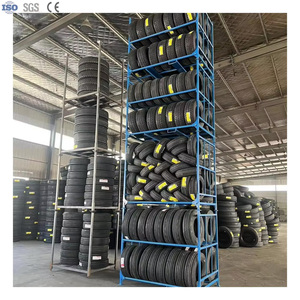

Powder Coating Portable Steel Truck Storage Multi Layer Stacking Metal Tire Stackable Pallet Stacking Racks for Truck Wheels
TER Customized Post Pallet Rack System High Density Space Saving Selective Modular Reinforced Frame Sturdy Construction

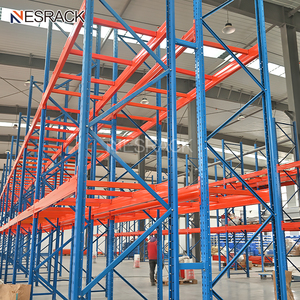

Heavy-Duty Industrial Warehouse Shelving for Chemical Oil Drums & Barrel Stacking Pallet Placement Oil Drums Storage Rack
Anti-Leakage Steel 5-Layer Metal Deck Board Pallet Racking System Heavy Duty Warehouse Storage 2000kg Load
Customized Industrial Rack Heavy Duty Pallet Rack System Warehouse Storage Shelf Shelved Racking Metal Storage Rack Shelving
Whitepaper: Engineering Principles of Multi-Level Pallet Racking & Structural OEM Design
Modern logistics infrastructure requires vertical optimization without compromising structural integrity or material safety. As a global lead custom OEM multi-level pallet racking exporter, IronMax Storage Solutions Co., Ltd. bridges high-density space conversion with advanced structural physics. In multi-tier warehouse environments, structural deformation, bucking resistance under dynamic seismic loading, and beam deflection ratios dictate long-term system stability.
Information Gain Insight: Selecting high-tensile cold-rolled steel profiles (such as Q355B vs standard Q235B) reduces beam tare weight while increasing moment capacity by up to 28%. This allows longer horizontal spans without exceeding the strict deflection limit of L/200 under maximum rated load capacity.
1. Structural Physics & Metallurgy in Multi-Tier Racking Architecture
The engineering foundation of any heavy-duty multi-level racking platform relies on column profile geometry and pitch accuracy. Uprights are subjected to combined axial compression and bending moments. Our factory utilizes multi-station continuous cold-roll forming lines to fabricate upright columns with 11-fold and 13-fold cross-sectional profiles. This complex geometric curvature substantially raises the polar moment of inertia, counteracting torsional-flexural buckling modes under asymmetric bay loading.
In multi-level racking platforms and mezzanine structures, steel grade selection directly impacts load safety factors. Standard industry practice often defaults to Q235 carbon steel. However, for elevated multi-tiered systems carrying point loads over 2,000 kg per pallet level, IronMax engineers specify certified Q355B high-yield strength structural steel. Combined with cold-rolled box beams or step beams joined via 5-hook heavy-gauge connectors, our systems achieve mechanical safety factors ranging from 1.5 to 1.65 in compliance with European FEM 10.2.02 and ANSI/MH16.1 specifications.
Finite Element Analysis (FEA)
Computer simulation of stress distribution, dynamic load harmonics, and sway deflection under maximum static overload conditions.
Seismic Resilience Engineering
Custom anchor baseplate design and horizontal cross-bracing geometry engineered to absorb seismic lateral shear forces.
Export Surface Finishing
Automated 8-stage pre-treatment chemical washing and electrostatic epoxy powder coating (60–80 µm) or hot-dip galvanizing for cold storage.
2. System Comparison & Payload Specification Matrix
Navigating warehouse density requirements demands aligning handling equipment (reach trucks, counterbalanced forklifts, VNA turrets, or AGVs) with the correct racking structure. Below is a comparative engineering evaluation of major multi-level storage configurations engineered by IronMax:
| Racking Architecture | Storage Density | Pallet Access Type | Standard Level Payload | Optimal Industry Application |
|---|---|---|---|---|
| Selective Multi-Tier Pallet Rack | Standard (40-50%) | 100% Direct Access | 500 kg – 4,000 kg | FMCG Distribution, High SKU Variety, E-Commerce Hubs |
| Forklift Drive-In / Drive-Through | Very High (75-85%) | LIFO / FIFO Bulk Access | 1,000 kg – 2,000 kg | Cold Storage, Beverage Warehousing, Homogeneous Goods |
| Radio Shuttle Automation System | Maximum (85-90%) | Semi-Automated Channel | 1,500 kg – 2,000 kg | Freezer Rooms (-25°C), High-Throughput Bulk Food Processing |
| Steel Structure Mezzanine Platform | Vertical Doubling (100% Floor Gain) | Multi-Level Manual / Conveyor | 300 kg – 1,200 kg / m² | Automobile Spare Parts, Garment Sortation, Small-Item Picking |
| Heavy-Duty Push-Back Racking | High (65-75%) | LIFO Nested Carts | 500 kg – 5,000 kg | Buffer Storage, Stage Racking, Medium SKU Diversity |
Future Procurement Trends in Warehouse Storage Systems (2025–2030)
As global supply chains shift toward automated distribution and sustainability targets, enterprise buyers must consider future-ready procurement strategies. Procurement managers no longer focus solely on initial capital expenditure per pallet position; total cost of ownership (TCO) over a 15-to-20-year operational lifecycle is now the core metric.
Integration with Autonomous Mobile Robots (AMRs) & AGVs
Traditional static racking designs are giving way to hybrid structures optimized for robotic navigation. Future multi-level pallet racking orders increasingly request tighter profile tolerances, precision rack-mounted guide rails, and integrated sensor mounting channels. Baseplate levelling precision has transitioned from ±3mm to sub-millimeter tolerances to prevent path deflection for Automated Guided Vehicles (AGVs) operating in narrow aisles.
Green Supply Chains & Recyclable Structural Steel
International environmental regulations require reduced carbon footprints in industrial equipment manufacturing. High-tensile cold-formed steel profiles require fewer total kilograms of raw material to achieve equivalent structural load ratings, significantly lowering scope 3 embedded carbon. Furthermore, solvent-free electrostatic powder coating finishes eliminate volatile organic compound (VOC) emissions during production, providing a compliant, eco-friendly procurement profile for European and North American importers.
Intelligent Structural Health Monitoring (SHM)
The integration of IoT vibration sensors and weight strain gauges into main load-bearing upright frames represents a major shift in facility management. Embedded sensors detect real-time strain variations caused by accidental forklift impacts or unintended localized overloading, triggering immediate safety alerts before structural fatigue leads to rack failure.
Why Choose IronMax Storage Solutions Co., Ltd.
Direct OEM Factory Direct Production, Engineering Integrity & Global Compliance
In-House Manufacturing Control
Based in Jining, Shandong Province, China, our specialized production facility executes roll forming, continuous punching, robotic welding, and powder coating under strict quality control.
24-Hour Layout Engineering Support
Send us your warehouse CAD drawings, clear ceiling heights, forklift specs, and pallet dimensions. Our team delivers custom 2D/3D layout drawings and structural load calculations within 24 hours.
Strict International Certifications
All system components are certified according to ISO9001 quality management systems and CE structural safety standards, ensuring smooth customs clearance for export projects globally.
Export Protection & Assembly Kits
Uprights and beams are bound with steel strapping and heavy protective film. Detailed installation manuals, component identification tags, and video walkthroughs accompany every container.
Frequently Asked Questions (Procurement & Technical FAQ)
Comprehensive Insights for Warehouse Managers, EPC Contractors & Import Distributors
How do you calculate the maximum load capacity for custom multi-level racking?
Maximum dynamic load capacity per level is determined by upright frame height, unbraced length, beam cross-section profile, beam length, and connection design. Our structural engineers calculate point loads and uniformly distributed loads (UDL) following FEM 10.2.02 and RMI standards. Beam deflection is strictly kept under L/200 of total clear span (e.g., maximum 13.5mm deflection for a 2,700mm beam span at full rated load).
What steel grades and surface finishes do you offer for export orders?
We primarily utilize high-grade cold-rolled structural steel Q235B and Q355B (equivalent to S235JR and S355JR under European standard EN 10025). Surface finishes include automated 8-stage chemical wash with thermosetting epoxy powder coating (60–80 microns thick) for dry ambient warehouses, or continuous pre-galvanized / hot-dip galvanized (HDG) coating for sub-zero cold storage facilities and high-humidity environments.
Can IronMax provide complete layout design from a basic warehouse blueprint?
Yes. By providing your building dimensions, clear height under trusses, floor slab load limit (in kN/m²), pallet dimensions (Width x Depth x Height including cargo), total pallet weight, and operating forklift specs (turning radius and lift height), our engineering department generates complete 2D layout drawings, 3D conceptual renderings, and precise bills of materials within 24 hours.
What structural safety accessories are included with multi-level racking platforms?
Safety is paramount in multi-tiered storage. Standard engineering proposals include heavy-duty spring-loaded beam locking safety pins to prevent accidental beam dislodgement, heavy-gauge steel column protectors (U-shaped or frame guards), frame row spacers, wire mesh decks, back drop stops, and safety staircases with kickplates and handrails for mezzanine levels.
How are components packaged to prevent damage during long-distance ocean transport?
All upright frames and beams are bundled using heavy-duty steel strapping with protective plastic corner guards and wrapped in multi-layer moisture-proof plastic film. Small hardware components (bolts, nuts, baseplates, locking pins) are packed in reinforced wooden crates or heavy corrugated cartons stacked on steel export pallets. Loading plans are calculated via 3D container packing software to maximize space usage and protect finished surfaces during transit.
What options are recommended for high-density cold storage facilities?
Due to high electricity costs per cubic meter in cold storage environments, high-density storage platforms like Drive-In racking or Radio Shuttle automated systems are ideal. Radio Shuttle systems reduce internal forklift movement inside freezer spaces (-25°C), increasing pallet storage density by up to 85% compared to standard selective racking while offering flexible FIFO/LIFO inventory management.
