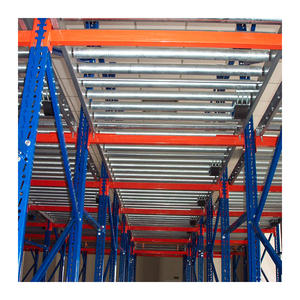

Gravity Pallet Flow Rack High-Quality FIFO Inventory Storage Racks
Very Narrow Aisle (VNA) Reach Truck High-Capacity Galvanized System
Semi-Automatic 4-Way Radio Shuttle Car Dense Racking System
Galvanized Pallet Racking with Heavy Duty Wire Mesh Decking & Dividers
Heavy Duty OEM Adjustable Mobile & Long Span Cantilever Storage Rack
1. Custom OEM Long Load Pallet Racking: Engineering Architecture & Spatial Optimization
Modern industrial material handling demands specialized storage architectures capable of handling atypical load profiles, ranging from extended aluminum extrusions, steel pipes, and heavy coils to high-density palletized freight. As a leading Custom OEM Long Load Pallet Racking Manufacturer & Supplier, IronMax Storage Solutions Co., Ltd. resolves the fundamental friction between cubic storage density and structural safety under dynamic forklift operation.
Standard selective pallet racking systems are optimized for standardized unit loads (such as Euro or GMA pallets). However, when handling non-standard, extended, or heavy-duty long loads, traditional beam racking suffers from excessive horizontal deflection, stress concentration at upright connection nodes, and dangerous handling clearance limitations. Custom OEM cantilever and long-span racking frameworks utilize engineered cold-rolled structural profiles, reinforced column bases, and specialized arm locking mechanisms to distribute lateral and vertical bending moments evenly.
Structural Anatomy of Heavy-Duty Long Span & Cantilever Systems
Our OEM manufacturing protocols tailor column profiles, base footprints, and arm attachment pitches to the exact physical envelope of your warehouse. Key structural modules include:
High-Tensile Cold-Rolled Uprights
Fabricated from Q355B steel with continuous omega-profile cross-sections, offering exceptional torsional resistance against accidental forklift impact.
Tapered Cantilever Arm Design
Features a 2-degree incline under zero-load conditions that levels perfectly when fully loaded, preventing cargo slippage and tip-forward accidents.
Safety Wedge & Pin Locking
Boltless connections utilizing heavy-duty shear pins ensure easy height adjustability on a 75mm or 100mm pitch while preventing accidental arm dislodgement during overhead hoisting.
2. Technical Specifications & OEM Customization Matrix
Every commercial or industrial warehouse facility presents unique spatial constraints, floor slab load thresholds, and material handling workflows. IronMax operates as a full-tier OEM/ODM supplier, managing every phase of production from initial CAD layout simulation to Finite Element Analysis (FEA) testing, precise roll-forming, automated robotic welding, and thermosetting epoxy powder coating.
| Racking System Type | Primary Material Grade | Payload Capacity (Per Level) | Max Storage Height | Surface Coating Finish | Target Applications |
|---|---|---|---|---|---|
| Custom Long Load Cantilever | Structural Q355B / H-Beam | 1,000 kg – 6,000 kg / Arm | 12.0 Meters | Powder Coating / Hot-Dip Galv. | Pipes, Lumber, Steel Bars, Tubing |
| Heavy Duty Selective Rack | Cold-Rolled Strip Steel Q235B | 500 kg – 4,000 kg / Beam | 15.0 Meters | 60–80µm Epoxy Polyester | Standardized FMCG & Retail Pallets |
| Industrial Coil Cradle Rack | Heavy Plate & Box Beam Steel | 5,000 kg – 30,000 kg / Coil | 8.0 Meters | Anti-Impact Industrial Enamel | Steel Coils, Copper Spools, Paper Rolls |
| Radio Shuttle High-Density | Q235B Uprights / Alloy Rails | 1,500 kg / Pallet Position | 16.0 Meters | Pre-Galvanized + Powder Coat | Cold Storage (-25°C), Bulk Foods |
| Mobile Compaction Racking | High-Yield Structural Steel | 20,000 kg / Movable Bay | 10.0 Meters | Corrosion Resistant Hybrid | High-Value Spare Parts, Archives |
Scientific Load Verification via Finite Element Analysis (FEA)
To ensure total absolute structural reliability without wasteful material over-engineering, our in-house engineering lab subjects all custom OEM beam profiles and upright profiles to comprehensive FEA computer modeling. We simulate multi-directional stresses including vertical gravity loads, asymmetric pallet loading, seismic shear forces (in accordance with zone requirements), and forklift impact loads.
3. Global Procurement Trends in Industrial Storage (2025–2030)
Procurement directors and logistics EPC contractors face evolving macro-economic demands. Storage media selection is no longer treated as a static commodity purchase; it is evaluated as a strategic driver of operational throughput, automation readiness, and environmental compliance.
1. Transition to Hot-Dip Galvanizing in Cold Chains
Global demand for temperature-controlled storage is accelerating. Buyers are moving away from traditional painted racking towards hot-dip galvanized components (ISO 1461 compliant) to prevent micro-fissuring, surface rust, and paint flaking in sub-zero environments down to -30°C.
2. Hybrid ASRS & Shuttle Integration
High industrial real estate costs are driving the adoption of high-density semi-automated radio shuttle systems and fully automated crane-guided ASRS structures, maximizing vertical building volume up to 40 meters.
3. Strict Regulatory Safety Audits (EN 15512 / RMI)
International logistics operators now mandate third-party certified load calculations, traceable steel heat certificates, and structural seismic design parameters prior to issuing purchase orders.
4. Technological & Manufacturing Innovation Trends
The manufacturing process for industrial racking has shifted from manual fabrication to high-precision robotic work cells. IronMax integrates advanced cold-roll forming mills equipped with online laser perforation technology, ensuring hole pitch accuracy within $\pm 0.1\text{mm}$ across a 12-meter continuous upright section.
Furthermore, our robotic welding stations eliminate human fatigue variations in critical load-bearing joints, such as beam-to-connector welds and cantilever column-to-base flange connections. Ultrasonic weld flaw detection is systematically performed on heavy cradle racks designed for steel coil handling to prevent catastrophic fatigue failure under cyclic loading.
5. Enterprise Strengths & Direct Manufacturing Advantages
IronMax Storage Solutions Co., Ltd. is a premier storage equipment manufacturer specializing in the complete lifecycle of heavy-duty industrial storage: layout engineering, structural design, automated manufacturing, and global installation supervision. Operating from our advanced production hub in Jining City, Shandong Province, China, we directly serve global B2B buyers, EPC contractors, and rack system distributors.
100% In-House Production
We do not outsource critical processes. Slitting, roll-forming, punching, welding, surface pre-treatment, and powder coating are strictly managed within our 50,000m² factory floor.
Turnkey CAD & Engineering Support
Submit your architectural building plans and pallet dimensions; our engineering team will deliver a fully optimized 2D layout and 3D structural model within 24 hours.
Export-Grade Protective Packaging
Uprights and beams are tightly bundled with heavy-duty steel strapping, protective corner guards, and plastic film wrapping to eliminate transit abrasion during oceanic container transport.
6. Frequently Asked Questions (Industrial Sourcing FAQ)
What load capacity can IronMax custom OEM pallet racking carry?
How do I determine whether to choose electrostatic powder coating or hot-dip galvanizing?
Can IronMax design a complete structural layout from my existing building floor plan?
What structural safety standards do your racking systems comply with?
How are long cantilever arms and tall racking uprights packed for containerized ocean freight?
Do you provide installation guidance for overseas warehouse projects?
