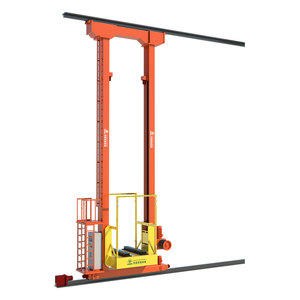

Automatic Pallet Stacker Crane Racking Intelligent Steel Warehouse System with Corrosion Protection for Automated Storage
Heavy Duty Storage Rack Pallet Rack System Shelf For Industrial Storage Rack
Industrial Excellence
Engineering Principles & OEM Manufacturing Standards
IronMax Storage Solutions Co., Ltd. delivers structurally verified heavy-duty pallet racking systems engineered specifically to optimize spatial utilization while ensuring uncompromising operational safety in high-density distribution environments.
When evaluating a Custom OEM Heavy Duty Pallet Racking Supplier, modern enterprise buyers must look beyond basic steel weight. Structural integrity depends on advanced material science, cold-roll profile geometry, finite element analysis (FEA), and strict compliance with international structural standards such as FEM 10.2.02, EN 15512, and ANSI MH16.1 (RMI). Industrial storage systems operate under severe dynamic stress, including forklift collision impacts, vertical live loads, seismic forces, and continuous loading/unloading cycles.
At our primary manufacturing base in Jining, Shandong Province, China, IronMax integrates prime high-tensile structural cold-rolled steel (Q235B and Q355B structural grades). Our fully automated roll-forming lines precision-punch teardrop, diamond, or 50mm/75mm pitch upright profiles with exact dimensional tolerances. This ensures perfect beam-to-frame locking geometry, eliminating micro-flexing under max payload conditions.
Q355B
High-Tensile Prime Steel Grade
5,000KG
Maximum Capacity Per Level
1.65SF
Structural Safety Factor (FEM Standard)
100%
Ultrasonic Weld Inspection Compliance
Structural Matrix
Heavy Duty Pallet Racking Specification & Comparison Guide
Selecting the correct heavy-duty rack architecture is a critical strategic decision. The matrix below details key engineering benchmarks across industrial storage configurations.
| Racking Architecture | Load Capacity (per level) | Pallet Selectivity | Volumetric Efficiency | Optimal Handling Equipment | Primary Industrial Use-Case |
|---|---|---|---|---|---|
| Selective Pallet Racking | 1,000 kg – 4,500 kg | 100% Direct Access | 40% – 50% Floor Utilization | Standard Counterbalance / Reach Truck | FMCG Distribution, High-SKU Warehouses |
| Push Back Racking Systems | 500 kg – 5,000 kg | LIFO (Last-In, First-Out) | 65% – 75% Floor Utilization | Standard Forklift (No rack entry needed) | Cold Storage, Bulk Goods, Medium SKUs |
| Drive-In / Drive-Through | 1,000 kg – 3,000 kg | LIFO / FIFO Lanes | 75% – 85% Floor Utilization | Specialized Narrow Reach Forklift | Homogeneous Seasonal Storage, Raw Materials |
| Radio Shuttle Racking | 500 kg – 2,500 kg | Automated FIFO / LIFO | 85% – 90% High-Density | Autonomous Radio Shuttle Cart + Forklift | Food & Beverage, Large-Scale Cold Chains |
| Very Narrow Aisle (VNA) | 1,000 kg – 3,500 kg | 100% Direct Access | 70% – 80% High Vertical Space | VNA Guided Turret Truck / Wire-Guided | High-Bay E-Commerce Fulfillment Centers |
| Automated AS/RS Crane System | 500 kg – 4,000 kg | 100% Automated Access | 90% – 95% Maximum Density | Fully Automated Stacker Crane System | 24/7 Unmanned Smart Factory Warehousing |
Custom Upright & Beam Cold Roll Profiling
We offer bespoke beam sections (box beams, step beams, structural channel beams) engineered to prevent torsional twisting under uneven load distribution. Column profiles are available from 80mm to 140mm face widths with custom steel thickness up to 3.0mm.
Advanced Surface Treatment & Powder Coating
Every frame component undergoes a multi-stage pre-treatment wash process including degreasing, zinc phosphating, and deionized rinsing, followed by electrostatically applied thermo-setting epoxy-polyester powder coating (50–80 microns) or hot-dip galvanizing per ASTM A123.
Precision CAD & FEA Layout Engineering
Our 120+ technical team utilizes advanced Finite Element Analysis (FEA) software to simulate maximum load deflection (L/200 standard), seismic shear forces, and floor slab pressure distributions before physical manufacturing begins.
Strategic Forecasting
Future Procurement Trends in Heavy-Duty Industrial Racking (2025–2030)
Global supply chain shifts, warehouse automation, and stringent sustainability mandates are fundamentally transforming how enterprise procurement managers select racking suppliers.
1. Automation-Ready Hybrid Infrastructure
Modern procurement is moving away from static, manual racking toward modular, automation-ready structural frameworks. Buyers are demanding selective and drive-in racks engineered with precise tolerances capable of seamlessly integrating Autonomous Mobile Robots (AMRs), Radio Shuttles, and AS/RS stacker cranes without structural retrofitting.
2. ESG & Low-Carbon Steel Manufacturing
Corporate ESG mandates require tier-1 B2B suppliers to provide full environmental footprint transparency. Future procurement contracts prioritize manufacturers using scrap-recycled EAF (Electric Arc Furnace) green steel, VOC-free powder coatings, and optimized container packing density to drastically diminish ocean freight carbon intensity.
3. High-Density Cold Chain Optimization
With cold storage operational costs per cubic meter exceeding standard ambient facilities by 300% to 500%, global buyers are accelerating procurement of high-density push-back and radio shuttle systems. These designs eliminate unnecessary forklift aisles, maximizing thermal efficiency and lowering per-pallet energy consumption.
Innovation Focus
Key Technological Trends Driving Storage Rack Evolution
The global pallet racking market is transitioning from simple structural steel fabrication into high-precision structural logistics systems.
High-Tensile Ultra-Lightweight Cold-Formed Steel
Metallurgical advances have introduced micro-alloyed ultra-high-strength steel grades. These profiles achieve superior load-bearing strength while reducing structural steel mass by 12% to 18%. This results in lower material raw costs, reduced freight expenses, and reduced floor slab loading without compromising safety margins.
IoT Smart Racking Sensors & Structural Telemetry
Leading enterprise installations are incorporating embedded micro-strain gauges and photoelectric tilt sensors into upright columns. These IoT devices monitor structural health in real time, alerting facility management immediately to accidental forklift strikes, overload conditions, or foundation settling.
Advanced Anti-Seismic & Dynamic Load Engineering
With seismic building codes tightening globally, structural pallet rack engineering now standardizes dynamic seismic baseplates, heavy-duty anchor bolt embedments, and continuous X-bracing frames engineered to dissipate kinetic earthquake shockwaves safely.
OEM Supplier Superiority
IronMax Manufacturing Capabilities & OEM Advantages
Partnering directly with a dedicated manufacturer ensures complete control over steel quality, lead times, custom profiling, and rigorous quality control.
IronMax Storage Solutions Co., Ltd. operates as a fully integrated industrial rack design and manufacturing powerhouse. Situated in New Parkview, Jianshe Road, Yanzhou District, Jining City, Shandong Province, China, our facility spans specialized cold-roll forming shops, robotic MIG welding stations, automatic electrostatic powder coating lines, and rigorous inspection laboratories.
Direct Factory Pricing
By eliminating intermediate trading brokers, direct OEM procurement yields a 15% to 30% cost efficiency. Mill-direct steel purchasing contracts ensure stable component pricing during market fluctuations.
Complete Turnkey Design
Send your DWG architectural layout, pallet dimensions, clear warehouse height, and forklift models. Our engineers generate free 2D layout drawings, 3D spatial models, and component lists within 24 hours.
Certified Quality Assurance
Certified under ISO9001 and ISO14001, every batch undergoes chemical mill test certification (MTC), coating cross-hatch adhesion tests, ultrasonic weld testing, and heavy-load destructive testing.
Global Export & Installation
We provide customized container loading plans (CLP) to maximize freight space and protect frame finishes. Every project includes detailed assembly manuals, 3D videos, and remote engineering guidance.
Request Your Custom OEM Racking Engineering Proposal
Consult with our senior warehouse logistics engineers today to calculate exact load capacities, optimize floor space utilization, and receive a factory-direct wholesale quotation.
Knowledge Center
Heavy Duty Pallet Racking Procurement FAQ
Technical answers to common questions asked by industrial procurement directors, warehouse managers, and structural engineers during project sourcing.
What load capacity can IronMax heavy-duty pallet racking carry?
Standard heavy-duty selective pallet racking beams support loads ranging from 500 kg up to 4,000 kg per beam level. Push-back racking systems and heavy-duty structural step-beam configurations can be engineered for up to 5,000 kg per level. Upright frame capacities exceed 20,000 kg depending on beam pitch spacing, clear height, and seismic zone factors. Final dynamic and static load ratings are calculated by our engineering team based on your exact pallet dimensions and unit weight profiles.
Should I choose epoxy powder coating or a galvanized surface finish?
Electrostatic epoxy powder coating is ideal for standard ambient indoor distribution centers, offering high scratch resistance, custom color coding (standard RAL shades such as RAL 5015 Blue and RAL 2004 Orange), and exceptional cost efficiency. Hot-dip galvanizing (HDG per ASTM A123) or pre-galvanized structural steel is strongly recommended for sub-zero cold storage facilities, outdoor storage yards, high-humidity processing rooms, or chemical logistics environments where severe electrochemical corrosion protection is imperative.
How do your engineers verify racking structural safety and deflection limits?
All IronMax heavy-duty racking systems are calculated under FEM 10.2.02 and EN 15512 structural design codes. Under full rated payload, maximum beam deflection is strictly restricted to less than L/200 (where L is the clear span length of the beam). Furthermore, upright frames feature a structural safety factor of 1.65 to 2.0 against yield stress. Beam connections feature heavy-duty 3 or 4-hook connector claws with automatic safety lock pins to prevent accidental dislodgement from forklift upward forces.
Can IronMax design a custom layout directly from my CAD building drawings?
Yes. Send your CAD building drawings (.DWG or .PDF format) indicating building column grid locations, clear ceiling height under building trusses, door openings, sprinkler pipe elevations, floor slab thickness, pallet dimensions (W x D x H), gross pallet weight, and forklift model specifications to [email protected]. Our engineering department returns a complete 2D warehouse layout plan, 3D structural visualizer, and itemized bill of materials within 24 hours.
What technical protection measures are included for overseas sea container shipment?
Export packaging is engineered to prevent transit corrosion and physical abrasion during ocean freight. Upright frames and beams are bundled with high-tensile PET strapping, heavy cardboard corner protectors, and outer plastic stretch film wrapping. Small hardware components, baseplates, shims, and safety pins are packed in reinforced, wooden pallets or heavy-duty triple-wall corrugated cartons. Detailed container loading plans (CLP) are calculated using 3D packing software to prevent shift and optimize container volume.
Which industrial storage system provides the absolute highest storage density for cold chain operations?
For cold chain facilities where refrigeration costs per cubic meter are extreme, Radio Shuttle Racking and Automated AS/RS systems deliver the highest density (achieving up to 85%–90% volumetric space utilization). Radio shuttle systems allow forklift trucks to remain at the front access aisle while autonomous shuttles transfer pallets inside deep storage channels (up to 40 pallets deep), dramatically lowering thermal exchange caused by forklift travel inside sub-zero chambers.
What is the standard OEM manufacturing lead time for custom heavy-duty racking orders?
Standard production lead time for custom OEM order volumes (1 to 5 forty-foot high-cube containers) is typically 14 to 21 working days following technical drawing sign-off and deposit receipt. For large-scale EPC logistics hub projects requiring automated roll-forming line allocation, production schedules are phased to match project site installation milestones.
