Custom Industrial Warehouse Pallet Flow Steel Roller Racks Gravity Racking
Flow System: Gravity Brake Rollers
Ideal For: JIT Buffer Lines
Load Capacity: Up to 2,500 kg/pallet
Precision Manufacturing Architecture
Next-Generation Automotive Parts Racking Systems
In modern automotive manufacturing, warehouse storage is no longer a passive holding area—it is an integrated dynamic driver of Just-In-Time (JIT) and Just-In-Sequence (JIS) assembly lines. IronMax Storage Solutions Co., Ltd. custom designs, engineers, and fabricates high-density OEM automotive parts pallet racking systems tailored specifically for Tier-1 suppliers, stamping facilities, EV powertrain assembly plants, and global logistics hubs.
Information Gain: Resolving Class-A Surface Protection & Dynamic Transport Fatigue
Engineering Standard
Unlike standard commercial warehouse racking, automotive components (such as stamped body side panels, engine blocks, transmission cases, and EV lithium battery packs) require specialized weight distribution modeling and zero-friction dunnage interfaces. Our factory integrates custom HDPE, polyurethane, vacuum-formed ABS inserts, and heavy-duty steel tubular frames designed via Finite Element Analysis (FEA) to eliminate micro-vibration abrasion during in-plant transfer and long-haul intermodal freighting.
OEM & Industrial Product Portfolio
Automotive & Industrial Storage Solutions
Explore our core engineered pallet racking systems, automated storage frameworks, and heavy-duty mezzanine platforms designed for high-throughput industrial environments.
Automated ASRS Mezzanine Rack Stacker Crane Racking System High Density Warehouse Storage Heavy Duty Steel Pallet Rack OEM ODM
Automation: Stacker Crane / AGV
Structure: High-Bay ASRS Steel
Vertical Pitch: Customized (Up to 30m)
Industrial Pallet Racking System Spliced Steel Drop-Over Deck Panel Warehouse Storage Rack 2000kg Heavy Duty
Decking Type: Spliced Drop-Over Steel
Uniform Load: 2,000 kg / Level
Coating: Epoxy Powder Coat
Industrial Steel Q235 Drive-In Pallet Rack with Corrosion Protection and Secure Design for Oil Drum Storage
Configuration: Drive-In High Density
Protection: Oil/Chemical Resistant
Safety: Ground Rail Guides
Custom Corrosion Protected Adjustable Pallet Rack Steel Structure Mezzanine Floor Heavy Duty Warehouse Loft Platform Racking
System: Rack-Supported Mezzanine
Floor Decking: Steel Mesh / Checker Plate
Features: Integrated Stairs & Handrails
Manufacturer Industrial Warehouse Rack Shelf Mezzanine Storage Shelving Steel Platform Mezzanine Floor Goods Lift Racking System
Integration: Goods Elevator Lift
Multi-Tier: 2-4 Level Loft Systems
Target SKUs: Small Parts & Sub-assemblies

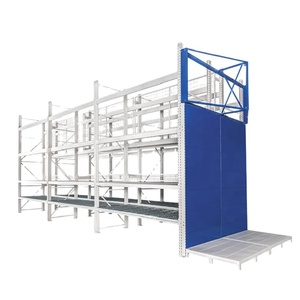

Kitchen Refrigeration Storage Pallet Rack Heavy Duty Shelving System
Environment: Cold Storage / Clean Room
Finish: Hot-Dip Galvanized / SS
Hygiene: Anti-Bacterial Coating Option
Long Span Heavy Duty Beam Racking with Straight Support Rail High Load Steel Shelving for Oversized Pallets
Span Length: Up to 4.5m Clear Beam
Support Rail: Reinforced Heavy Rails
Target Load: Oversized Engine Crates
Whitepaper-Grade Analysis
Automotive Component Racking Engineering Matrix
Automotive supply chains require component-specific racking layouts. Standard pallets are insufficient for non-uniform vehicle sub-assemblies. The matrix below outlines structural engineering configurations for core automotive part categories.
| Automotive Component | Structural Rack Type | Custom Dunnage / Protection | Handling & Logistics Flow | Load Rating (per Bay) |
|---|---|---|---|---|
| Body Stamping Panels (Side frames, hoods, doors) | Custom Stacking Steel Frame Racks | Polyurethane coated cradles & HDPE guides | JIS (Just-In-Sequence) Stamping to Weld Shop | 1,500 – 3,000 kg |
| Engine Blocks & Transmissions | Heavy-Duty Selective / Flow Beam Racks | Cast Iron location pins & Oil-drip trays | JIT Powertrain Line Feeding | 3,500 – 5,000 kg |
| EV Battery Modules & Packs | Thermal-Isolated ASRS Pallet Racking | Non-conductive phenolic liners & grounding clips | AGV Automated Pick & Place | 2,000 – 4,000 kg |
| Exhaust Systems & Axles | Heavy Cantilever & Long-Span Beam Racks | V-shaped notch arms & rubber sleeves | Forklift Side-Load Turnover | 2,500 – 4,500 kg |
| Windshields & Automotive Glass | Shock-Absorbing A-Frame Transport Racks | EPDM rubber padding & spring clamp bars | Intermodal Container Shipping | 1,200 – 2,200 kg |
Finite Element Analysis (FEA) Stress Verification
Every custom automotive racking design undergoes 3D static and dynamic simulation using ANSYS software. We test deflection under peak loading conditions, seismic sway resistance (complying with ANSI MH16.1 and FEM 10.2.02 standards), and fatigue tolerances during forklift loading cycles to guarantee zero dynamic structural collapse.
Corrosion & Surface Treatment Integrity
Automotive components are vulnerable to oil contamination and metal filings. IronMax racks feature a multi-stage pre-treatment process (degreasing, phosphating, and deionized water rinsing) followed by thermosetting epoxy-polyester powder coating cured at 200°C, delivering salt-spray resistance exceeding 500 hours (ASTM B117 standard).
Strategic OEM Outlook
Future Procurement & Industry Trends (2025–2035)
As the automotive sector transitions toward Electric Vehicles (EV), autonomous logistics, and decarbonized manufacturing, automotive racking procurement strategies are evolving rapidly. Key macro trends shaping upcoming factory tenders include:
Trend 01
Modular EV Battery Pack Racks
EV battery packs require rigid, non-sparking, thermal-runaway-isolated storage modules. Future procurement prioritizes racks with integrated cooling duct channels, dielectric insulation coatings, and automated locking pins compatible with robotic assembly arms.
Trend 02
Collapsible & Returnable Racking
Cross-border Tier-1 shipping demands collapsible steel pallet containers. By achieving a 4:1 fold-down ratio when empty, OEMs drastically reduce return-trip ocean freight costs and lower supply chain carbon emissions in line with Scope 3 ESG requirements.
Trend 03
IoT & AMR-Guided ASRS Racks
Manual forklift operations are giving way to Autonomous Mobile Robots (AMRs) and automated stacker cranes. Racking systems now incorporate optical QR code positioning plates, ultra-precise beam flatness tolerances (±1.5mm), and RFID sensor slots for real-time inventory tracking.
Proactive Purchasing Advice for Procurement Directors
When issuing RFQs for automotive pallet racking, avoid specifying generic "standard pallet" sizes. Always provide CAD models (.STEP / .IGES) of the actual automotive component along with clearance constraints, robotic gripper clearance tolerances, and floor load-bearing limits. IronMax offers complimentary OEM design engineering during the bidding phase.
Industrial Strength & Engineering Expertise
Why Tier-1 Automotive Manufacturers Partner with IronMax
Located in Shandong's heavy industrial core, IronMax Storage Solutions Co., Ltd. operates state-of-the-art roll-forming mills, automated robotic welding cells, and powder-coating lines dedicated to heavy-duty storage manufacturing.
End-to-End OEM/ODM Support
From initial 3D layout simulation and dunnage prototyping to mass production and export container packing, we provide turnkey engineering support tailored to your plant layout.
Advanced Automated Roll-Forming
Our high-precision continuous roll-forming lines process structural steel (Q235B, Q355B, Q460) with automatic punching for pitch adjustments, ensuring exact beam-to-upright lock fitment.
Rigorous Quality Assurance
Every lot undergoes raw steel spectral analysis, weld ultrasonic non-destructive testing (NDT), coating thickness measurement, and destructive load testing to failure.
Export Packaging & Logistics
Components are systematically bundled with corner guards, steel strapping, and moisture-proof plastic wrapping. Container loading is optimized using 3D CAD packing software.
Procurement Knowledge Base
Frequently Asked Questions (FAQ)
Get immediate answers to structural, technical, and commercial questions regarding custom automotive pallet racking procurement.
What information is needed to design a custom automotive parts rack?
To generate a precise design, we require: (1) 3D CAD models or dimensions of the automotive part, (2) Part weight and center of gravity, (3) Class-A surface sensitivity (determines dunnage material), (4) Desired rack stacking height, (5) In-plant handling equipment details (forklift type, AGV interface, or overhead crane).
How do you prevent automotive parts from getting scratched during transport?
We integrate customized protective dunnage directly into the steel frame. Options include thermoformed HDPE trays, cast polyurethane pads, nylon locators, cross-linked PE foam, or textile bag liners engineered to secure the specific geometry of stamped panels, painted bumpers, or glass.
What steel grades and structural standards do IronMax racking systems use?
We primarily use high-strength Q235B and Q355B cold-rolled steel, with ultra-heavy structural members utilizing Q460 steel. Our engineering calculations comply with European FEM 10.2.02, American ANSI MH16.1, and ISO 9001 quality management protocols.
Can IronMax racking integrate with Automated Guided Vehicles (AGVs) and ASRS?
Yes. We design high-precision ASRS and AGV-compatible pallet racking featuring strict manufacturing tolerances (within ±1.0mm per bay length), optical target plates, automated sensor brackets, and smooth entry guide rails required for robotic picker positioning.
What is your typical production lead time for OEM automotive rack orders?
Prototype racks are produced within 7–10 working days for fitment testing and dunnage validation. Mass production generally takes 20 to 30 days following prototype sign-off and final CAD drawing approval, depending on total project volume.
Do you offer on-site installation guidance or supervision?
Every export shipment includes comprehensive 3D assembly manuals and component labeling matching the layout drawings. We also provide live video engineering support or dispatch qualified installation engineers to your factory site for large-scale warehouse implementations.
