Wholesale Automated & Intelligent Pallet Handling Equipment
Engineered for extreme volumetric efficiency, rapid throughput, and seamless integration with modern WMS/WCS platforms.
Automated Pallet Runner Four-Way Radio Shuttle Rack
- Payload: 500 – 1,500 kg / Pallet
- Omnidirectional 4-Way Travel
- LiFePO4 Fast-Charging Power
Intelligent ASRS Chain Pallet Conveyor System
- Automatic Heavy-Duty Transfer
- PLC-Guided Speed Sync
- Industrial High-Stamina Racking
Intelligent Compact Pallet Shuttle Racking System
- High-Density Cold Room Ready
- Custom Heavy Duty Steel Frame
- Wireless RF Remote Control
High Speed Full Automatic Robotic Palletizing System
- Cobot & Industrial Arm Options
- Carton / Case / Bag Handling
- Precision Pattern Stacking

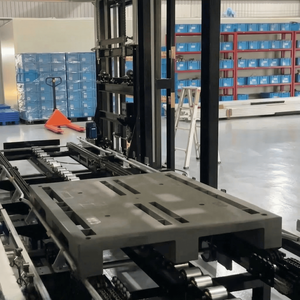

Automated 90 Degree Transfer Heavy-Duty Conveyor
- Seamless Right-Angle Direction Shift
- Photoelectric Safety Interlocks
- Modular Chain & Roller Bed
Autonomous Mobile Robot (AMR) AGV Forklift System
- SLAM Laser Navigation
- Pallet Auto-Lifting & Transport
- Dynamic Fleet Management
High Productivity Motorized Steel Pallet Stacking System
- PLC + Touch Screen Interface
- Motorized Gear Mechanism
- Integrated Safety Sensors
AI-Driven Intelligent Robotic Pallet Loading System
- AI Pattern Optimization Algorithm
- Maximum Cubic Space Utilization
- Automated Pallet Layering
The Paradigm Shift in Global Industrial Storage: From Static Racks to Automated Intelligence
As global supply chains demand higher throughput, zero-error order fulfillment, and maximum volumetric utilization, traditional selective pallet racking is rapidly transitioning toward autonomous, software-driven intelligent warehouse infrastructures.
In modern logistics centers, real estate costs per square meter continue to climb alongside rising energy expenditures in temperature-controlled environments. Chinese manufacturing exporters have evolved beyond low-cost steel fabrication into world-class suppliers of fully integrated Automated Storage and Retrieval Systems (ASRS), Radio Shuttle Runner Racking, Autonomous Mobile Robots (AMRs), and AI-managed pallet handling systems. This technological leap allows global logistics directors, cold storage operators, and manufacturing plants to optimize storage density by up to 300% while drastically reducing operational dependencies on manual forklifts.
The core value of a modern intelligent pallet storage system lies in the real-time handshake between Warehouse Execution Systems (WES), Warehouse Control Systems (WCS), and physical hardware. Modern 4-way shuttles and AGVs utilize embedded PLC chips, LiDAR optical arrays, and Wi-Fi 6 / 5G industrial mesh networks to dynamically adjust pallet positioning based on SKU turnover velocity, eliminating warehouse bottlenecks before they occur.
Engineering Architecture of Intelligent Pallet Storage Systems
A detailed examination of primary automated racking configurations manufactured and exported by leading Chinese OEMs.
1. Four-Way Radio Shuttle & High-Density Runner Racking
Four-way radio shuttle systems represent the pinnacle of deep-lane pallet storage. Unlike legacy 2-way shuttle carts that move only along a single channel, 4-way runners feature dual-axis wheel sets capable of switching travel directions on internal steel racking rails. This enables cross-aisle navigation, dynamic bay shifting, and automated elevator integration.
- Payload Range: 500 kg to 1,500 kg per pallet level.
- Travel Speed: Up to 1.5 m/s (unloaded) and 1.2 m/s (fully loaded).
- Power Architecture: Lithium Iron Phosphate (LiFePO4) with fast-charge supercapacitors (3-minute charge for 4-hour operation).
- Ideal Applications: FMCG distribution, cold storage down to -25°C, high-density buffer warehouses.
2. Automated Storage & Retrieval Systems (ASRS) & Chain Conveyors
High-bay pallet ASRS systems utilize crane stackers operating within narrow structural steel aisles reaching heights up to 40 meters. Integrated with heavy-duty chain and roller conveyor loops, 90-degree right-angle transfer units, and automated vertical lifts, ASRS delivers unmatched pallet throughput for ultra-high capacity facilities.
- Structural Height: 12m to 40m custom high-bay steel framing.
- Conveyor Transfer: Heavy-duty triple-strand motor-driven chain conveyors.
- Control Logic: Siemens S7-1500 PLC with touch HMI and Ethernet/IP protocols.
- Ideal Applications: Automotive manufacturing, pharmaceutical reserve storage, chemical logistics.
3. Autonomous Mobile Robots (AMRs) & AGV Forklifts
Autonomous Mobile Robots (AMRs) and automated guided vehicle (AGV) forklifts replace standard manual reach trucks. Utilizing SLAM (Simultaneous Localization and Mapping) laser navigation and 3D TOF safety camera arrays, AGV forklifts automatically retrieve pallets from conveyor drop points and stack them into standard or narrow-aisle racking systems without physical floor magnetic tape.
- Navigation: Natural Feature SLAM + Reflector hybrid guidance.
- Lifting Elevation: Up to 11.5 meters with active tilt compensation.
- Safety Protocols: 360-degree obstacle detection with emergency auto-stop.
- Ideal Applications: Flexible manufacturing floors, cross-docking hubs, mixed-SKU sorting.
4. AI-Driven Robotic Palletizing & Cobot Stacking
Robotic palletizing systems bridge the gap between production lines and racking storage. Powered by machine vision and AI pattern-generation software, palletizing cobots dynamically arrange cartons, crates, or bags onto heavy-duty steel or plastic pallets, ensuring structural stability and optimal pallet density prior to rack placement.
- Gripper End-Effectors: Vacuum, mechanical clamp, or magnetic systems.
- Throughput Rate: Up to 1,200 pick cycles per hour depending on payload.
- Footprint: Compact modular cell with safety enclosure curtains.
- Ideal Applications: Food & beverage packaging lines, agrochemical bags, e-commerce packing.
Stable Structure 5-Layer Heavy Duty Shuttle Pallet Racking
Specially designed 5-tier high-density shuttle racking system tailored for e-commerce fulfillment hubs requiring extreme vertical volume.
Inquire Details
Smart ASRS Shuttles & Forklift Automation Racking
Smart radio-controlled shuttle system integrated with automated forklift docks for seamless cargo transfer in heavy manufacturing.
Inquire DetailsEngineering Matrix: Storage Technology Comparison
| Storage System Type | Volumetric Efficiency | Selectivity Rate | Handling Equipment Required | WCS/WMS Integration Level | Cold Storage Suitability |
|---|---|---|---|---|---|
| Selective Pallet Racking | 40% – 50% | 100% (Direct Access) | Standard Forklift / Reach Truck | Manual / Barcode Scan | Fair (High energy cost) |
| Drive-In Racking | 65% – 75% | Low (LIFO Flow) | Counterbalance Forklift | Basic Stock Tracking | Good |
| 2-Way Radio Shuttle | 75% – 85% | Medium (Per Lane) | Forklift + Shuttle Runner | Semi-Automated PLC | Excellent (-25°C) |
| 4-Way Intelligent Shuttle | 85% – 92% | High (Dynamic Relocation) | 4-Way Runner + Elevator Lift | Full WCS Autonomous Fleet | Superior (Optimal Density) |
| High-Bay Pallet ASRS | 90% – 96% | 100% Automated | Stacker Crane + Conveyor Network | Fully Autonomous Lights-Out | Superior (Maximized Height) |
Global Procurement Trends: Intelligent Pallet Storage Systems (2025–2030)
Insights for B2B procurement heads, EPC contractors, and warehouse system integrators planning multi-year capital expenditure projects.
1. Modular "Plug & Play" Scalability
Global buyers are shifting away from monolithic, inflexible automation projects toward modular Intelligent Pallet Storage Systems. Buyers demand shuttle racking channels and AMR fleets that can be expanded incrementally in response to seasonal volume spikes without taking the entire warehouse offline.
2. Green Warehousing & Energy Savings
With ESG mandates impacting corporate supply chains, intelligent shuttle systems equipped with regenerative braking energy recovery and low-draw LiFePO4 batteries are winning RFQs. In cold storage facilities, compact shuttle blocks reduce refrigerated room volume by up to 60%, drastically cutting power bills.
3. Open API Software Architecture
Hardware capability is no longer evaluated in isolation. Modern procurement standards dictate that Chinese OEM controllers provide open REST APIs, Modbus, MQTT, and OPC-UA connectivity, enabling frictionless data exchange between native WCS systems and global WMS platforms like SAP, Oracle, and Manhattan Associates.
Generational Evolution of Warehousing Racking Equipment
Understanding the transition matrix enables enterprise buyers to make future-proof capital investments.
Selective & Drive-In Racks
100% manual driver operation. High reliance on forklift operator skill, low volumetric utilization, high risk of racking impact damage.
2-Way Radio Shuttle
Forklifts position shuttle carts into dedicated lanes. Shuttle handles deep-lane movement. Reduces forklift aisle travel by 50%.
4-Way Shuttle + ASRS + AGV
Shuttles navigate across aisles and levels via lifts. AGV forklifts perform rack loading/unloading. Zero manual floor touches required.
Predictive Autonomous Logistics
AI software predicts order pick orders, dynamically relocates fast-moving pallets during off-peak hours, and performs self-healing maintenance routing.
Why Direct Sourcing from China's Premier Racking Manufacturers Drives ROI
IronMax Storage Solutions Co., Ltd. combines heavy-duty metallurgical engineering with cutting-edge robotics to supply turn-key storage infrastructure worldwide.
Engineering & FEA Stress Modeling
Every rack upright, cross beam, and shuttle rail profile undergoes rigorous Finite Element Analysis (FEA) testing under maximum static and dynamic load conditions. We engineer structural systems that comply strictly with European FEM 10.2.02, RMI, and ISO 9001 standards.
Precision In-House Manufacturing
Our Shandong manufacturing base features automated continuous cold-roll forming lines, laser cutting cells, robotic welding stations, and an automatic electrostatic epoxy powder coating line, guaranteeing dimensional tolerances within ±0.5mm for flawless shuttle wheel travel.
Comprehensive Export Protection
Long-distance maritime shipping demands robust packaging. Heavy structural members are bundled with protective corrugated edge guards and steel strapping. Electronic shuttles, PLCs, and drive motors are vacuum-sealed in moisture-proof wooden cases for safe transit.
Warehouse floor plan analysis, clear height review, and pallet dimension/weight matrix evaluation.
3D layout modeling, seismic calculation, and WCS integration architecture mapping.
Pre-shipment shuttle runner commissioning, full-load test running, and PLC signal validation.
On-site installation guidance, remote software setup, operator training, and spare parts supply.
Frequently Asked Questions: Intelligent Pallet Storage Systems
Expert technical responses to critical procurement and operational queries from global logistics managers.
