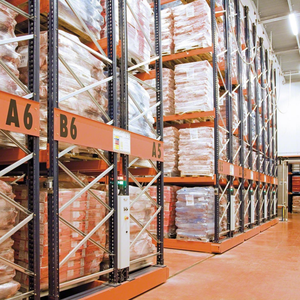

Warehouse Pallet Rack Heavy Duty Adjustable Powder Coated Easy Installation Multi Level Racking
3 Pallet Levels Heavy Duty Steel Warehouse Rack Selective Pallet Racking System 3000KG
Pallet Shuttle Rack System Satellite Cars High-Capacity 160m/min Automatic Racking
Industrial Rack Shelving Single Sided Heavy Duty Cantilever Racking System for Pipe & Timber
Full Welded Flared Channel Zinc Coated Pallet Racking Wire Mesh Pallet Decking
Selective Steel Heavy Duty Pallet Rack Very Narrow Aisle Racking / VNA Pallet Racking
Technical Whitepaper: Engineering High-Density Storage Racking Systems
Modern supply chain logistics demand maximum volumetric efficiency, structural safety under extreme dynamic loads, and long-term durability against corrosion and operational fatigue. As a premier Chinese manufacturer and global exporter of industrial storage racking systems, IronMax Storage Solutions Co., Ltd. (operating from our state-of-the-art production base in Jining, Shandong Province) delivers precision-engineered warehousing infrastructure engineered to withstand the rigorous demands of fast-moving consumer goods (FMCG), cold-chain logistics, pharmaceutical distribution, and heavy industrial warehousing.
Engineering Core Principle: Structural racking design must strictly evaluate structural yield point stress, finite element deflection limits (L/200), frame buckling safety factors, and seismic zone response parameters rather than relying on unverified catalog load estimates.
1. Structural Metallurgy & Cold-Roll Profiling Standards
The structural integrity of heavy-duty pallet racking starts with raw material selection. IronMax utilizes certified prime cold-rolled steel coils matching Q235B and high-tensile Q355B structural steel grades. Our upright columns feature an intricate 11-13-fold Omega (Ω) cross-section profile roll-formed through multi-stage continuous automated rolling mills. This geometric profiling dramatically increases the section modulus and torsional resistance while minimizing dead weight.
- Omega Upright Profiles: Ranging from 80mm to 120mm face widths with steel thicknesses from 1.8mm to 2.5mm, engineered to absorb dynamic impacts from forklifts.
- Interlocking Box Beams: Fabricated from two C-profile sections cold-nested and continuously robotic-welded to create a closed rectangular box section, eliminating torsional twisting under heavy point loading.
- Automatic Connector Claws: 3-claw to 5-claw heavy-duty beam connectors forged with safety lock pins that automatically engage to prevent accidental beam dislodgement during pallet positioning.
2. System Selection Framework: Matching Storage Density with SKU Selectivity
Selecting the optimal top lane storage racking system requires balancing space utilization against pallet retrieval accessibility. Below is an engineering comparison matrix developed by our senior logistics planners to guide B2B procurement decisions:
| Racking System Type | Volumetric Efficiency | SKU Selectivity | Inventory Rotation | Forklift Requirement | Optimal Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | 40% - 50% | 100% Direct Access | FIFO / LIFO | Standard Counterbalance / Reach | High SKU variety, fast-moving items, general 3PL |
| Very Narrow Aisle (VNA) | 65% - 75% | 100% Direct Access | FIFO / LIFO | Articulated VNA Turret Truck | High-bay warehouses, expensive floor space |
| Radio Shuttle Satellite Racking | 80% - 90% | Lane-Selective | FIFO or LIFO | Standard Forklift + Radio Shuttle Car | Cold storage, beverage, high volume per SKU |
| Drive-In / Drive-Through | 70% - 85% | Low (Block Access) | LIFO (Drive-In) / FIFO | Narrow Counterbalance Truck | Uniform bulk goods, seasonal storage, freezer rooms |
| Push-Back Cart Racking | 65% - 75% | Level/Lane Selective | LIFO Only | Standard Reach Truck | Medium SKU velocity, 2 to 6 pallets deep per lane |
| Heavy-Duty Cantilever | Variable | 100% Linear Access | N/A | Side Loader / Standard Forklift | Steel pipes, aluminum extrusions, timber, sheet plates |
3. Interactive Visual Modules: Engineering Capabilities
Finite Element Analysis (FEA)
Every custom rack design undergoes computerized FEA testing to simulate extreme sway stress, seismic lateral forces, and uneven load distribution before physical prototyping.
Automated Robotic Welding
Continuous pulse-MIG welding robots guarantee 100% weld penetration across all beam connectors and baseplate joints, eliminating human weld defects.
Thermosetting Epoxy Coating
18-stage chemical pre-treatment followed by automatic electrostatic powder coating delivers a scratch-resistant finish (60–80 μm thickness) tested to 500-hour salt spray resistance.
Future Trends in Global Warehouse Storage & Procurement
The global warehousing and material handling industry is undergoing a structural transition driven by e-commerce velocity, rising industrial real estate costs, and strict ESG compliance demands. B2B buyers sourcing storage racking systems from China are moving beyond basic mechanical hardware toward integrated, sustainable, and automated storage ecosystems.
A. Integration with Autonomous Mobile Robots (AMR) & AGVs
Conventional static racking is increasingly adapted to mesh with Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs). Top-lane pallet racking systems are now manufactured with enhanced guide rails, precision optical sensor targets, and ultra-flat floor baseplates. Rack uprights are retrofitted with RFID tags and barcode tracking zones to facilitate automated pallet retrieval without human operator intervention.
B. Cold-Chain Expansion & Galvanized Thermal Resilience
With global cold-chain logistics expanding rapidly for pharmaceuticals and fresh foods, sub-zero warehouse storage demands racking hardware that resists hydrogen embrittlement and thermal stress cracking. Procurement trends favor Hot-Dip Galvanized (HDG) steel components capable of operating reliably in freezer environments down to -30°C. High-density Radio Shuttle racking systems are replacing standard drive-in racks in cold storage because shuttle cars drastically reduce freezer door opening frequency and forklift fuel emissions in chilled spaces.
C. Sustainable "Green Steel" & Non-Toxic Electrostatic Coatings
Environmental standards in Western markets demand transparent carbon footprint documentation. IronMax is leading the export sector by incorporating recycled low-carbon steel billets and utilizing 100% VOC-free lead-free epoxy polyester powder coatings. Our closed-loop water treatment facilities ensure zero industrial fluid discharge during raw steel acid pickling and pre-treatment phases.
D. Modular Flex-Racking & Fast Erection Systems
Supply chains must remain agile. Modern racking designs emphasize boltless beam adjustments, modular mezzanine platform expansions, and standardized component grids that allow facility managers to reconfigure warehouse layouts within 48 hours to accommodate peak seasonal inventory shifts.
Why Global Procurement Leaders Choose IronMax Storage Solutions
IronMax Storage Solutions Co., Ltd. has established itself as an authoritative supplier and exporter of China top lane storage racking systems. Located in the industrial manufacturing heartland of Jining, Shandong, our facility integrates heavy industrial machinery with rigorous European quality assurance protocols.
- Full Traceability & Material Certification: Every batch of steel coils delivered to our factory includes mill test certificates (MTC) verifying chemical composition and tensile strength compliance according to EN 10204 3.1 standards.
- Strict Compliance with International Standards: All structural load designs comply with European FEM 10.2.02, American RMI (Rack Manufacturers Institute), Australian AS4084-2012, and international ISO9001:2015 specifications.
- End-to-End Export Engineering Services: We don't just ship steel components; we deliver fully engineered turnkey solutions. Our engineering office provides detailed CAD layout drawings, structural loading schematics, 3D installation videos, and complete container packing lists labeled bay-by-bay for rapid site erection.
- Export-Ready Protective Packaging: Upright frames and beams are bundled with steel strapping, corrugated corner guards, and multi-layer stretch wrap to prevent transit scratching and corrosion during ocean shipping. Small accessories are packed in reinforced wooden cases.
Frequently Asked Questions by B2B Buyers
Clear technical answers to help procurement managers, logistics consultants, and warehouse engineers make informed decisions.
What load capacity can IronMax heavy-duty pallet racking support per level?
Standard selective pallet racking systems support load capacities ranging from 500 kg up to 4,000 kg per beam level under uniformly distributed load (UDL) conditions. Heavy-duty push-back cart systems and customized structural racking can carry up to 5,000 kg per level. Safe working load parameters are confirmed using Finite Element Analysis based on your specific pallet footprint, upright frame height, and localized seismic factors.
When should I specify Hot-Dip Galvanized (HDG) finish versus Powder Coating?
Epoxy powder coating is ideal for standard indoor ambient warehouses, providing excellent scratch resistance and customized corporate color choices (such as RAL5015 blue and RAL2004 orange). Hot-Dip Galvanized (HDG) finishes are strongly recommended for cold storage freezers (-25°C to -30°C), chemical handling areas, outdoor semi-covered loading bays, or humid tropical environments where superior corrosion protection is essential.
Can IronMax design a customized racking layout from my building architectural drawing?
Yes! Simply send your warehouse CAD drawing or architectural floor plan to our engineering team. We evaluate building clear height, column grid locations, door access, floor slab load rating, pallet size (L x W x H), unit load weight, and forklift aisle requirements. We return a comprehensive 2D CAD layout, 3D visual rendering, and bill of materials within 24 to 48 hours without obligation.
How do you ensure safe installation for international export projects?
Every export consignment includes structural assembly drawings, step-by-step installation manuals, torque specs for anchor bolts, and component marking identifiers matching the packing list. We provide remote video tech support during site construction. For mega-warehouse installations, on-site installation supervisors can be dispatched to oversee local contractor installation crews.
What safety accessories are available to protect racking frames from forklift collisions?
We manufacture a complete line of heavy-duty rack protection accessories, including steel floor-mounted upright protectors, polymer plastic column guards, end-of-aisle heavy-duty crash barrier rails, frame row spacers, and rear safety mesh backing screens to prevent loose carton drops in high-traffic picker aisles.
