What load capacity can IronMax pallet racking carry?

Standard selective pallet racking is supplied from 500 kg to 4,000 kg per beam level, and push back systems up to 5,000 kg per level. Final capacity is confirmed by our engineers based on upright height, beam span, pallet size and local seismic or safety requirements.

Should I choose powder coating or galvanized racking?

Epoxy powder coating suits dry indoor warehouses and allows custom colors. Galvanized finishes are recommended for cold storage, high-humidity, coastal or semi-outdoor environments where corrosion resistance is critical.

Can you design a racking layout from my warehouse drawing?

Yes. Send your CAD drawing or building dimensions, clear height, pallet size and weight, forklift type and lift height to sales@ironmaxrack.com. Our engineering team returns a layout proposal with load calculations and a component list.

Do you provide installation support for overseas projects?

Every order ships with installation drawings and manuals. Remote video guidance is available, and on-site installation supervision can be arranged for larger projects.

Which racking system is best for cold storage?

Cold rooms are expensive per cubic meter, so high-density systems such as drive-in racking or radio shuttle racking are usually preferred. Radio shuttle racking also reduces forklift travel inside the freezer and supports FIFO or LIFO flow.

How are racking components packed for export?

Uprights and beams are bundled with steel strapping and protective wrapping, small parts are packed in cartons, and container loading is planned to protect coatings and maximize container space.

China Top High Bay Pallet Racking Supplier & Exporter

Next-Generation Heavy-Duty Storage Engineering, ASRS Integration & Supply Chain Resilience

Featured High Bay & Industrial Racking Systems

Engineered to international structural safety standards (FEM 10.2.02, RMI, EN 15512, AS4084) for maximum vertical space utilization and structural stability.

Full Welded Flared Channel Zinc Coated Wire Mesh Decking

Heavy-duty wire mesh decking with welded support channels. Engineered for fire safety compliance, enhanced capacity, and seamless beam drop-in fit.

Selective Pallet Racking System Heavy Duty Boltless 5-Tier

High-grade Q235B/Q355B cold-rolled steel framing. Offers 100% direct pallet selectivity, 75mm adjustable pitch, and up to 4000kg beam level load ratings.

Heavy-Duty Corrosion Protected Pallet Racking Systems

Hot-dip galvanized and outdoor-durable epoxy powder-coated racking designed for chemical plants, coastal logistics hubs, and harsh industrial settings.

High-Density 4-Way Radio Shuttle Racking & ASRS System

Semi-automated and automated high-density shuttle system. Maximizes cubic floor usage while significantly cutting forklift operational times.

Heavy-Duty Motorized Mobile Pallet Racking System

Motorized rail-guided mobile compaction racking. Eliminates fixed service aisles to double warehouse cubic storage capacity for cold rooms and archives.

Drive-In Rack System 5-Ton Capacity for Steel Coils & Drums

First-In-Last-Out (FILO) high-density layout custom engineered for uniform heavy loads, chemical drums, raw steel coils, and seasonal commodities.

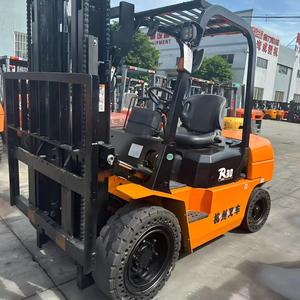

IC Counterbalance Forklift Integration & VNA MHE System

Comprehensive material handling system alignment including aisle spacing optimization, guide rails, and high-reach mast dynamic stability testing.

Heavy Duty Structural Storage Rack System for Industrial Facilities

Modular industrial rack framing featuring rigid multi-claw connectors, heavy baseplates, and high moment-resisting structural framing profiles.

40m+

Max High Bay Structural Height

50,000 Tons

Annual Steel Processing Capacity

100%

FEA Structural Calculation Verified

85+

Export Nations & Regions

High Bay Pallet Racking Engineering: Technical Benchmark & Structural Design Standards

Modern global logistics operations face unprecedented pressure regarding real estate expenditure, carbon footprints, and supply chain throughput speed. As urban land prices escalate, enterprise logistics engineering has shifted decisively from horizontal warehouse footprint extension to vertical high-density expansion. High Bay Pallet Racking (HBPR) and Automated Storage and Retrieval Systems (ASRS) represent the apex of structural storage engineering, allowing vertical storage thresholds reaching up to 40 meters.

As a premiere China Top High Bay Pallet Racking Supplier & Exporter, IronMax Storage Solutions Co., Ltd. integrates advanced metallurgical engineering, cold-roll forming precision, and comprehensive finite element structural modeling (FEA) into every installation. High bay racking structures must endure severe dynamic forces—including crane horizontal braking acceleration, wind loads in Clad-Rack structures, thermal movements, and seismic spectral accelerations. Achieving safety requires rigid adherence to international standards such as FEM 10.2.02 (ASRS Standards), EN 15512 (European Rack Design Code), RMI (Rack Manufacturers Institute MH16.1), and AS4084-2012 (Australian Steel Storage Racking Code).

Information Gain Insight: Structural safety in high bay racking is determined not merely by static load weight, but by connection rigidity (k-factor), dynamic horizontal deflection limits (L/300 to L/400 for ASRS interfaces), and torsional stability under asymmetric loading conditions.

Our engineering matrix utilizes high-yield structural cold-rolled steel grades, primarily Q235B and Q355B (SS400 / S355 Structural Steel equivalent), featuring multi-profile 11 to 13-fold column geometries. These cold-formed upright profiles provide significantly higher section moduli and torsional stiffness compared to conventional open channel profiles, ensuring complete structural integrity under extreme load stress.

Strategic Procurement Trends in Global Racking Systems

Analyzing key technological and procurement shifts shaping industrial material handling and automated storage infrastructure worldwide.

ASRS & 4-Way Shuttle Convergence

Logistics hubs are rapidly shifting from manual forklift handling toward 4-Way Radio Shuttle ASRS matrixes. Procurement now prioritizes rack profile machining accuracy (±0.5mm tolerances) to guarantee seamless shuttle track transition and automated sensor calibration.

Green Steel & Zero-VOC Coatings

Environmental, Social, and Governance (ESG) mandates are driving global buyers toward suppliers utilizing decarbonized steel and non-toxic, zero-VOC thermoplastic or epoxy powder coatings with high scratch and salt-spray corrosion resistance (ISO 9227 tested).

Sub-Zero Cold Chain Optimization

With global cold chain expansion for pharmaceuticals and frozen food, high-density Mobile Racking and Shuttle Racking engineered with low-temperature notch-toughness structural steels (resistant to hydrogen embrittlement at -30°C) represent the fastest-growing procurement category.

High Bay & Industrial Racking Selection Matrix

Selecting the optimal storage configuration demands balancing volumetric space efficiency, single-pallet selectivity, capital expenditure (CapEx), and operational handling equipment (MHE) integration:

System Type	Max Height (m)	Cubic Space Utilization	Pallet Selectivity	Floor Area Efficiency	MHE Requirement
High Bay ASRS Racking	up to 40m	85% - 92%	100% Direct	Maximum	Automated Stacker Cranes
4-Way Radio Shuttle	up to 25m	80% - 88%	High (by channel)	Very High	Shuttle Carts + Forklifts
VNA (Very Narrow Aisle)	up to 18m	65% - 75%	100% Direct	High	VNA Turret Trucks / Wire-Guided
Motorized Mobile Racking	up to 12m	80% - 85%	100% Direct	Very High	Standard Counterbalance / Reach
Selective Pallet Racking	up to 12m	35% - 50%	100% Direct	Moderate	Standard Reach Truck
Drive-In Racking	up to 12m	65% - 75%	Low (FILO)	High	Reach / Counterbalance Forklifts

IronMax Enterprise Strengths & Manufacturing Capability

Partnering with China's top high bay pallet racking exporter guarantees precision engineering, strict quality control, and full lifecycle project delivery.

Advanced Automated Roll-Forming & Welding

Our production facilities operate continuous automated cold-roll forming production lines equipped with inline optical punch monitoring. Robotic welding cells execute continuous fillet welds on beam connectors and baseplates, eliminating human error and ensuring uniform structural strength across thousands of racking components.

Certified Quality Control & Metallurgical Testing

Every steel batch undergoes rigorous QA verification: spectral material composition analysis, tensile yield strength testing (ASTM A36/A572 equivalent), ultrasonic weld inspection, and electrostatic coating thickness gauge audits (minimum 60-90 microns dry film thickness).

Turnkey Layout Engineering & FEA Modeling

Our in-house structural engineering department provides complimentary 2D CAD floor layouts, 3D BIM models, and comprehensive ANSYS FEA structural loading reports. We verify seismic displacement factors, upright buckling resistance, and beam deflections before fabrication begins.

Export Packaging & Global Project Logistics

Components are systematically bundled using protective steel corner guards, high-density polyethylene wrapping, and specialized steel cradle skids. Our logistics engineers calculate container weight distribution to ensure safe, undamaged international transit and efficient site unloading.

Purchasing & Engineering FAQ

Essential answers regarding engineering specifications, structural safety, international compliance, and custom manufacturing.

What load capacities can IronMax high bay pallet racking systems support?

Standard selective and high bay beam levels are engineered to support loads ranging from 1,000 kg up to 4,500 kg per beam pair. Heavy-duty custom profiles can accommodate up to 6,000 kg per level. Upright frame capacities exceed 30,000 kg depending on beam pitch and elevation requirements.

How does IronMax ensure structural safety in seismic zones?

We design structural configurations compliant with regional seismic codes (such as US RMI/IBC and European EN 16681). Our engineers adjust baseplate floor anchor dimensions, increase section thickness, add vertical/horizontal bracing towers, and calculate dynamic spectral response curves to prevent catastrophic structural collapse during earthquakes.

What is the advantage of welded flared channel wire mesh decking over wood or steel panels?

Flared channel wire mesh decking provides superior safety performance: it permits overhead sprinkler water penetration in accordance with NFPA 13 fire codes, prevents dust accumulation, improves warehouse lighting visibility, and self-locates onto box beams without requiring hardware fasteners.

What tolerance levels are required for High Bay ASRS Racking installations?

High Bay ASRS racking requires strict manufacturing tolerances (EN 15620 / FEM 9.831 Class 100 to 300). Column plumbness must be within ±1mm per 3 meters of height, and beam level elevations across crane aisles are maintained within ±2mm to guarantee reliable automated stacker crane operations.

Which surface finish should I select: Powder Coating or Hot-Dip Galvanizing?

Epoxy powder coating is ideal for climate-controlled, dry indoor warehouses, offering broad color customization for safety zoning. Hot-Dip Galvanizing (HDG) is strongly recommended for sub-zero cold storage facilities, outdoor installations, and high-humidity chemical environments due to its self-healing zinc sacrificial anodic protection.

Do you provide site installation and engineering support overseas?

Yes. Every export shipment includes detailed 3D assembly drawings, column anchoring positioning maps, and structural torque specifications. For major industrial projects, IronMax dispatches certified installation supervision engineers to oversee local rigging crews and verify final structure plumbness.

Ready to Optimize Your Warehouse Vertical Density?

Connect directly with our senior racking structural engineers. Send your CAD site plan, pallet dimensions, and operational requirements for a complimentary layout proposal and factory-direct quotation within 24 hours.
