1. The Physics and Strategic Value of FIFO (First-In, First-Out) Pallet Storage
In modern industrial logistics, inventory velocity and batch control dictate operational profitability. **First-In, First-Out (FIFO)** warehouse racking is engineered to ensure that the earliest pallet loaded into a system is guaranteed to be the first pallet retrieved. This inventory management methodology is critical for industries handling perishable goods, pharmaceutical products, fast-moving consumer goods (FMCG), cold storage logistics, and high-value materials subject to engineering revision changes or shelf-life degradation.
Unlike standard **Selective Racking**—which yields 100% immediate accessibility at the cost of high aisle space consumption—or **LIFO (Last-In, First-Out) Drive-In systems**—which maximize floor density but trap older inventory behind newer arrivals—FIFO structural architectures balance maximum volumetric efficiency with rigid batch rotation discipline. As leading OEM structural steel racking manufacturers in Shandong, China, our engineering team designs structural FIFO frameworks that mitigate honeycombing, eliminate stock obsolescence, and increase cube utilization by up to 85% compared to standard floor stacking.
Achieving structural FIFO requires a dual-access design: dedicated loading aisles on the entry side and dedicated picking aisles on the exit side. This physical separation prevents internal traffic congestion, optimizes forklift travel paths, and establishes a natural, unidirectional throughput stream within automated and semi-automated distribution hubs.
Key Mechanics of Industrial FIFO Racking Systems
Dynamic FIFO storage relies on physical force—either **gravity flow rollers** or **motorized autonomous radio shuttles**—to push palletized goods forward along an inclined structural steel lane or guided track:
Live Gravity Pallet Flow
Utilizes precision-pitched wheel tracks (3-4% slope) equipped with dynamic speed controllers and magnetic centrifugal brakes to smoothly roll heavy loads toward the discharge face.

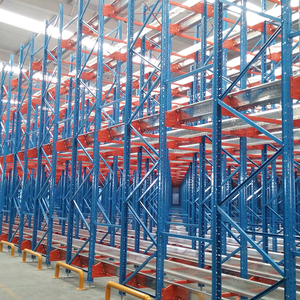

Automated 4-Way Radio Runner
Employs lithium-battery-driven robotic shuttles operating within high-density deep channels. Commands execute via Wi-Fi/RF to transport pallets autonomously to the front aisle.
Drive-Through Heavy Racking
Designed with continuous structural channels allowing forklifts to enter from the rear loading face and drive through to exit at the front picking face without reversing.
2. Technical Comparison Matrix: FIFO vs. Alternative Storage Paradigms
Procurement directors and warehouse operations experts must evaluate key engineering parameters before committing CAPEX to high-density storage infrastructure. Below is a side-by-side technical evaluation comparing industrial storage modalities engineered by IronMax Storage Solutions Co., Ltd.
| Racking Architecture | Storage Flow Mode | Volumetric Density | Selectivity Ratio | Forklift Travel Time | CAPEX / Pallet Position | Ideal Inventory Profile |
|---|---|---|---|---|---|---|
| Pallet Live Flow Racking | Strict FIFO | 85% (High) | Medium (Per Lane) | Minimal (Aisle Only) | High (Mechanical Rollers) | High-velocity FMCG, Cold Storage, Perishables |
| Automated Radio Shuttle | FIFO & LIFO Configurable | 90% (Maximum) | Medium (Per Channel) | Ultra-Low (Automated) | Medium-High (Shuttle Units) | Raw Materials, Bulk SKUs, Sub-Zero Freezers |
| Selective Pallet Racking | Random Access (FIFO Capable) | 40% (Standard) | 100% (Immediate) | High (Deep Aisle Travel) | Low (Structural Steel Only) | High SKU Variety, Low-Volume Batches |
| Drive-Through Racking | Strict FIFO | 75% (High) | Low (Per Lane) | Moderate (Internal Drive) | Low-Medium | Uniform Heavy Batch Cargo, Seasonal Goods |
| Push Back Racking | Strict LIFO | 70% (Medium-High) | Medium (Per Bay) | Low (Staging Aisle) | Medium (Cart Systems) | Non-perishable Medium SKU Buffer Storage |
*Data calculated based on typical 10,000 sqm warehouse footprint with 10m clear ceiling height under standard EN 15512 structural loading conditions.
3. Structural Engineering Standards & Manufacturing Integrity in China
When sourcing heavy-duty pallet racking from Chinese factories, engineering compliance and material traceability form the bedrock of operational safety. Sub-standard cold-formed profiles or unverified steel grades risk structural buckling, beam deflection, and catastrophic rack collapse under dynamic seismic or forklift impact loads.
Raw Material Selection: Q235B vs. Q355B Cold-Rolled Steel
IronMax Storage Solutions Co., Ltd. utilizes structural steel sourced exclusively from top-tier state-owned mills (such as Baosteel and Shougang). For high-load upright frames exceeding 8,000 mm in height or beam spans supporting over 3,000 kg per level, we engineer profiles using **Q355B (equivalent to European S355JR / ASTM A572 Grade 50)** high-tensile steel. This delivers a yield strength exceeding 355 MPa, allowing for reduced material tare weight while vastly increasing structural fatigue resistance under repeated loading cycles.
International Standards Adherence
Our turnkey OEM manufacturing process strictly adheres to global structural design codes:
- FEM 10.2.02 / EN 15512: European design standards for cold-formed steel adjustable pallet racking, governing lateral stability and frame stiffness calculations.
- ANSI MH16.1 (RMI): Specification for the Design, Testing, and Utilization of Industrial Steel Storage Racks in North America.
- AS 4084-2012: Australian Standard for Steel Storage Racking, ensuring structural performance under localized structural stress.
Advanced Surface Coatings: Powder Coating vs. Hot-Dip Galvanization
Environmental factors heavily dictate structural coating selection. Dry ambient distribution centers utilize our 60–80 micron **thermosetting epoxy-polyester powder coating**, electrostatically applied and cured at 200°C for superior scratch and chemical resistance. Conversely, for humid, coastal, or sub-zero cold chain freezers operating down to -30°C, we supply **Hot-Dip Galvanized (HDP) steel components according to ISO 1461**, providing a zinc coating thickness of 65–85 microns for multi-decade corrosion immunity.
4. Future Procurement Trends in Industrial FIFO Racking (2025–2030)
As global supply chains navigate labor shortages, rising land costs, and ESG (Environmental, Social, and Governance) mandates, procurement strategies for warehouse infrastructure are shifting rapidly toward intelligent, automated, and sustainable solutions. China's top racking factories are leading this transformation through several core engineering advancements:
1. Autonomous 4-Way Radio Fleet Integration
Transitioning from traditional 2-way radio shuttles to intelligent 4-way omnidirectional shuttles capable of cross-aisle travel via embedded lift mechanisms, fully automated by WCS software.
2. Structural IoT Load & Impact Monitoring
Embedding wireless strain gauges and accelerometers into upright frame bases to provide real-time cloud telemetry on frame deformation, seismic oscillation, and forklift impact strikes.
3. Green Steel & Net-Zero Manufacturing
Procuring low-carbon recycled steel billets and replacing fossil-fueled curing ovens with solar-powered electric powder lines to reduce Scope 3 carbon footprints for global enterprise clients.
Procurement teams prioritizing ROI must evaluate total cost of ownership (TCO) rather than baseline FOB unit prices. Integrating high-density automated FIFO shuttle racking reduces forklift fleet requirements by up to 40% and cuts warehouse energy overhead in temperature-controlled spaces by preserving cold air containment.
5. IronMax Storage Solutions: Premier OEM Racking Factory in China
Headquartered in Jining, Shandong Province, **IronMax Storage Solutions Co., Ltd.** operates a state-of-the-art 50,000 sqm production facility engineered for heavy-duty structural steel manufacturing. Equipped with 16 continuous automatic cold-roll forming lines, robotic welding stations, and high-speed powder coating systems, we deliver scalable storage hardware to distributors, EPC integrators, and logistics operators across 60+ countries.
Why Overseas Buyers Partner with IronMax
- Rapid Engineering Proposal Turnaround: Our in-house CAD and 3D BIM structural engineers generate complete warehouse layout designs, static load calculations, and structural simulations within 24 hours of receiving building blueprints.
- Strict Quality Control Protocols: From raw steel spectrographic analysis to ultrasonic weld inspections and coating cross-hatch adhesion tests, every production lot is documented with full factory inspection certificates (MTC).
- Export-Optimized Protective Packaging: Upright profiles and box beams are wrapped in anti-abrasion protective film, steel-strapped onto custom heavy-duty pallets, and loaded into ocean containers using specialized alignment jigs to prevent transit damage.
- Comprehensive On-Site & Remote Support: Orders include step-by-step 3D assembly manuals, detailed component schematics, and direct video support from structural engineers. On-site installation supervisors are available for multi-tier projects worldwide.
6. Comprehensive Procurement & Engineering FAQ
What is the optimum pitch slope for live gravity FIFO flow racking?
The standard incline gradient for gravity pallet flow racking is set between 3.5% and 4.0% (approximately 35–40 mm drop per meter of lane length). This pitch is mathematically engineered to overcome static friction for pallets weighing between 500 kg and 1,500 kg while keeping velocity under control via magnetic brake rollers installed along the flow channel.
How do automated radio shuttles switch between FIFO and LIFO modes?
Operation mode is controlled via software on the hand-held RF remote or central WMS system. In FIFO mode, pallets are loaded from the rear entrance aisle; the shuttle lifts the pallet, transports it to the front-most available position, and returns. Forklifts retrieve goods exclusively from the front picking aisle. Switching to LIFO mode allows loading and unloading from a single aisle face.
What beam deflection limits are allowed under EN 15512 / FEM standards?
Under European EN 15512 specifications, the maximum allowable vertical beam deflection under full design load must not exceed L/200 (where L is the clear span length of the beam). For example, a 2,700 mm beam level loaded to its rated 3,000 kg limit can deflect a maximum of 13.5 mm at center span.
Can IronMax pallet racking be installed in high-seismic zones?
Yes. Our engineering team conducts Finite Element Analysis (FEA) simulations to design reinforced base plates, heavy-duty anchor bolts, custom frame bracing geometry, and enlarged footings tailored to your site's specific peak ground acceleration (PGA) seismic coefficient requirements.
What pallet quality is required for gravity flow dynamic racking?
Gravity flow systems require rigid, undamaged wooden or steel pallets with clean bottom runner boards free of missing wood or exposed fasteners. Defective bottom runners can cause uneven friction, causing pallets to twist or stall mid-lane. Slave pallets or steel runner runners are recommended for soft plastic pallets.
What is the typical manufacturing lead time for container orders?
Standard manufacturing lead time for standard powder-coated selective or shuttle racking systems is 15 to 20 days upon layout approval and deposit confirmation. Hot-dip galvanized or custom-rolled high-bay projects typically ship within 25 to 30 days.
